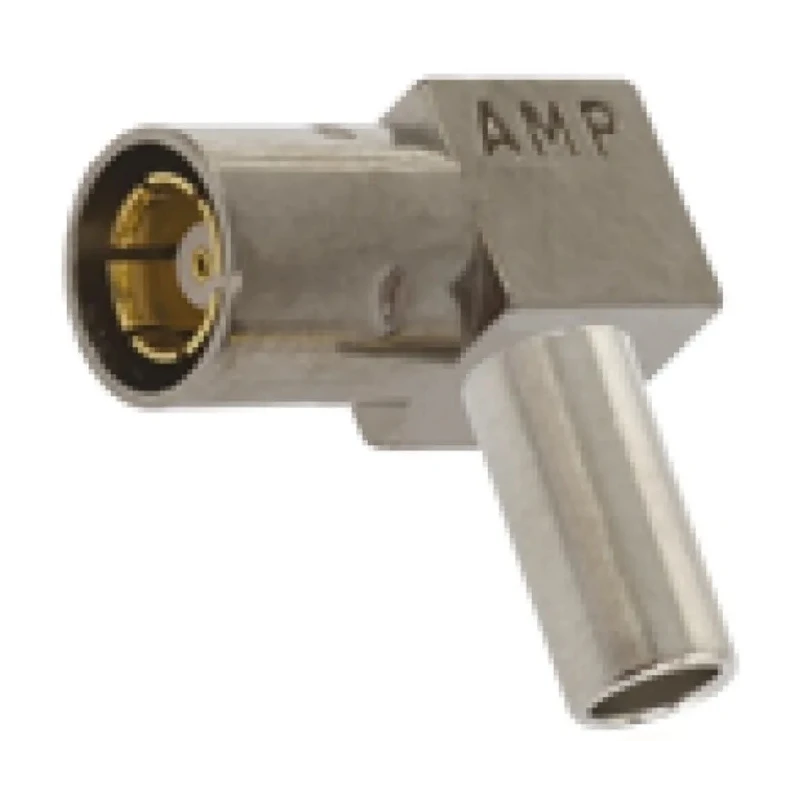

TE Connectivity SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body Crimp 5414363-4
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Nickel |
Key Features
- Subminiature design ideal for space-restricted applications.
- Excellent electrical performance from DC to 4 GHz.
- Snap-on coupling allows quick connect and disconnect.
- Crimp terminated center contacts enable fast cable assembly.
- Compatible with RG174, RG188, and RG-316 cable types.
- Nickel-plated body for durability and corrosion resistance.
- Gold over nickel contact plating ensures reliable conductivity.
- Operates reliably between -65°C and 165°C.
Product Description
TE Connectivity 5414363-4 SMB Series Coaxial Connector Cable is a high-performance male SMB coaxial connector designed for use with RG174, RG188, and RG-316 cables. It features a subminiature, space-saving design suitable for applications where limited space and weight are critical. The connector maintains a constant 50 Ω impedance, providing excellent electrical performance from DC up to a maximum operating frequency of 4 GHz.
The nickel-plated body offers robust mechanical strength and resistance to corrosion, while the gold over nickel-plated brass contacts guarantee superior conductivity and signal integrity. A snap-on coupling provides quick connect and disconnect capabilities, ideal for field installations. The crimp termination type and male contact gender allow for fast and cost-efficient cable assembly, reducing termination costs significantly.
This SMB coaxial connector supports normal polarity with a right angle body orientation, enhancing flexibility in cable routing in compact setups. It is engineered to operate reliably within a temperature range of -65°C to 165°C, making it suitable for various industrial and electronic equipment environments.
Applications for the TE Connectivity 5414363-4 SMB Coaxial Connector include GPS devices, antennas, telephony systems, base stations, radio boards, CATV, and PC/LAN connectivity, where space-saving and high-frequency performance are essential.
Subminiature space-saving design. Excellent electrical performance from DC to 4 GHz. Snap-on coupling enables quick connect and disconnect. Crimp terminations reduce assembly time and cost. Compatible with multiple coaxial cable types: RG174, RG188, RG-316.
Durable nickel-plated body for enhanced longevity. High-quality gold over nickel contact plating for signal reliability. Wide operating temperature range from -65°C to 165°C. Right angle orientation for flexible installation.
This product is ideal for electronic, communication, industrial, and laboratory applications requiring reliable RF coaxial connectivity in compact environments. Browse further TE Connectivity connectors and related coaxial components in the EnvMart Electronics & Electricals section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, providing excellent electrical performance from DC to this frequency.
This model is compatible with RG174, RG188, and RG-316 cable types, allowing for versatile applications.
The connector maintains a constant impedance of 50 Ω, ensuring reliable signal integrity.
It operates reliably within a temperature range of -65°C to 165°C, making it suitable for various environments.
This connector features a crimp termination type, which allows for fast and cost-efficient cable assembly.
The connector has a right angle orientation, which enhances flexibility in cable routing in compact setups.
The contacts are made of brass and are plated with gold over nickel to ensure reliable conductivity and signal integrity.
The body of this model is nickel-plated, providing durability and corrosion resistance.
It is suitable for applications including GPS devices, antennas, telephony systems, base stations, radio boards, CATV, and PC/LAN connectivity.
This connector is classified as a standard size, making it suitable for a wide range of applications.
The country of origin for this connector is India.
The contact gender of this connector is male, which is typical for SMB connectors.
