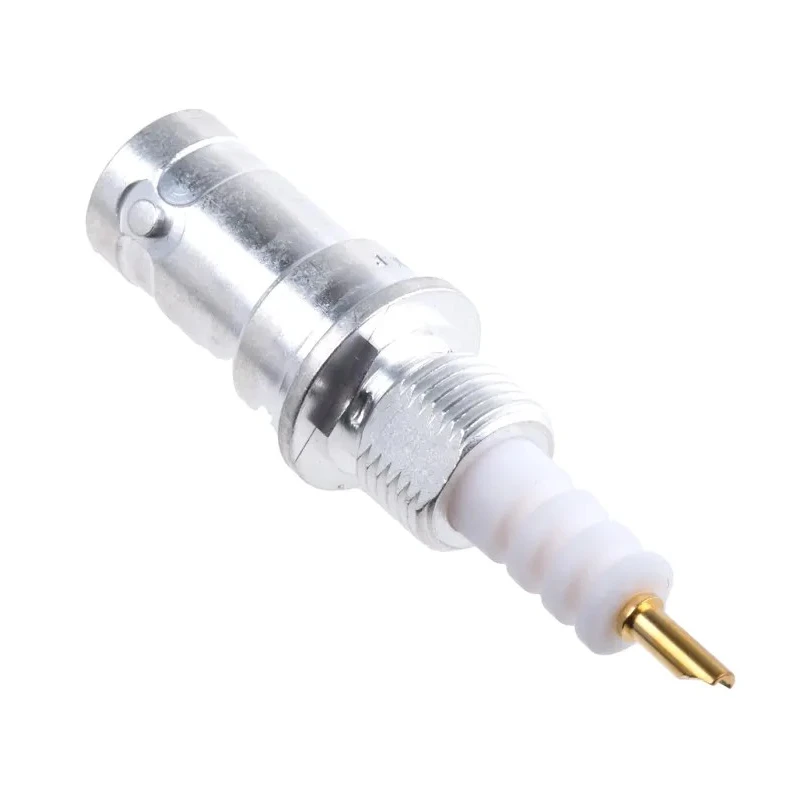

TE Connectivity Coaxial Connector Panel Mount Female SHV Straight Body Solder 5051494-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 0.3GHz |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Female |
| Coaxial Connector Type | SHV |
| Body Plating | Silver |
Key Features
- Designed for high-voltage applications up to 5,000 volts DC.
- Panel mount type with female connector gender.
- Body plated in silver with gold-plated beryllium copper alloy contacts.
- Operating frequency of 0.3 GHz suitable for coaxial cable connections.
- Wide temperature range from -65°C to 165°C for versatile environmental conditions.
- Features polarized recessed center contacts for safety and reliability.
- Bayonet locking coupling provides secure connection similar to BNC connectors.
- Termination type is solder ensuring durable and stable electrical contacts.
Product Description
TE Connectivity 5051494-1 Coaxial Connector Panel Mount Female SHV is a straight body solder-type coaxial connector designed for panel mounting applications. It provides reliable shielded disconnects for high-voltage use up to 5,000 volts DC, making it ideal for industrial, laboratory, and electronic equipment requiring robust RF connectivity.
This SHV connector features a panel mount design with a female connector interface and male contacts that are recessed within a dielectric to prevent accidental contact. The body is plated with silver while the contacts are made from beryllium copper alloy with gold plating to ensure excellent conductivity and corrosion resistance.
Operating at a frequency of 0.3 GHz, this connector supports standard coaxial cables for signal integrity. It performs reliably within a wide temperature range starting from -65°C to a maximum of 165°C, suitable for demanding environmental conditions.
The connector includes a bayonet locking coupling mechanism akin to BNC connectors but is specifically keyed to avoid inter-mating with standard bayonet connectors, adding an extra layer of safety. The grounding and termination are achieved via soldering, ensuring robust mechanical and electrical connections.
Produced in Mexico, this TE Connectivity coaxial connector meets industrial standards and is used extensively in telecommunications, aerospace, military, test and measurement, and other high-voltage applications.
Designed for high-voltage applications up to 5,000 volts DC. Panel mount with female connection and straight body orientation. Silver-plated body and gold-plated beryllium copper alloy contacts for durability. Operates at 0.3 GHz frequency for standard coaxial cables.
Temperature range from -65°C to 165°C for varied environments. Polarized recessed center contacts reduce accidental contact risk. Bayonet locking coupling ensures secure and safe connections. Solder termination type for reliable contact stability.
Manufactured in Mexico, reflecting quality and compliance.
This TE Connectivity Coaxial Connector is trusted in multiple industries for ensuring reliable electrical connections in sensitive high-voltage environments. Explore more Coaxial Connectors and connectors on EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector is designed for high-voltage applications up to 5,000 volts DC.
It operates at an operating frequency of 0.3 GHz, suitable for standard coaxial cable connections.
The connector can operate within a wide temperature range from -65°C to 165°C, making it suitable for various environmental conditions.
The termination type for this connector is solder, ensuring stable and durable electrical contacts.
The contacts are made from beryllium copper alloy and are gold-plated to enhance conductivity and corrosion resistance.
It features a bayonet locking coupling mechanism, providing a secure connection similar to BNC connectors while preventing accidental disconnection.
This model has a female connector gender, designed for panel mounting applications.
This connector is produced in Mexico, reflecting quality and compliance with industrial standards.
The body of the connector is plated in silver, which contributes to its conductivity and corrosion resistance.
It is extensively used in telecommunications, aerospace, military, and test and measurement applications requiring high-voltage connectivity.
Yes, it features polarized recessed center contacts to reduce the risk of accidental contact, enhancing safety during use.
This model is classified as an SHV (Super High Voltage) coaxial connector, suitable for high-voltage applications.
