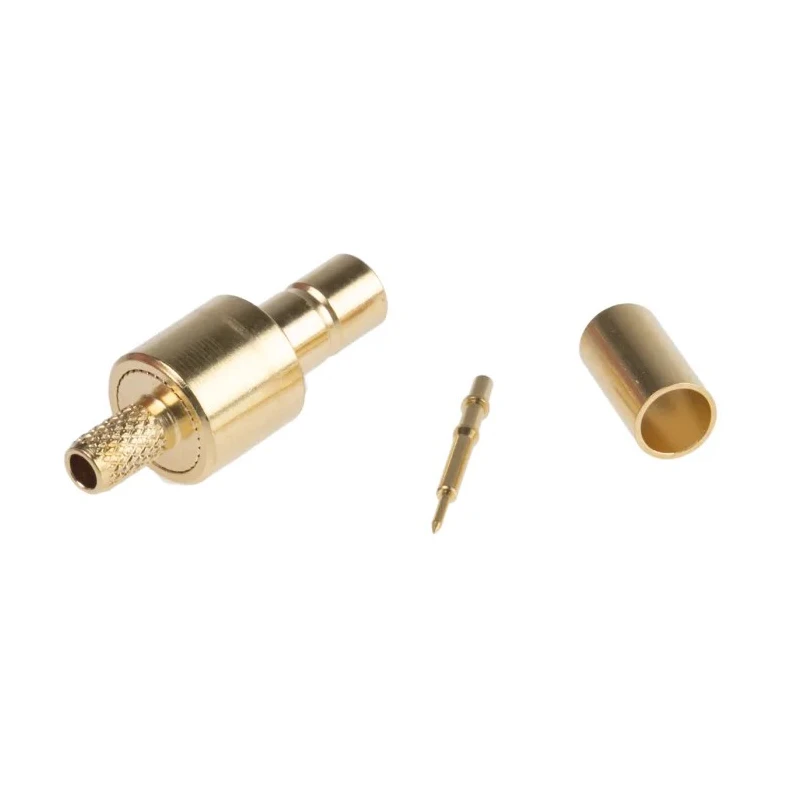

Telegartner SMB Series Coaxial Connector Cable Male SMB 50 Ω Straight Body Crimp J01160A0401
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01160A0401 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG-174U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Copper Nickel Gold Alloy |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Connector type SMB with 50 ohm impedance.
- Cable mount type compatible with RG-174U, RG188A/U, and RG316/U cables.
- Gold body plating ensures corrosion resistance.
- Operating frequency up to 4 GHz supports high-frequency applications.
- Suitable for operating temperatures from -65°C to 165°C.
- Termination by crimp method guarantees secure cable connection.
- Beryllium copper contact material with copper nickel gold alloy plating for durability.
- Straight orientation male connector suitable for cable assemblies.
Product Description
Telegartner J01160A0401 SMB Series Coaxial Connector Cable is a high-quality male SMB coaxial connector designed to operate efficiently in RF applications supporting frequencies up to 4 GHz. With a 50 Ω impedance and straight body orientation, this connector is ideal for use with RG-174U, RG188A/U, and RG316/U cables, ensuring robust signal transmission in demanding electronic environments.
The cable mount connector features gold plating on the body for corrosion resistance and comes with beryllium copper contacts plated with a copper nickel gold alloy, providing excellent conductivity and mechanical strength. It operates reliably within a temperature range of -65°C to 165°C, making it suitable for diverse industrial, electronic, and telecommunications applications.
The termination type is crimp, offering a secure and stable connection. This SMB connector from Telegartner adheres to standard specifications and is manufactured in Germany, ensuring high product quality and performance.
The connector is normally polarized and designed as a male connector, fitting seamlessly into complementary female components in circuit assemblies. Connector type SMB with 50 ohm impedance. Cable mount type compatible with RG-174U, RG188A/U, and RG316/U cables.
Gold body plating ensures corrosion resistance. Operating frequency up to 4 GHz supports high-frequency applications. Suitable for operating temperatures from -65°C to 165°C. Termination by crimp method guarantees secure cable connection.
Beryllium copper contact material with copper nickel gold alloy plating for durability. Straight orientation male connector suitable for cable assemblies. Manufactured in Germany to high quality standards.
This coaxial connector cable is well-suited for industrial electronics, telecommunications installations, laboratory instrumentation, and other high-frequency signal transmission requirements where performance and reliability are paramount.
Explore our broad selection of Coaxial Connectors and related components for your specialized electronic projects and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency applications.
This SMB connector is compatible with RG-174U, RG188A/U, and RG316/U cables, ensuring robust signal transmission.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
This model operates reliably within a temperature range of -65°C to 165°C, suitable for various industrial and electronic applications.
The connector uses a crimp termination method, which guarantees a secure and stable connection.
The contact material is beryllium copper, which is plated with a copper nickel gold alloy for enhanced conductivity and mechanical strength.
This connector has a straight orientation, which is designed for seamless integration into cable assemblies.
This connector is manufactured in Germany, adhering to high quality standards.
This model features a male connector gender, suitable for fitting into complementary female components.
The body of this connector is plated with gold, which ensures corrosion resistance.
Yes, this connector is normally polarized, ensuring correct alignment when connecting to complementary components.
This connector is classified as a standard size, making it compatible with various applications and installations.
