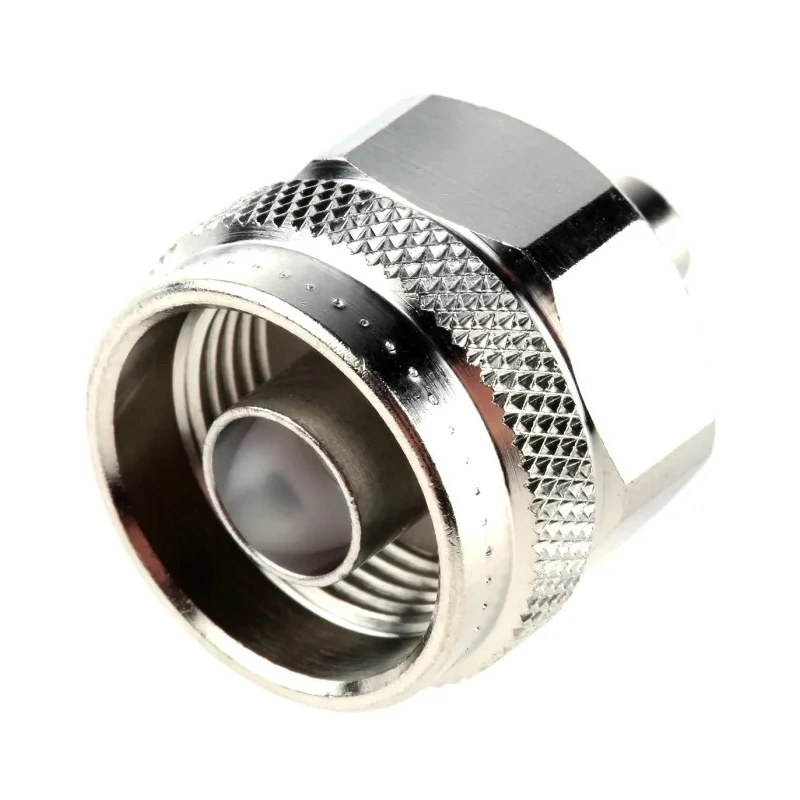

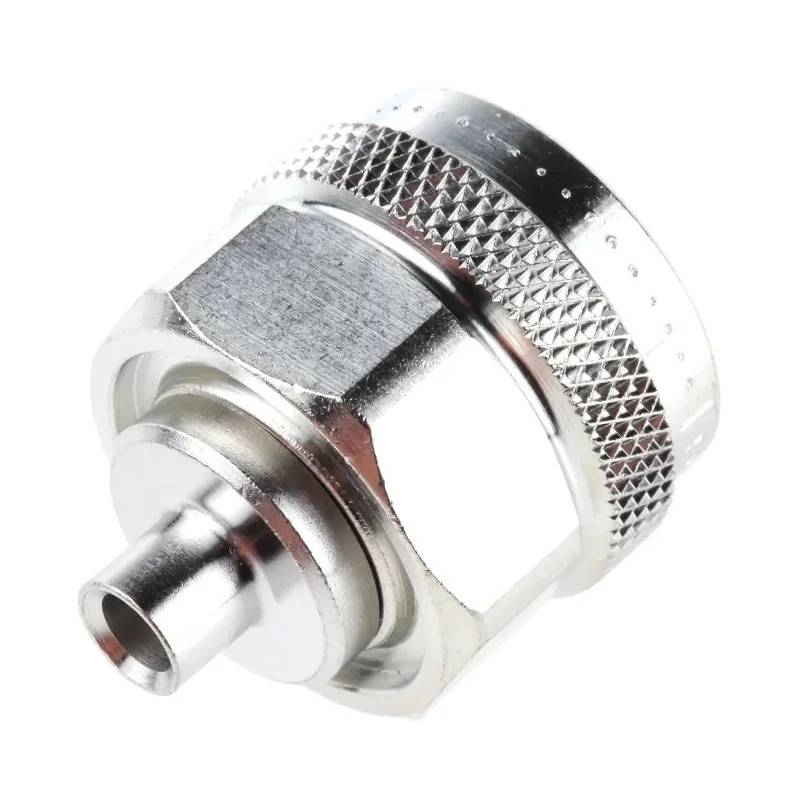

Telegartner N Series Coaxial Connector Cable Male N Connector 50 Ω 11GHz Straight Body Solder J01020A0109
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01020A0109 |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | N |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | UT141 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | N Connector |
| Body Plating | Copper Nickel Alloy |
Key Features
- This N Series connector offers 50 Ω impedance and supports operating frequencies up to 11GHz.
- The connector features a straight body orientation with a male gender design.
- Constructed with a copper nickel alloy plated body for corrosion resistance.
- Contact components use beryllium copper material with silver plating to ensure optimal conductivity.
- Suitable for use in demanding environmental conditions with operating temperatures from -65°C to 165°C.
- The termination type is solder, designed for secure cable attachment.
- This component originates from Germany, ensuring high manufacturing standards.
Product Description
Telegartner J01020A0109 is a precision RF Coaxial Connector from the N Series designed for cable mounting applications. This male connector provides a stable 50 Ω impedance and is built to support high-frequency signal transmission up to 11GHz, making it suitable for advanced electronics and communication systems requiring minimal signal loss and interference.
The connector features a straight body orientation with a standard size to ensure compatibility with common coaxial cables, specifically the UT141 type. The robust construction includes a copper nickel alloy plated body, offering excellent durability and resistance to corrosion in industrial and laboratory environments.
The contact mechanism utilizes beryllium copper material with silver plating, delivering superior electrical performance and mechanical strength. Designed for solder termination, it ensures a secure and lasting connection to cables in various assembly processes.
Operating temperature ranges from -65°C to 165°C, enabling reliable function in harsh operating conditions such as industrial automation, telecommunications, and test equipment markets. This connector is ideal for users requiring both reliability and precision in demanding RF applications.
This N Series connector supports 50 Ω impedance with a straight male configuration. High frequency capability up to 11GHz for advanced RF signal transmission. Durable copper nickel alloy plated body for corrosion resistance.
Beryllium copper contacts with silver plating for excellent conductivity. Wide operating temperature range from -65°C to 165°C. Solder termination type for reliable cable termination. Manufactured in Germany ensuring quality and precision.
Telegartner connectors, including this J01020A0109 model, are highly regarded in Electronics Components and RF connectivity categories. Explore EnvMart for more connectors and precision cabling solutions from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a stable impedance rating of 50 Ω, suitable for RF applications.
It supports operating frequencies up to 11GHz, making it suitable for high-frequency signal transmission.
The body is made from a copper nickel alloy for corrosion resistance, while the contacts are beryllium copper with silver plating for optimal conductivity.
It operates effectively within a temperature range of -65°C to 165°C, suitable for demanding environmental conditions.
This connector features a solder termination type, designed for secure cable attachment.
It is specifically designed for compatibility with UT141 coaxial cables.
This model has a male gender design with a straight body orientation.
It is manufactured in Germany, ensuring high manufacturing standards.
The contact components are made from beryllium copper, which is known for its excellent electrical performance.
The body of this connector is plated with a copper nickel alloy for enhanced durability and corrosion resistance.
It is suitable for use in industrial automation, telecommunications, and test equipment markets due to its reliable performance in harsh conditions.
It is classified as a standard size connector, ensuring compatibility with common coaxial cable systems.
