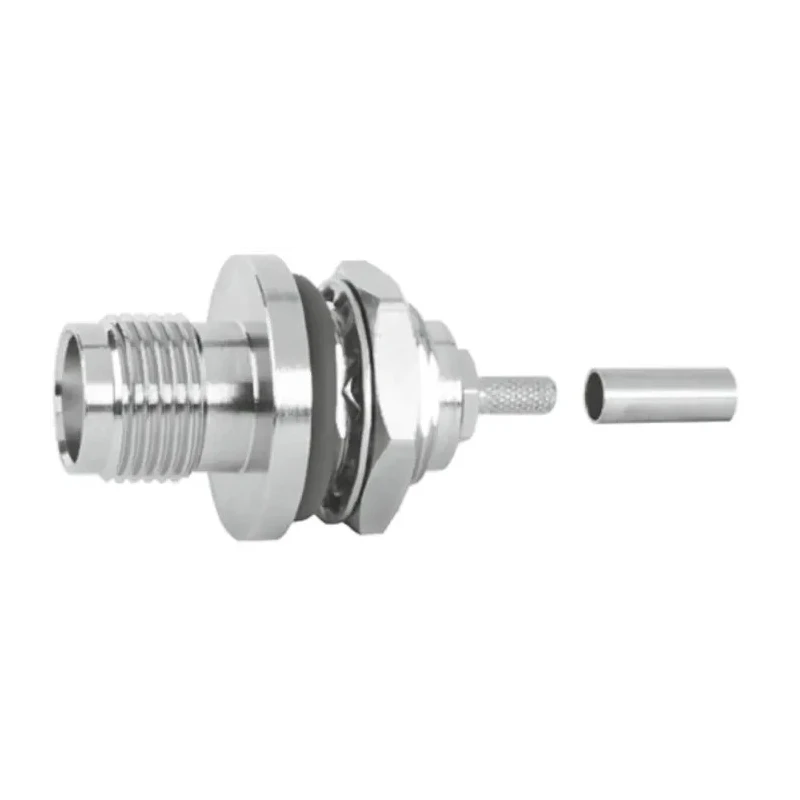

Telegartner TNC Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Solder J01011A0058

Telegartner J01011A0058 is a high-performance TNC Series Coaxial Connector designed for panel mounting applications. It features a female connector with a straight body and 50 Ohm impedance, optimized for reliable RF signal transmission up to 11GHz. Termination is via soldering, providing robust and durable electrical contact.

Constructed with precision, this connector uses beryllium copper for the contacts and is plated with a copper nickel gold alloy, offering excellent conductivity and corrosion resistance. The nickel-plated body ensures mechanical strength and longevity in demanding industrial environments. It is suitable for cable types RG316/U, RG188A/U, and RG-174U.

The panel mount bulkhead design facilitates easy and secure installation on various equipment panels. This connector performs reliably across a broad temperature range from -65°C to 165°C, making it ideal for harsh environmental conditions encountered in industrial, telecommunications, and electronic testing applications.

The TNC connector series is widely used in RF coaxial systems and is well-known for its threaded coupling mechanism that ensures vibration resistance and stable connections over time. The normal polarity female contact design adds compatibility with standard male counterparts.

This connector features a panel mount with a bulkhead design for secure fixing. Constructed with beryllium copper contact material plated in copper nickel gold alloy for enhanced conductivity and durability. The body is plated with nickel, providing corrosion resistance and mechanical strength.

Designed to operate reliably in temperatures ranging from -65°C to 165°C. The connector’s polarity is normal, making it compatible with standard coaxial systems. Solder termination type ensures solid and reliable electrical connections.

Suitable for industrial, electronic, and telecommunications applications requiring high-frequency RF connections. Originated from Germany, ensuring high-quality manufacturing standards.

This product is excellent for use in laboratory setups, telecommunications infrastructure, manufacturing installations, and specialized electronic equipment that require stable and high-frequency RF connectors. Its robust construction and high-frequency capabilities ensure that signal integrity is maintained even in challenging environments.
