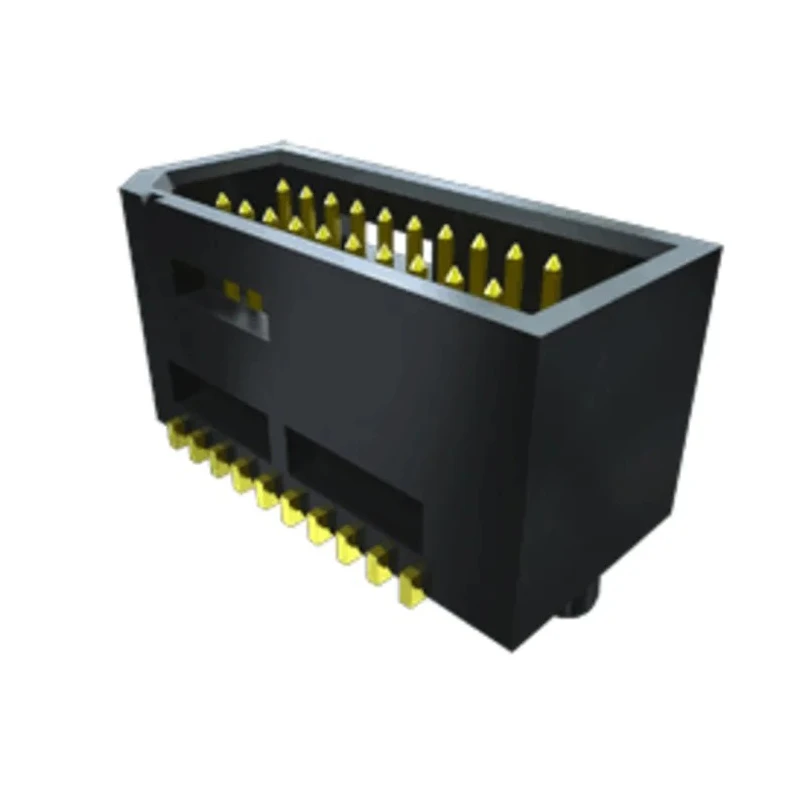

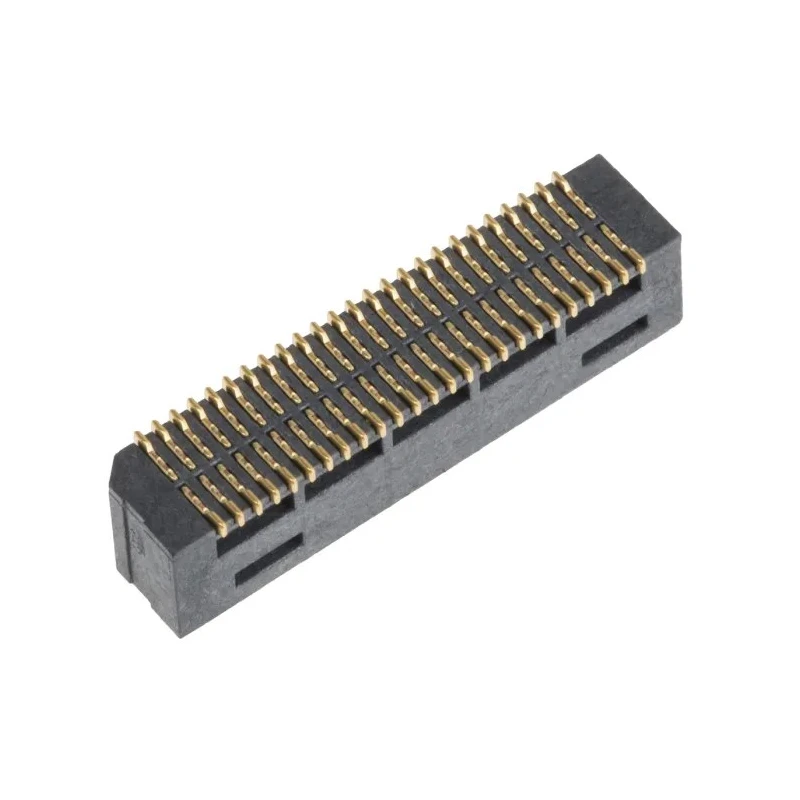

Samtec TEMS Series Straight PCB Socket 50-Contact 2 Row 0.8 mm Pitch Surface Mount TEMS-125-02-03.0-G-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec TEMS Series Straight PCB Socket 50-Contact 2 Row 0.8 mm Pitch Surface Mount TEMS-125-02-03.0-G-D-K-TR

Name: Samtec TEMS Series Straight PCB Socket 50-Contact 2 Row 0.8 mm Pitch Surface Mount TEMS-125-02-03.0-G-D-K-TR
Brand: Samtec
SKU: 218165
Price: 11.89 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	330V
Brand	Samtec
Orientation	Straight
Current	2.6A
Model	TEMS-125-02-03.0-G-D-K-TR
Mount Type	PCB
Special Features	Locking Clip and Weld Tab options available for most rugged requirements
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	TEMS
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	6mm
Contact System	0.31 mm (.012") diameter post
Row Pitch	3.2mm

Key Features

Designed for board-to-board connector applications.
Supports a current rating of 2.6 A and voltage of 330 V.
Constructed from liquid crystal polymer housing material for durability.
Features gold-plated bronze contacts for reliable connectivity.
Provides a stacking height of 6 mm and row pitch of 3.2 mm.
Operates efficiently between -55°C and 125°C temperature range.
Includes locking clip and weld tab options for rugged requirements.
Female contact gender with a 0.31 mm diameter post contact system.

Product Description

Samtec TEMS-125-02-03.0-G-D-K-TR is a high-quality straight PCB socket designed for electronic board-to-board connection systems. It features 50 contacts arranged in 2 rows with a pitch of 0.8 mm, optimized for compact, high-density PCB assemblies. Constructed from durable liquid crystal polymer housing and gold-plated bronze contacts, this socket ensures reliable and stable electrical connectivity.

Capable of carrying a current of 2.6 A and withstanding voltages up to 330 V, this PCB socket is suitable for demanding industrial and commercial electronics applications, including industrial control, telecommunications, and computing hardware. The device supports a wide operating temperature range from -55°C to 125°C, making it suitable for harsh environments.

The socket mounts directly onto the PCB with a surface mount termination type and features a straight, vertical orientation for easy connection with mating Tigers Eye™ contact sockets. Its stacking height is 6 mm, and the row pitch measures 3.2 mm. Special features include locking clip and weld tab options that enhance durability and connection security under rugged conditions.

This product is ideal for industrial electronics manufacturing, assembly plants, and repair of PCB connector systems requiring high integrity and longevity. Its robust material and precise design comply with industry standards, ensuring dependable performance.

Designed for board-to-board connector applications. Supports a current rating of 2.6 A and voltage of 330 V. Constructed from liquid crystal polymer housing material for durability. Features gold-plated bronze contacts for reliable connectivity.

Provides a stacking height of 6 mm and row pitch of 3.2 mm. Operates efficiently between -55°C and 125°C temperature range. Includes locking clip and weld tab options for rugged requirements. Female contact gender with a 0.31 mm diameter post contact system.

Surface mount termination type with straight PCB mount and vertical orientation. Explore more high-quality electronic components and connectors in the PCB Sockets category at EnvMart for your industrial and commercial needs.
