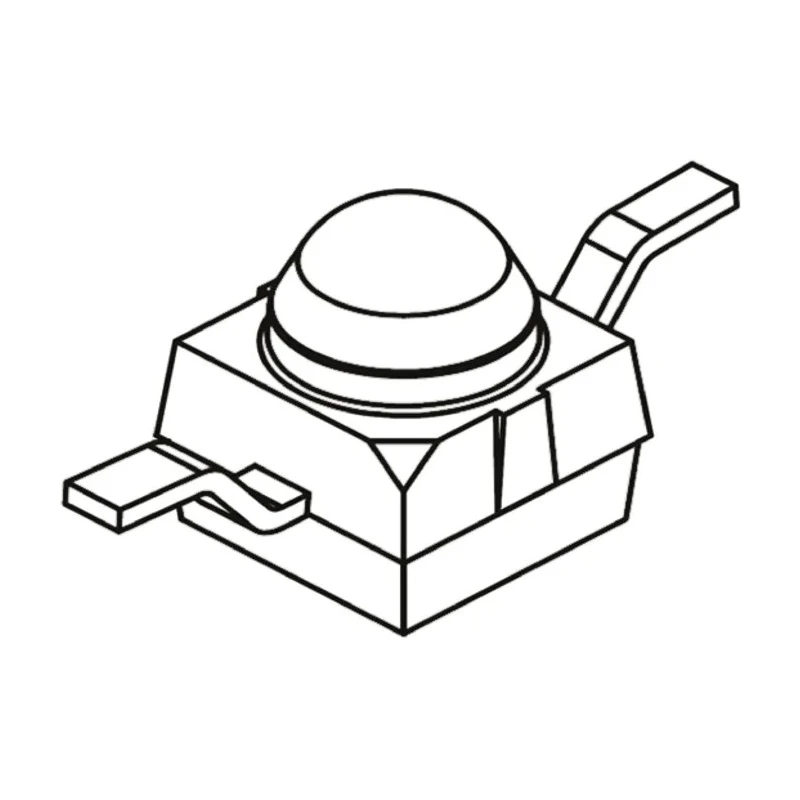

Vishay VSMB 940 nm Infrared LED Subminiature Surface Mount Dome Lens 2.3 x 2.3 x 2.8 mm VSMB2000X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 2.3 x 2.3 x 2.8 mm |
| Model | VSMB2000X01 |
| Packaging | Bulk |
| Mount Type | Surface |
| Series | VSMB |
| Beam angle | 24° |
| Number Of Leds | 1 |
| Package Type | Subminiature |
| Standards/Approvals | JEDEC |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 940nm |
| Radiant Flux | 40mW |
| LED Material | GaAlAs |
| Angle of half intensity | 12° |
| Radiant Intensity | 40mW/sr |
| ams OSRAM Chip LED 860 nm IR LED 0402 Surface packageBrand | ams OSRAM |
Key Features
- Features a dome-shaped lens for precise light emission.
- Compact dimensions of 2.3 x 2.3 x 2.8 mm suitable for space-constrained applications.
- Offers radiant flux of 40 mW and radiant intensity of 40 mW/sr.
- Beam angle of 24 degrees ensuring focused infrared emission.
- Compatible with surface mount technology (SMT) for easy PCB assembly.
- Manufactured with GaAlAs LED material ensuring stability and performance.
- Designed in accordance with JEDEC standards and automotive AEC-Q101 qualification.
- Ideal for IrDA data transmission, light barriers, photointerrupters, optical switches, and shaft encoders.
Product Description
Vishay VSMB2000X01 is an advanced infrared (IR) LED designed for high-speed data transmission and precise sensing applications, featuring a peak wavelength of 940 nm. This subminiature surface mount device comes with a dome-shaped clear plastic lens and compact dimensions of 2.3 x 2.3 x 2.8 mm, making it ideal for integration into miniature and space-constrained assemblies.
The device provides a radiant flux and intensity of 40 mW and 40 mW/sr respectively, with a narrow beam angle of 24 degrees that allows for focused IR light output. Manufactured using gallium aluminium arsenide (GaAlAs) technology, it delivers consistent performance and durability.
Compliant with JEDEC standards and qualified under the AEC-Q101 automotive standard, this LED is highly reliable for industrial and automotive environments. It is compatible with surface mount technology (SMT), simplifying PCB assembly processes.
Common industrial applications include IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switching devices, and shaft encoders, supporting various control and drive circuits.
The product is supplied in bulk packaging to facilitate high-volume manufacturing and assembly lines. Compact subminiature surface mount package with dome lens. Peak wavelength: 940 nm suitable for IR communication. Radiant flux and intensity: 40 mW and 40 mW/sr respectively.
Beam angle of 24° for directional IR emission. Reliable GaAlAs LED semiconductor material. JEDEC and AEC-Q101 approved for quality assurance. Ideal for industrial, automotive, and communication uses. Explore Vishay IR LEDs and other electronic components to meet your industrial and manufacturing design requirements at EnvMart.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 940 nm, making it suitable for IR communication applications.
This model has compact dimensions of 2.3 x 2.3 x 2.8 mm, ideal for space-constrained applications.
It provides a radiant flux of 40 mW and a radiant intensity of 40 mW/sr, ensuring effective light emission.
The beam angle is 24 degrees, allowing for focused infrared emission.
This model is designed for surface mount technology (SMT), facilitating easy PCB assembly.
It is compliant with JEDEC standards and qualified under the AEC-Q101 automotive standard for reliability.
This package contains one LED, designed for precise applications.
The LED features a dome-shaped lens, which aids in precise light emission.
The VSMB2000X01 is supplied in bulk packaging, suitable for high-volume manufacturing and assembly.
This infrared LED has two pins, which are standard for surface mount devices.
