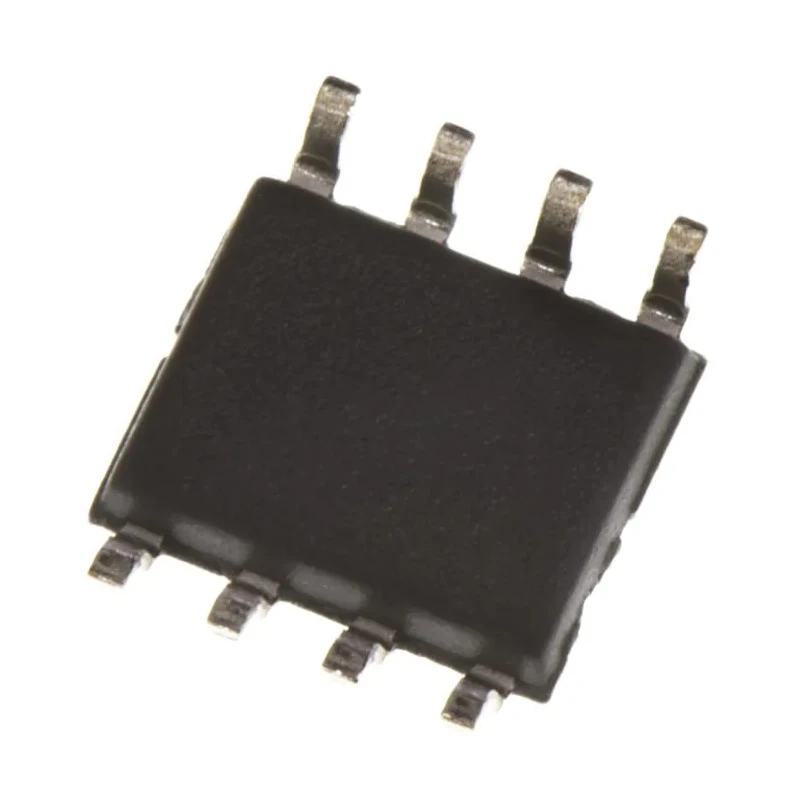

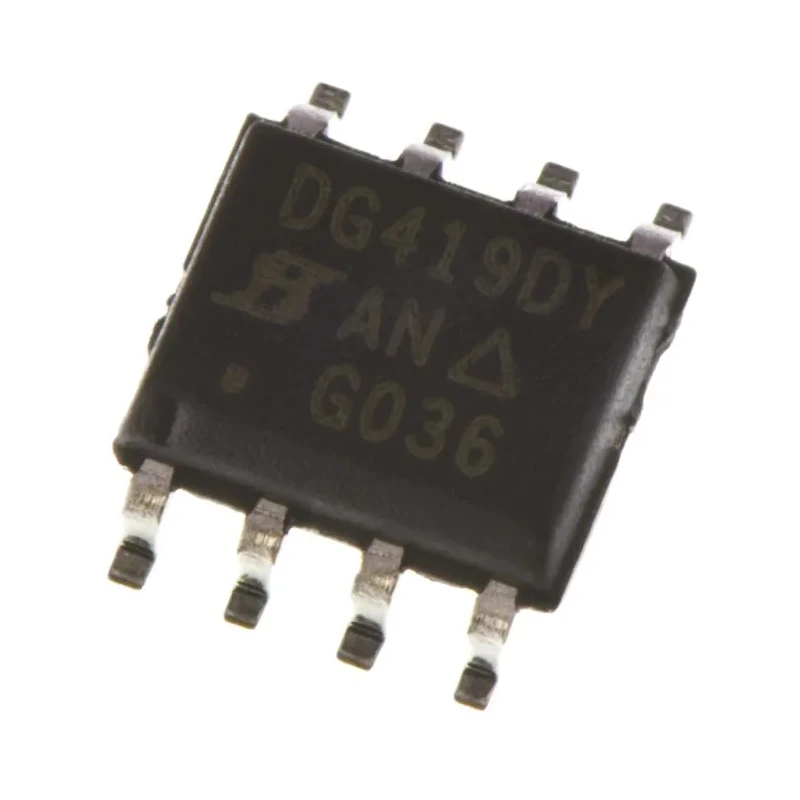

Vishay Analogue Switch 1 CMOS Single SPDT 8-Pin SOIC DG419DY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 5mm |
| Model | DG419DY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG419 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Maximum On State Resistance | 45Ω |
Key Features
- Operates over a wide supply voltage range from 5V to 44V.
- Maximum on-state resistance of 45 ohms ensures controlled signal attenuation.
- CMOS logic family compatible with TTL-level interfaces for seamless integration.
- Single-pole double-throw configuration for versatile analogue signal routing.
- Designed for surface-mount assembly with compact 8-pin SOIC footprint.
- RoHS compliant and meets environmental safety standards.
- Operating temperature range from -40°C to 85°C suitable for industrial use.
- Compact dimensions of 5mm length, 4mm width, and 1.55mm height optimize PCB space.
Product Description
Vishay DG419DY-T1-E3 is a high-performance Analogue Switch designed as a 1 CMOS single SPDT device in an 8-pin SOIC package. It supports operation with supply voltages ranging from 5V up to 44V, making it suitable for a broad spectrum of electronic applications requiring flexible voltage tolerance. The device provides a maximum on-state resistance of 45Ω, facilitating controlled signal attenuation, which is ideal for analogue signal routing in mixed-signal circuits.
This switch utilizes the CMOS logic family ensuring compatibility with TTL-level interfaces and is intended for surface-mount applications, allowing compact and efficient placement on printed circuit boards. Its single-pole double-throw configuration simplifies switching between two output lines, aiding in signal multiplexing tasks.
The product is RoHS compliant and can reliably operate within a thermal range of -40°C to 85°C, suitable for industrial and commercial electronics environments. Its physical dimensions - 5mm in length, 4mm in width, and 1.55mm in height - support integration into space-constrained designs.
Typical applications include analogue signal steering in instrumentation, multiplexing of audio or sensor inputs, mixed-signal controller interfaces, low-voltage power modules, and compact consumer electronic devices relying on surface-mount technology. The device is ideally suited for industrial, laboratory, electronics manufacturing, and consumer electronics assembly environments requiring reliable, efficient analogue signal switching.
Operates over a wide supply voltage range from 5V to 44V. Maximum on-state resistance of 45 ohms ensures controlled signal attenuation. CMOS logic family compatible with TTL-level interfaces for seamless integration. Single-pole double-throw configuration for versatile analogue signal routing.
Designed for surface-mount assembly with compact 8-pin SOIC footprint. RoHS compliant and meets environmental safety standards. Operating temperature range from -40°C to 85°C suitable for industrial use. Compact dimensions of 5mm length, 4mm width, and 1.55mm height optimize PCB space.
Explore more products in the Semiconductors category at EnvMart for industrial and commercial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Vishay DG419DY-T1-E3 is 44V.
It has a maximum on-state resistance of 45 ohms, ensuring controlled signal attenuation.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial applications.
This model is designed for surface-mount assembly, which allows for compact placement on PCBs.
It features an 8-pin configuration, which is typical for its SOIC package type.
Yes, it is compatible with TTL-level interfaces due to its CMOS logic family.
The dimensions are 5mm in length, 4mm in width, and 1.55mm in height.
It utilizes a single-pole double-throw (SPDT) configuration for versatile analogue signal routing.
This device is RoHS compliant, meeting environmental safety standards.
Typical applications include analogue signal steering, multiplexing of audio or sensor inputs, and mixed-signal controller interfaces.
The switch belongs to the CMOS logic family, which is known for low power consumption and high noise immunity.
This model contains 1 element per chip, which is standard for its design.
