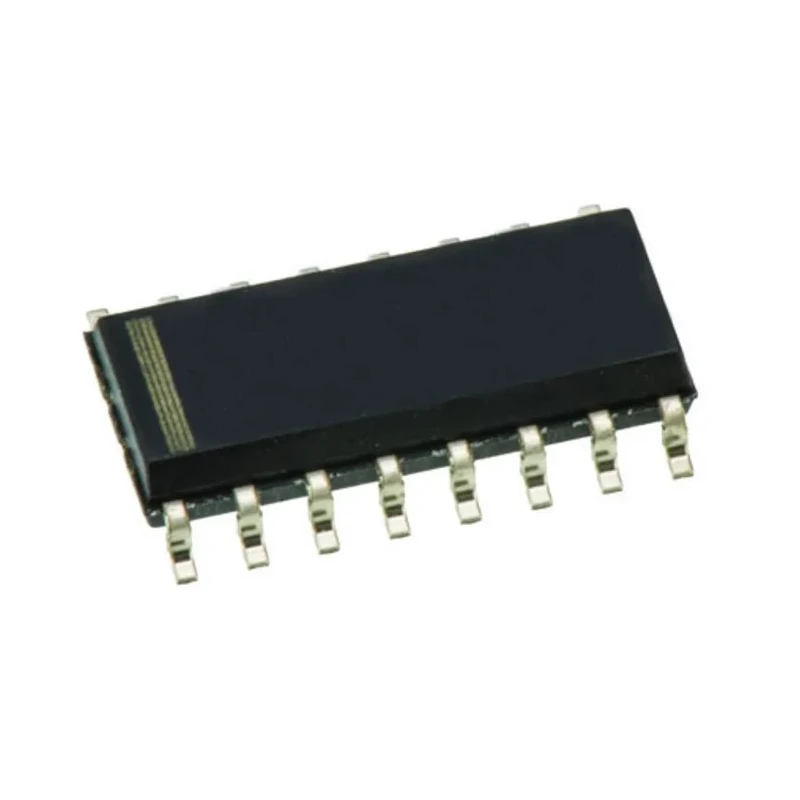

Texas Instruments LVDS Transceiver 2 Drivers 2 Receivers 500Mbps 16-Pin SOIC SN65LVDM051D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 9.9mm |
| Model | SN65LVDM051D |
| Mount Type | Surface |
| Output type | LVDS, LVTTL |
| Series | SN65LVDM051 |
| Input Type | LVTTL, LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Transmission Data Rate | 500Mbps |
| Differential Input High Threshold Voltage | 50mV |
| Differential Input Low Threshold Voltage | -50mV |
Key Features
- Operates with input types LVTTL and LVDS for versatile interface compatibility.
- Features output types LVDS and LVTTL to support differential and single-ended signaling.
- Supports a transmission data rate of up to 500 Mbps for high-speed data applications.
- Includes differential input thresholds set at ±50 mV to ensure signal integrity.
- Designed for surface mount applications with a compact SOIC 16-pin package.
- Operates within a supply voltage range of 3 V minimum to 3.6 V maximum.
- Functions reliably within an operating temperature range from -40°C to 85°C.
- Equipped with ESD protection to safeguard against electrostatic discharge damage.
Product Description
Texas Instruments SN65LVDM051D is an LVDS Transceiver designed for high-speed differential data communication applications. It integrates 2 LVTTL input drivers and 2 LVDS receivers within a compact 16-pin SOIC surface mount package, making it ideal for modern electronics requiring efficient signaling.
The device supports data transmission at rates up to 500 Mbps, using low voltage differential signaling (LVDS) technology that enables fast and reliable communication over twisted-pair copper cables with low power consumption.
Input compatibility includes both LVTTL and LVDS, while outputs support LVDS and LVTTL standards, allowing flexible integration in systems requiring different signaling levels. Differential input threshold voltages are precisely set at 50 mV high and -50 mV low, ensuring robust signal detection under varying conditions.
It operates over a wide supply voltage range from 3 V minimum to 3.6 V maximum and withstands ambient temperatures from -40°C to 85°C, supporting use in diverse industrial, commercial, and communication applications.
The SN65LVDM051D features electrostatic discharge (ESD) protection, enhancing device reliability in handling during assembly and operation.
Its compact 9.9 mm length and 1.58 mm height accommodate high-density mounting on printed circuit boards, making it suitable for electronics manufacturing and laboratory equipment designs.
Operates with both LVTTL and LVDS input standards. Supports high-speed data rates of 500 Mbps suitable for interface ICs. Built in ESD protection to increase device durability. Surface mount SOIC package ensures efficient PCB integration.
Wide temperature and voltage operating ranges enable flexible application. Compact size simplifies design in space-constrained environments. Ideal for industrial communication, signal processing, and data transmission applications.
Part of a reliable SN65LVDM051 series from Texas Instruments.
This LVDS transceiver is commonly used in electronics, industrial communication systems, and laboratory instrument interconnects, providing high speed and robust signal integrity. Explore more from Texas Instruments and LVDS Interface Ics at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65LVDM051D supports a maximum data transmission rate of 500 Mbps, making it suitable for high-speed data applications.
This transceiver operates with both LVTTL and LVDS input types, providing versatile interface compatibility.
It supports output types LVDS and LVTTL, allowing for both differential and single-ended signaling.
This model functions reliably within an operating temperature range from -40°C to 85°C.
The SN65LVDM051D operates within a supply voltage range of 3 V minimum to 3.6 V maximum.
The transceiver has a length of 9.9 mm and a height of 1.58 mm, designed for surface mount applications.
This transceiver integrates 2 drivers and 2 receivers within its design.
The differential input thresholds are set at ±50 mV, ensuring signal integrity during operation.
Yes, the SN65LVDM051D is equipped with ESD protection to safeguard against electrostatic discharge damage.
It comes in a compact SOIC 16-pin package, suitable for high-density mounting on printed circuit boards.
This transceiver is commonly used in industrial communication systems, signal processing, and data transmission applications.
The country of origin for this transceiver is India.
