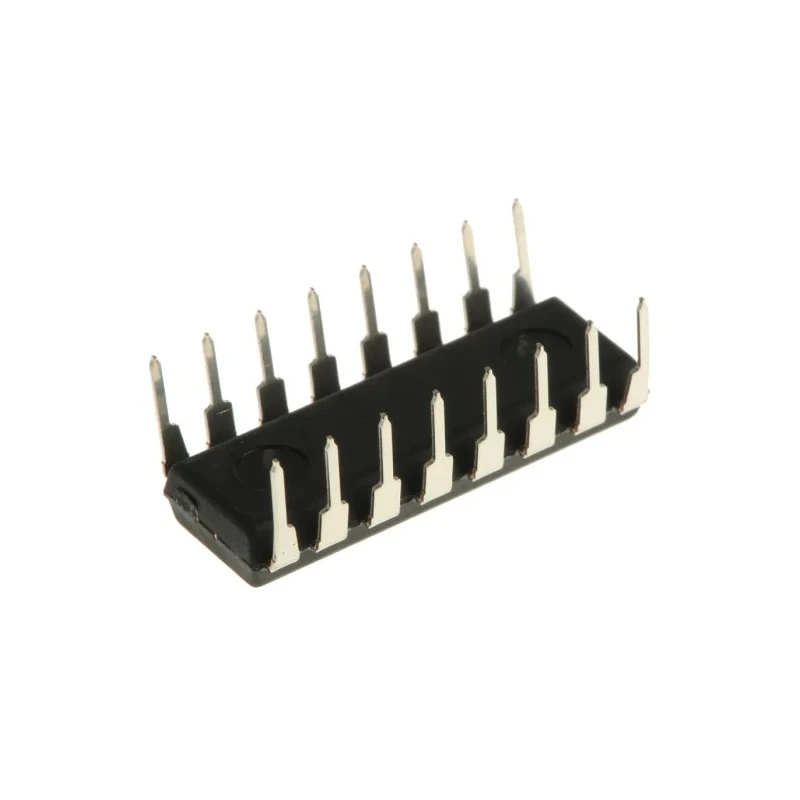

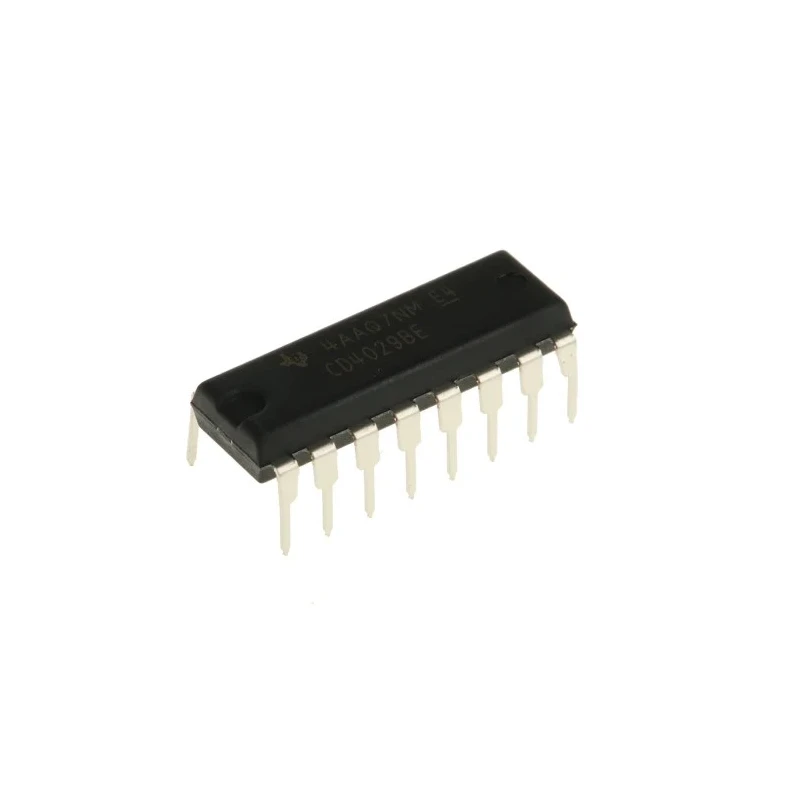

Texas Instruments 4 Stage Through Hole Binary Counter 16 Pin PDIP CD4029BE

Texas Instruments CD4029BE is a 4-stage binary counter IC in a through hole 16-pin PDIP package. Designed as part of the 4000 series CMOS logic family, it offers wide operating voltage from 3V to 18V and supports bi-directional counting, making it suitable for various electronic and industrial counting applications.

The asynchronous reset and preset features allow for versatile control over the counting operation, enhancing implementation in digital circuits. With a clock frequency capability up to 5.5 MHz at 15V, it supports efficient high-speed counting tasks.

This IC complies with RoHS standards, ensuring environmental and safety compliance. The wide temperature range from -55°C to 125°C allows reliable operation under harsh industrial environments.

With a compact PDIP package size of 19.69mm length and 4.57mm height, it is ideal for through hole mounting on printed circuit boards. Its 16 pins provide ample connectivity for counting circuits, and its CMOS technology ensures low power consumption.

4-stage binary counter with asynchronous reset and preset. Wide supply voltage: 3 to 18V for flexible power options. Bi-directional counting suitable for versatile applications. High frequency clock performance up to 5.5 MHz at 15V.

Operating temperature range: -55°C to 125°C for industrial reliability. Through hole PDIP 16-pin package compatible with standard PCB layouts. RoHS compliant ensuring environmentally friendly design.

This counter IC is widely used in electronics, industrial automation, digital instrumentation, and similar applications requiring precise counting functionality. Ensure your projects leverage the performance and robustness of the Texas Instruments CD4029BE.
