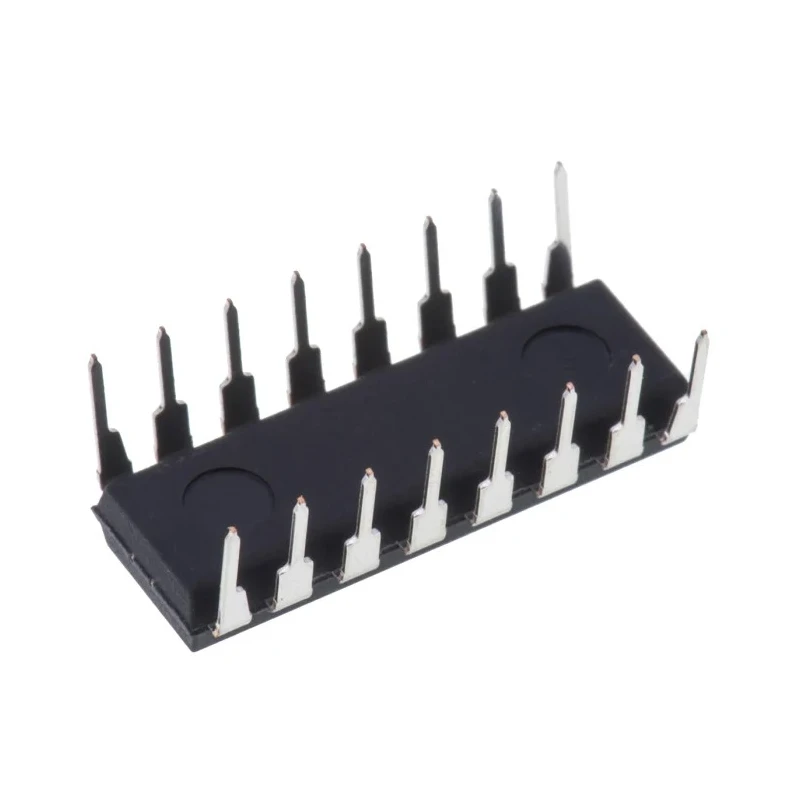

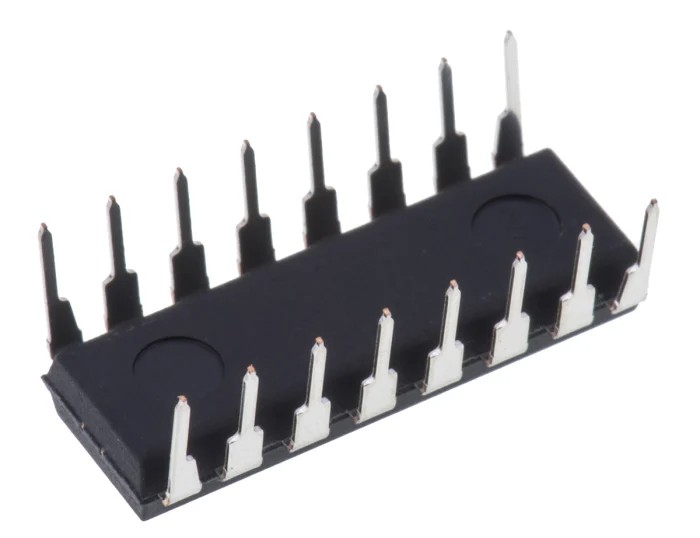

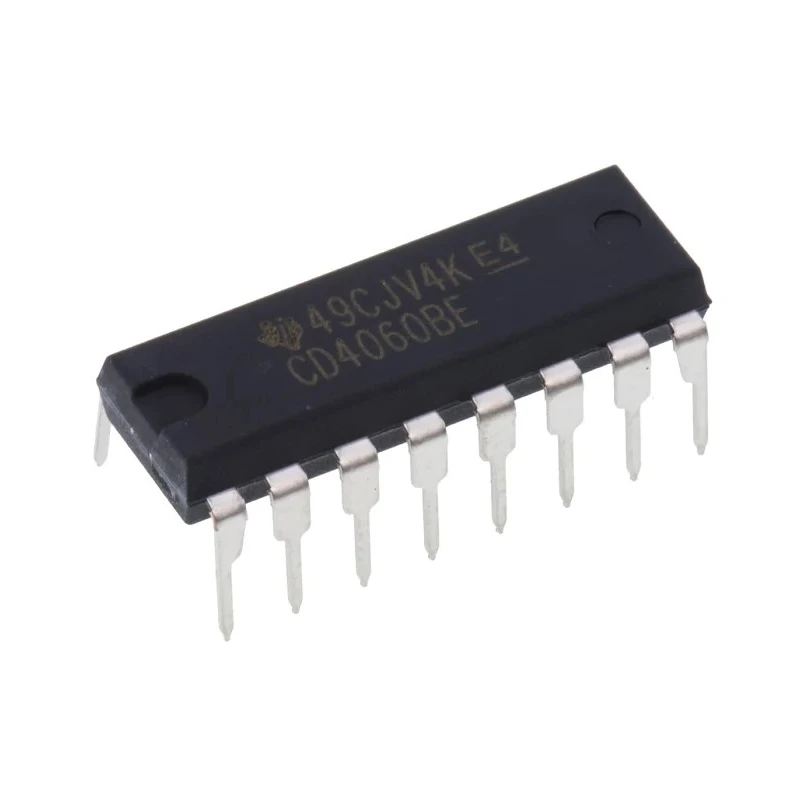

Texas Instruments 14 Stage Through Hole Binary Counter 4000 Series 16-Pin PDIP CD4060BE

Texas Instruments CD4060BE is a 14-stage binary counter integrated circuit designed for digital logic counting applications. Encased in a 16-pin PDIP through hole package, it provides robust performance over a wide operating voltage range from 3 volts up to 18 volts. This device is ideal for use in industrial, laboratory, and electronic manufacturing settings where precise timing and counting are required.

The CD4060BE operates as a binary counter and divider with asynchronous reset and preset capabilities, enabling flexible counts and interruptions. Its clock frequency depends on the supply voltage, offering 8 MHz operation at 15 volts, 12 MHz at 5 volts, and 3.5 MHz at 10 volts, delivering adaptability for varying input timings.

With a logic family belonging to the 4000 CMOS series, this counter provides low power consumption combined with high noise immunity, making it suitable for long-term reliable use in demanding electronic circuits.

Key technical details include a 16-pin count, pin spacing consistent with PDIP standards, length of 19.69mm, height of 4.57mm, and industry-standard operating temperature range from -55°C to 125°C. It is RoHS compliant, supporting environmentally responsible manufacturing processes.

This device finds applications in timers, frequency division, digital counters, and other sequential logic circuits. The uni-directional counting and integrated divider functions enhance its utility in complex electronic designs.

Features 14 stages of binary counting in a single IC. Operates with a supply voltage range from 3V to 18V. Clock frequency varies with voltage: 8 MHz at 15V, 12 MHz at 5V, and 3.5 MHz at 10V. Asynchronous reset and preset functionality for flexible control.

Designed with CMOS 4000 series technology for low power consumption. Uni-directional counting with division and counter logic functions. RoHS compliant and suitable for electronic component applications. Operating temperature range from -55°C to 125°C for industrial conditions.

Pin count of 16 pins convenient for PCB integration. Compact dimensions approximately 19.69mm length and 4.57mm height.

This Texas Instruments CD4060BE binary counter is an essential component in a wide range of electronic counter and timer designs, enabling precise and reliable performance in industrial, commercial, and laboratory equipment.
