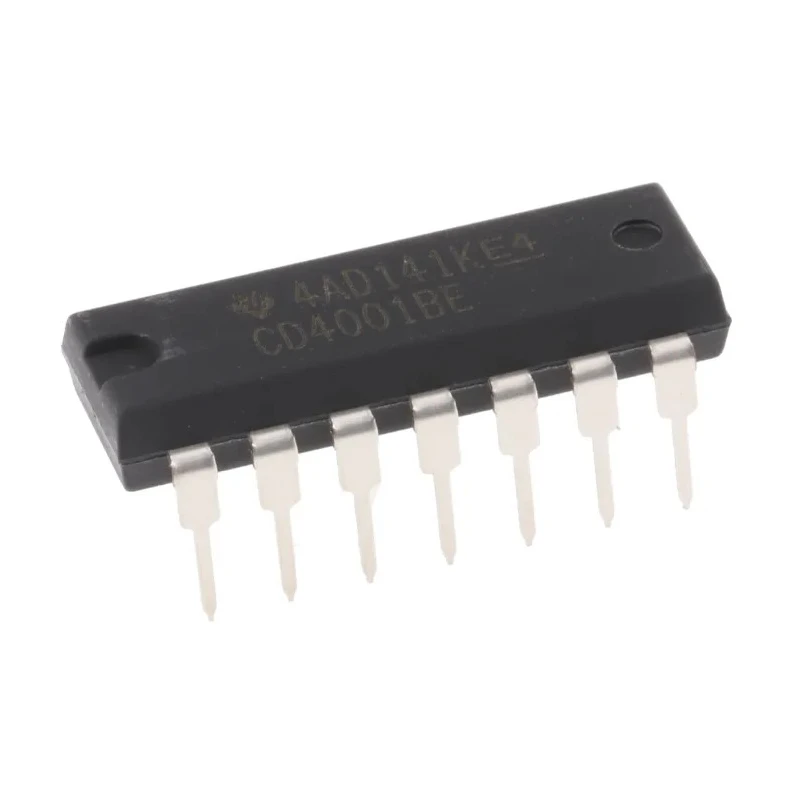

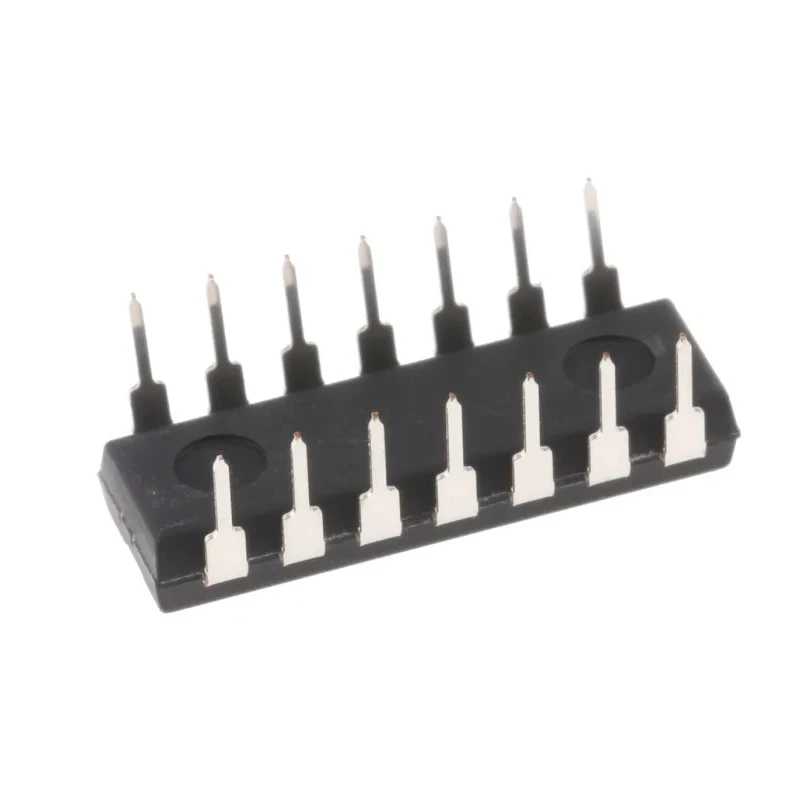

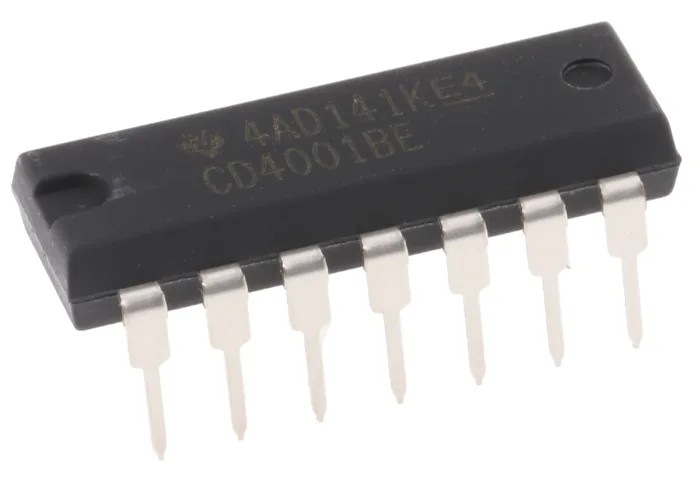

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP CD4001BE

Texas Instruments CD4001BE is a high-performance 4 2-input NOR logic gate IC, housed in a 14-pin PDIP package, designed for CMOS logic circuits. It is part of the CD4000 logic family, featuring a wide operating voltage range from 3V to 18V and a temperature tolerance from -55°C to 125°C, ensuring durability in demanding environments.

This Logic Gate IC includes four independent gates, each with two inputs, ideal for constructing versatile digital logic functions. The device operates with a propagation delay of only 90 nanoseconds at typical capacitive loads, delivering fast switching speeds suitable for a variety of electronics and industrial control applications.

The CD4001BE incorporates CMOS technology, providing low power consumption while delivering maximum output currents of ±4.2 mA. Its through-hole PDIP package allows for easy placement on standard PCBs, and the device's robust specifications enable use in embedded systems, signal processing, and other electronic component assemblies.

Contains 4 independent 2-input NOR gates for flexible logic design. Wide supply voltage support between 3V and 18V. Through-hole mount with 14 pins in PDIP configuration. Fast propagation delay of 90 nanoseconds at typical load.

Wide operating temperature range from -55°C to 125°C ideal for harsh conditions. CMOS logic family device for low power consumption and high noise immunity. High and low level output currents up to ±4.2 mA for reliable driving capability.

No Schmitt trigger input, making it suitable for standard logic applications.

This IC finds use in industrial machinery, semiconductor devices, electronic instruments, and embedded circuit modules requiring reliable NOR gate functions. Its industry-standard package and electrical characteristics make it a dependable choice for engineers and designers.

Explore more Texas Instruments logic ICs and components in the EnvMart catalog for diverse electronic and industrial applications.
