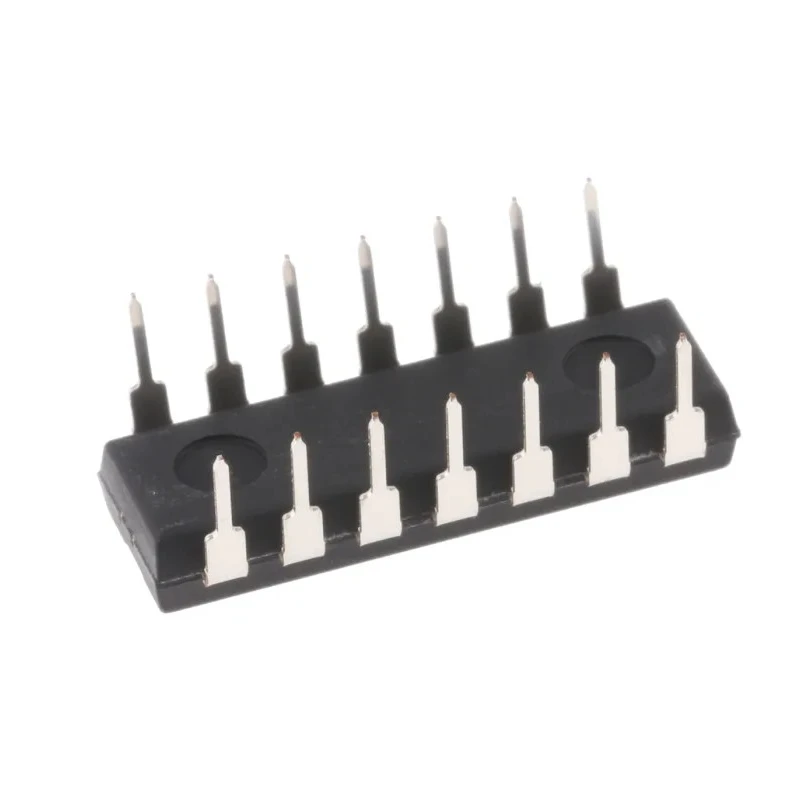

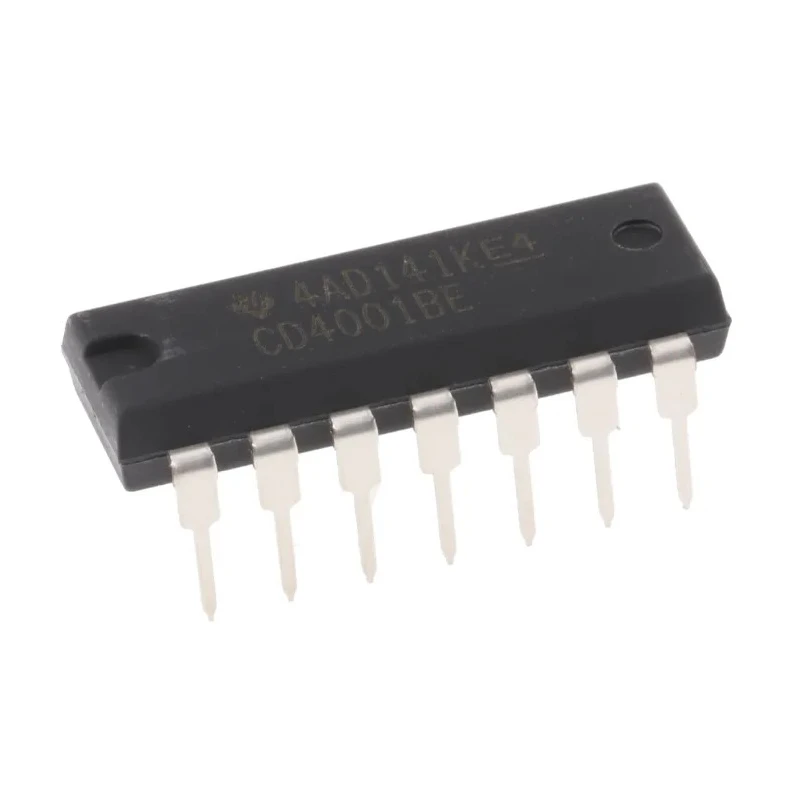

Texas Instruments 4 2-Input NOR Logic Gate 14-Pin PDIP CD4001BE

Texas Instruments CD4001BE is a 4 2-input NOR Logic Gate integrated circuit packaged in a 14-pin PDIP suitable for through-hole mounting. This device belongs to the 4000 series CMOS logic family, offering reliable logic gate operation with a wide operating voltage range from 3V to 18V. The IC is designed for industrial and electronic applications requiring NOR logic processing with low power consumption and high noise immunity.

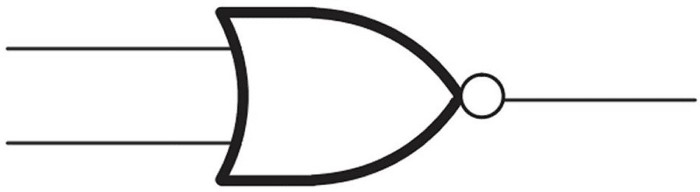

The CD4001BE contains four independent 2-input NOR gates within a single package. It features a maximum propagation delay time of 90 nanoseconds at a given capacitive load, ensuring timely logic signal transitions. The device supports operation over a temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions.

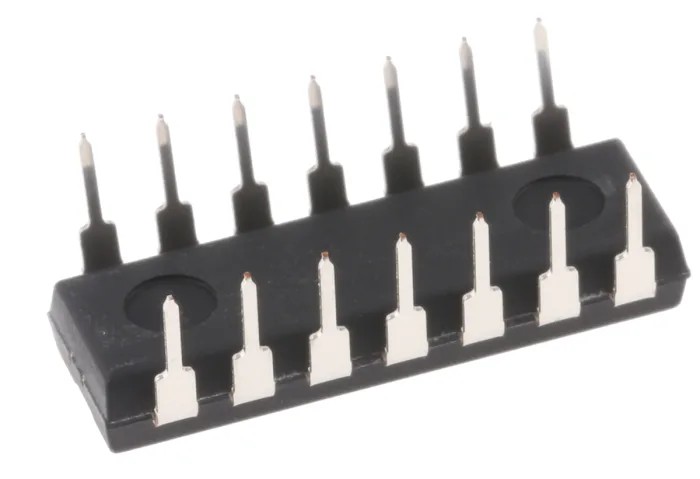

Its pin count of 14 arranged in a PDIP (Plastic Dual In-line Package) facilitates easy integration onto standard PCB layouts with through-hole mounting. Output type is buffered, supporting a maximum high level output current of -4.2 mA and a low level output current of 4.2 mA. The logic function is NOR with CMOS input type, compatible with other 4000 series logic circuits typically used in electronic, communication, and control systems.

Four 2-input NOR gates per IC package. Wide operating voltage range: 3V to 18V. Operating temperature range: -55°C to 125°C. Maximum propagation delay: 90 ns. Through-hole mount with 14-pin PDIP package. Compatible with 4000 series CMOS logic family.

Buffered output type with specified output currents.

This Texas Instruments CD4001BE Logic Gate IC is ideal for design engineers and technicians requiring precise and dependable NOR gate functionality in digital circuits, industrial electronics, and computing applications. Explore more semiconductor components and logic ICs in our Electronics & Electricals category for your circuit design and manufacturing needs.
