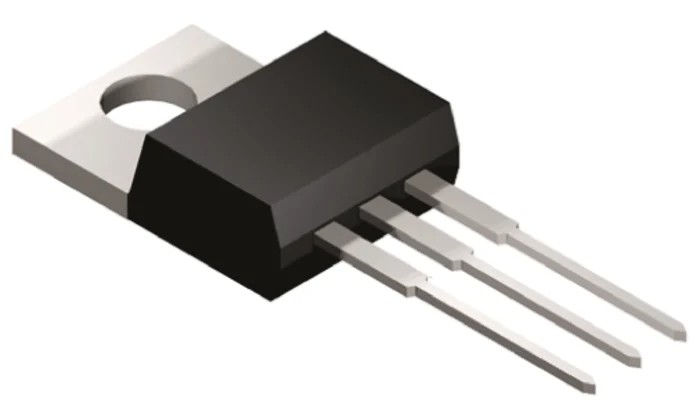

Vishay Thyristor SCR TO-220 Package 800 V 10 A Surge Current 200 A VS-16TTS08-M3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | VS-16TTS08-M3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 10A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 200A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 100mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.4V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- Package type is TO-220 suitable for through-hole mounting.
- Maximum gate trigger current is 60 mA ensuring efficient triggering.
- Maximum holding current is 100 mA with gate trigger voltage up to 2 V.
- Operating temperature range from -40°C to 125°C supports robust industrial use.
- Pin count of 3 allows for standard SCR connections.
- Peak on-state voltage is 1.4 V minimizing power losses.
- Surge current rating of 200 A allows withstand of transient currents.
- Encapsulated module with isolated base plate ideal for power control applications.
Product Description
Vishay VS-16TTS08-M3 Thyristor SCR with a TO-220 package is designed for power control in industrial and electronic applications. Rated for 800 V repetitive peak reverse voltage and 10 A average on-state current, this solid-state device is robust and reliable. Its surge current capability of 200 A allows it to handle transient conditions effectively.
The device features a maximum gate trigger current of 60 mA and a holding current of 100 mA, with a gate trigger voltage of 2 V, simplifying triggering mechanisms. Operating temperatures range from -40°C to 125°C, making it suitable for demanding environmental conditions.
Its encapsulated construction includes an electrically isolated base plate, facilitating safe mounting and integration in power electronics such as battery chargers, welding machines, plating equipment, regulated power supplies, and temperature or speed control circuits.
With a 3-pin configuration and low peak on-state voltage of 1.4 V, this SCR optimizes energy efficiency and thermal management. Package type: TO-220 through-hole. Rated average on-state current: 10 A. Surge current rating: 200 A.
Maximum gate trigger current: 60 mA. Operating temperature range: -40°C to 125°C. Peak on-state voltage: 1.4 V. Pin count: 3. Explore more high-quality semiconductor devices and thyristor solutions from Vishay at EnvMart.
