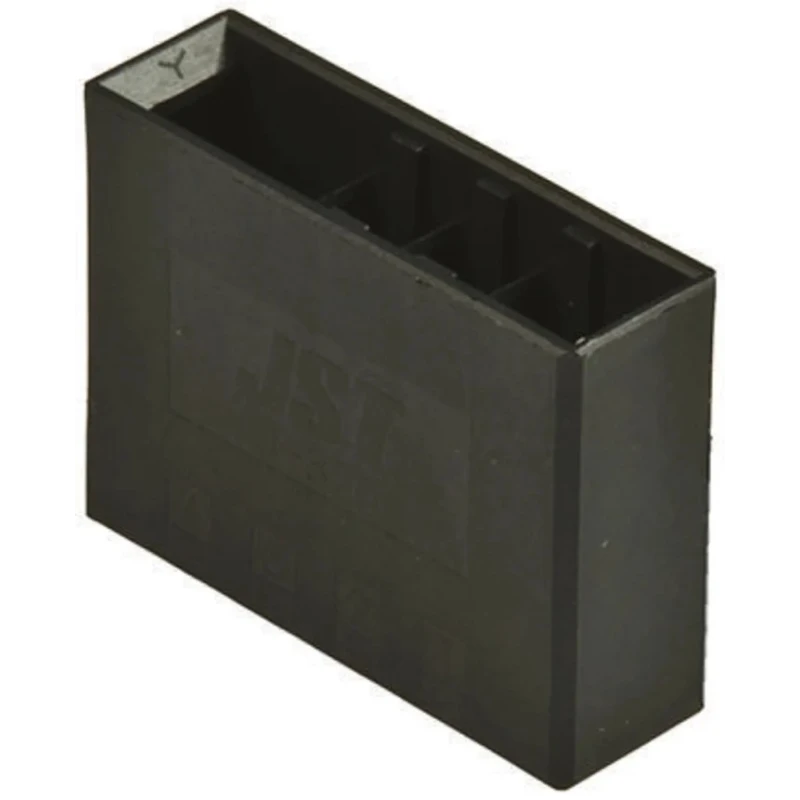

JST JFA J300 Series Straight Through Hole PCB Header, 3 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B03B-F32SK-GGXR

Free Delivery in India | Lowest Global Shipping Charges

JST JFA J300 Series Straight Through Hole PCB Header, 3 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B03B-F32SK-GGXR



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Straight
Current	10.5A
Model	B03B-F32SK-GGXR
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	JFA J300
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Interfaces	lances
Number of Rows	1
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Supports a current rating of 10.5A for reliable power transmission.
Constructed with thermoplastic housing and copper alloy contacts for durability.
Gold plating on contacts enhances corrosion resistance and conductivity.
Designed for through-hole mounting with straight orientation for easy PCB integration.
Operates within a temperature range of -55°C to 105°C for versatile applications.
Rated for 600V voltage maximum to ensure safe electrical performance.
Compatible with 14-28 AWG wire sizes and mates with J-FAT spring terminal connectors.
Features a double spring construction for enhanced contact pressure and secure locking.

Product Description

JST B03B-F32SK-GGXR PCB Header from the JFA J300 Series is a high-quality through-hole connector designed for wire-to-board applications in industrial and electronic assembly environments. It features 3 male contacts arranged in a single row with a 5.08 mm pitch and a shrouded housing for improved connection security and protection.

The thermoplastic housing ensures mechanical strength and insulation, while the copper alloy contacts with gold plating provide excellent electrical conductivity and corrosion resistance, ensuring performance and reliability over the product's operating life. This header is rated for a maximum current of 10.5A and voltage of 600V, suitable for various electronic and industrial circuit designs.

Capable of operating in temperatures ranging from -55°C to 105°C, this component offers durability in demanding environments. It uses a solder termination type for reliable PCB mounting, with a straight orientation to facilitate assembly. Polarization is achieved through key codes, preventing mismating and ensuring proper connector alignment. The double spring contact design enhances contact pressure, improving electrical connection stability.

This PCB header mates with JST J-FAT spring terminal connectors and supports wire sizes from 14 to 28 AWG, making it a versatile choice in electronics manufacturing, automotive, and automation sectors. Its compliance with UL 94V-0 indicates fire-retardant housing materials.

Supports a current rating of 10.5A for reliable power transmission. Durable thermoplastic housing material ensures insulation and mechanical strength. Copper alloy contacts plated with gold provide excellent conductivity and corrosion resistance.

Shrouded, single-row, straight orientation with through-hole mount type for secure PCB connection. Wide operating temperature range from -55°C to 105°C for harsh conditions. Rated for 600V maximum voltage for safe electrical operation.

Features double spring construction and polarization via key codes for secure mating. Compatible with 14-28 AWG wires and mates with J-FAT spring terminal connectors.

This JST PCB Header is suited for electronics manufacturing, industrial automation, and wire-to-board applications demanding reliable, high-quality connections. Explore more JST connectors and PCB components with EnvMart for your design and production needs.
