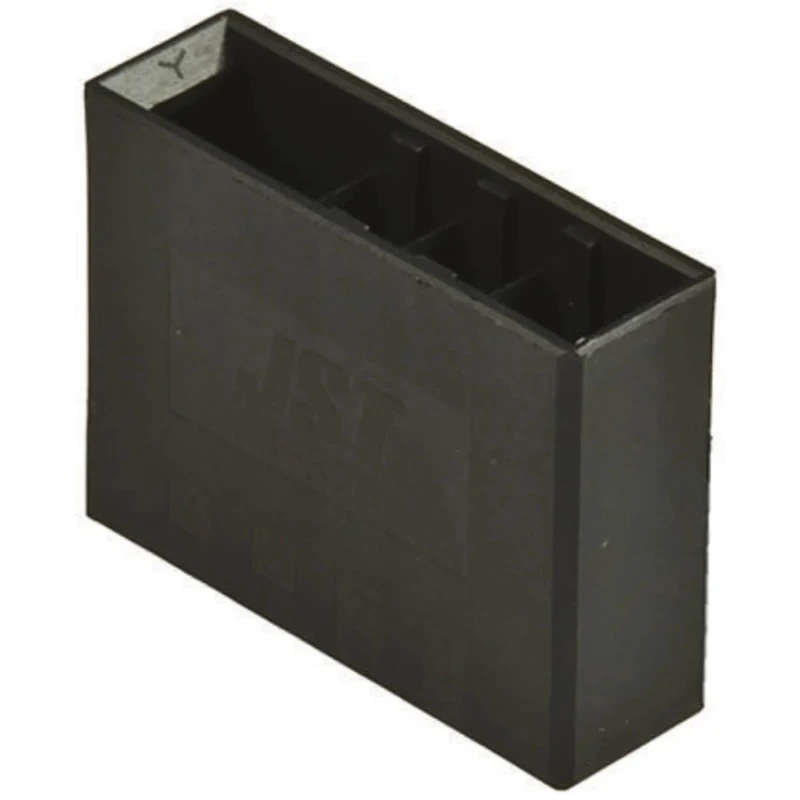

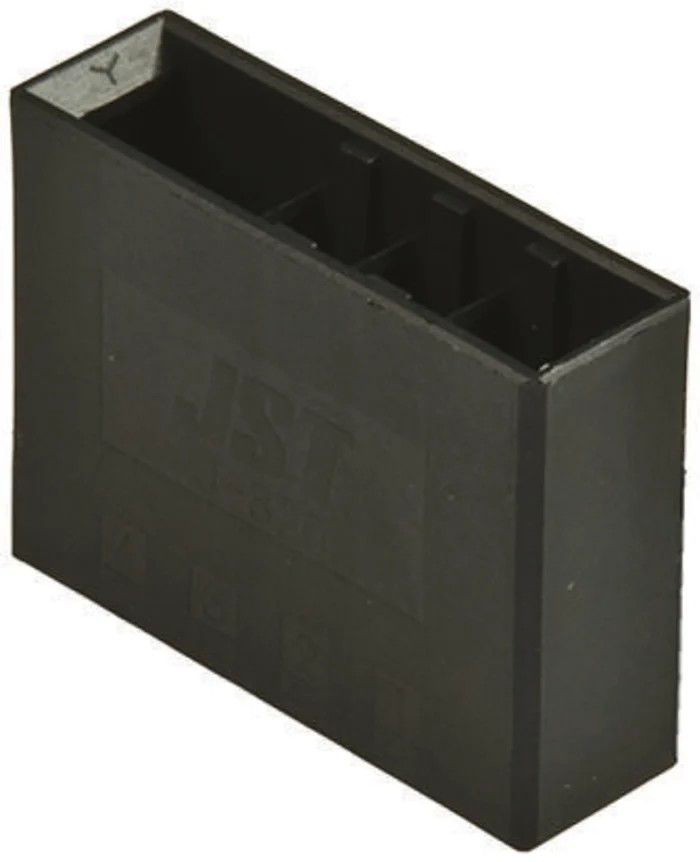

JST JFA J300 Series Straight Through Hole PCB Header, 4 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B04B-F32SK-GGXR

Free Delivery in India | Lowest Global Shipping Charges

JST JFA J300 Series Straight Through Hole PCB Header, 4 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B04B-F32SK-GGXR



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Straight
Current	10.5A
Model	B04B-F32SK-GGXR
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	JFA J300
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 4 contacts arranged in a single row with 5.08 mm pitch for precise spacing.
Constructed with thermoplastic housing ensuring durability and stability.
Contacts are made from copper alloy with gold plating for excellent conductivity and corrosion resistance.
Designed for through hole mounting and solder termination type for strong mechanical bonding.
Supports 10.5A current at a voltage rating of 600V, suitable for robust electronic applications.
Shrouded design provides secure locking and polarization to prevent misconnection.
Operates reliably within temperature range of -25°C to 85°C.
Compatible with JFA J300 Series connectors offering double-spring construction for enhanced contact pressure.

Product Description

JST B04B-F32SK-GGXR is a JFA J300 Series straight through hole PCB header featuring 4 contacts arranged in a single row with a precise 5.08 mm pitch. This shrouded PCB header is engineered for wire-to-board applications where secure and reliable connections are essential.

The housing is made from durable thermoplastic material that withstands harsh industrial environments, enhancing longevity and mechanical stability. The contacts consist of copper alloy plated with gold, delivering superior electrical conductivity and resistance to corrosion, ensuring dependable signal integrity and performance.

Designed for through hole mounting with solder termination, this header provides strong mechanical attachment to PCBs, ideal for industrial, electronic, and manufacturing equipment. Rated at 10.5A current and 600V voltage, it is suited for diverse electronic applications requiring robust power and signal transmission.

The shrouded design incorporates housing lances and secure locking mechanisms to prevent accidental disconnections and misalignments. Polarization keys incorporated into the part number allow for correct orientation during installation, reducing assembly errors.

Temperature tolerance ranges from -25°C to 85°C, making it suitable for demanding environments typically found in electronics manufacturing, automation, HVAC control systems, and industrial instrumentation.

This product mates with J-FAT spring terminal connectors, utilizing a double-spring construction design that offers optimal contact pressure and reliability in electrical connections.

Features 4 contacts with 5.08 mm pitch in a straight, single-row arrangement. Thermoplastic housing ensures durability and electrical insulation. Copper alloy contacts with gold plating guarantee excellent conductivity and corrosion resistance.

Through hole mount type and solder termination for secure PCB attachment. Rated for 10.5A current and 600V voltage operation. Shrouded connector system with housing lances for secure locking and polarization. Operating temperature range from -25°C to 85°C.

Male contact gender compatible with female connector counterparts. Manufactured in Japan to strict quality standards.

Suitable for use in electronic manufacturing, industrial automation, telecommunications, instrumentation, and other applications requiring reliable PCB connection solutions. Explore more products and categories like PCB Headers on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current of 10.5A and a voltage of 600V, making it suitable for robust electronic applications.

The contacts are arranged with a pitch of 5.08 mm, ensuring precise spacing for connections.

The housing is made from thermoplastic, while the contacts are constructed from copper alloy and plated with gold for excellent conductivity and corrosion resistance.

It is designed for through hole mounting with a solder termination type, providing strong mechanical bonding to PCBs.

The operating temperature range is from -25°C to 85°C, allowing it to function in various demanding environments.

This model features 4 contacts arranged in a single row.

Yes, it is compatible with JFA J300 Series connectors, utilizing a double-spring construction for enhanced contact pressure.

The shrouded design includes housing lances and secure locking mechanisms to prevent accidental disconnections and misalignments.

The contacts are male, compatible with female connector counterparts.

This PCB header is manufactured in Japan to strict quality standards.

It is suitable for use in electronic manufacturing, industrial automation, telecommunications, and instrumentation applications that require reliable PCB connections.

It features a shrouded connector system with polarization keys to ensure correct orientation during installation, reducing assembly errors.
