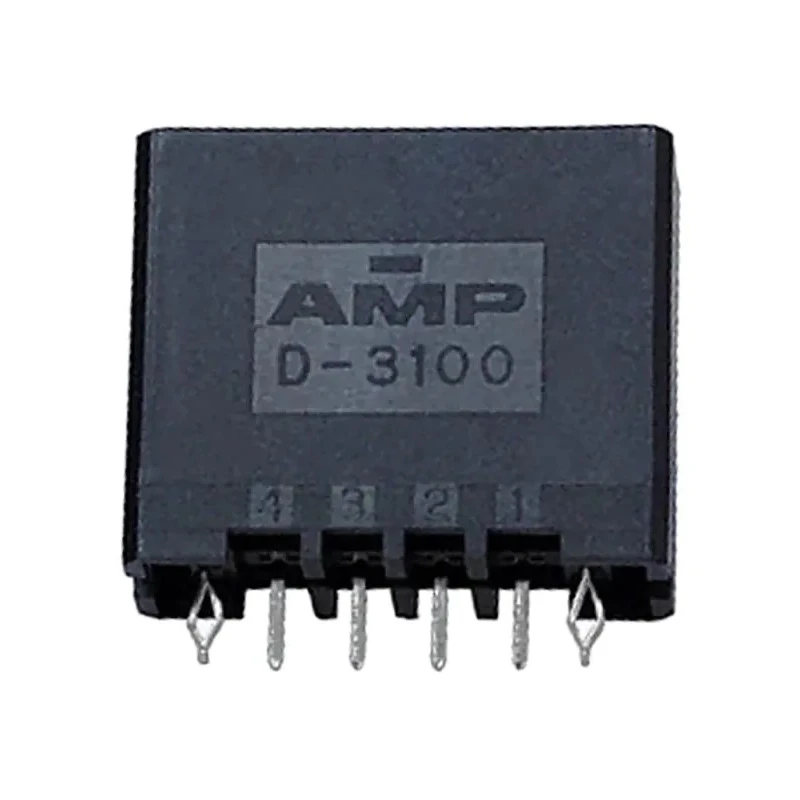

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header 4 Contacts 3.81 mm Pitch 1 Row Shrouded 1-178314-2

TE Connectivity 1-178314-2 Dynamic 3000 Series Straight Through Hole PCB Header is a high-reliability connector designed for wire-to-board applications. This model features a 3.81 mm pitch, 4 gold-plated copper alloy contacts arranged in a single row with a shrouded housing made of glass filled polyester material.

The header is built to facilitate through hole mounting on printed circuit boards with thicknesses ranging from 1.0 to 1.6 mm. It supports a current carrying capacity of 15 amperes and a voltage rating of 250 volts, making it well-suited for various electronic and power applications.

Operating temperature ranges from -55°C to 105°C allow this connector to perform reliably in demanding industrial environments, including manufacturing, automation, and electronic assemblies. The solder termination type ensures a robust electrical and mechanical connection to the PCB.

This product is designed to maximize stability with a tin plated retention leg and solder tails, while the gold plating on male contact tabs provides excellent corrosion resistance and conductivity. The shrouded design enhances protection of the contacts and prevents damage during mating.

Dynamic 3000 Series Headers from TE Connectivity are widely used in industrial, laboratory, and commercial electronics for efficient and secure PCB connections. Ideal for engineers and manufacturers seeking dependable connectors compatible with standardized PCB pitches.

Features a 3.81 mm pitch with a single row of contacts. Constructed with glass filled polyester housing for durability. Supports a current rating of 15A and voltage of 250V. Contact material is copper alloy with gold plating for corrosion resistance.

Suitable for through hole mounting on PCBs with 1.0 to 1.6 mm thickness. Shrouded design ensures secure mating and protects contacts. Operates reliably in a temperature range from -55°C to 105°C. Termination type is solder with male contact gender.

Designed for industrial electronics, power connectors, and PCB assemblies. Explore our extensive selection of TE Connectivity connectors and components on EnvMart to enhance your electronic designs with high-quality, industry-approved products.
