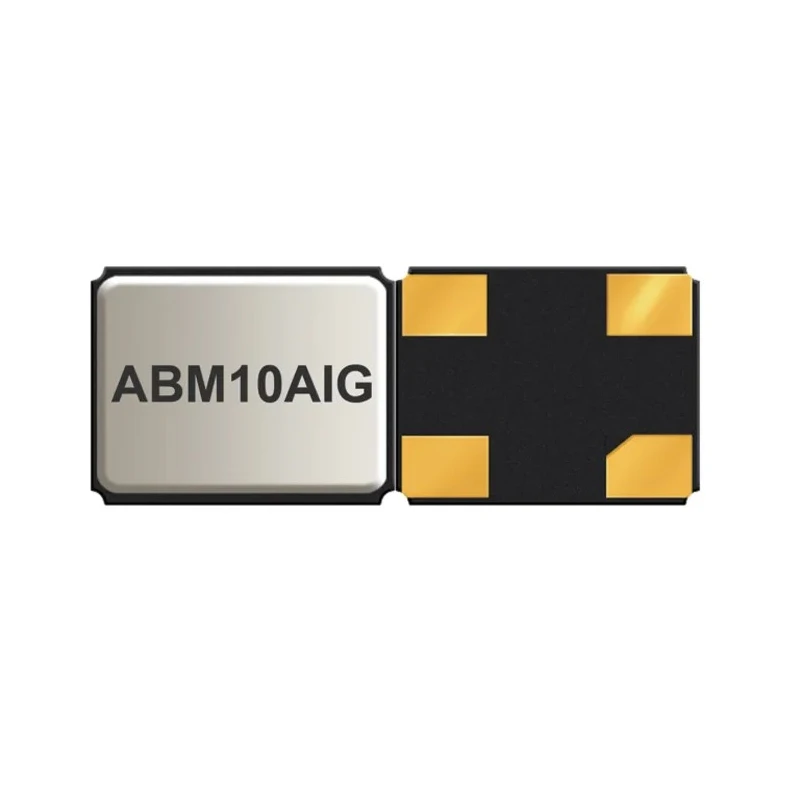

Abracon 25 MHz Crystal ±50 ppm Ceramic Package 4-Pin Surface Mount ABM10AIG-25.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-25.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 25MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Standard frequency of 25 MHz for reliable oscillation.
- Surface mount type with 4-pin ceramic package.
- Operating temperature range from -40°C to 125°C.
- Load capacitance of 10 pF compatible with common oscillator circuits.
- Series resistance of 60Ω to minimize signal loss.
- Hermetically sealed ceramic package provides durability and environmental protection.
- AEC-Q200 qualified for automotive-grade reliability.
- Designed for use in infotainment systems, GPS, ADAS and LiDAR applications.
Product Description
Abracon ABM10AIG-25.000MHZ-4Z-T3 is a high-precision 25 MHz crystal unit designed for surface mount applications. It features a hermetically seam sealed ceramic package with 4 pins, measuring 2.5 mm in length, 2 mm in width, and 0.55 mm in height, ensuring a compact footprint suitable for dense PCB layouts.
This crystal offers a frequency tolerance of ±50 ppm and excellent frequency stability of ±100 ppm across an operating temperature range of -40°C to 125°C, meeting automotive-grade 1 standards. Its load capacitance is specified at 10 pF, with a series resistance of 60Ω, providing reliable and stable oscillation in electronic systems.
The ABM10AIG series is AEC-Q200 qualified and TS16949 production line certified, ensuring robust quality and performance required for automotive and industrial-grade applications. These crystals are ideal for infotainment systems, GPS and navigation units, ADAS (Advanced Driver Assistance Systems), and LiDAR technologies.
The hermetic ceramic package ensures environmental protection and longevity with RoHS and Pb-free compliance, confirming its suitability for modern regulatory standards. Standard frequency of 25 MHz with tight tolerance and stability.
Compact 4-pin surface mount ceramic package optimized for space-saving designs. AEC-Q200 automotive-grade qualification for harsh environments. Wide operating temperature range (-40°C to 125°C) for industrial reliability.
Hermetically sealed for enhanced durability and moisture resistance. Compatible with various electronic circuits requiring 10 pF load capacitance. Series resistance optimized at 60Ω to reduce signal degradation. TS16949 and PPAP certification available upon request.
Ideal for automotive infotainment, GPS, ADAS, and LiDAR systems. Compliant with RoHS and Pb-free environmental standards. Explore the complete range of Crystal Units at EnvMart to find the right components for your industrial and automotive electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 25 MHz.
It operates within a temperature range of -40°C to 125°C, making it suitable for automotive-grade applications.
The load capacitance is specified at 10 pF, which is compatible with common oscillator circuits.
This model features a 4-pin ceramic package, designed for surface mount applications.
The series resistance is optimized at 60Ω to minimize signal loss.
Yes, it is AEC-Q200 qualified, ensuring automotive-grade reliability.
The dimensions are 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
It is packaged in tape and reel format, suitable for automated assembly processes.
It complies with RoHS standards and is Pb-free, confirming its suitability for modern regulatory requirements.
It is designed for use in infotainment systems, GPS, ADAS, and LiDAR applications.
The hermetically sealed ceramic package provides durability and environmental protection.
Yes, it has TS16949 production line certification available upon request, ensuring robust quality and performance.
