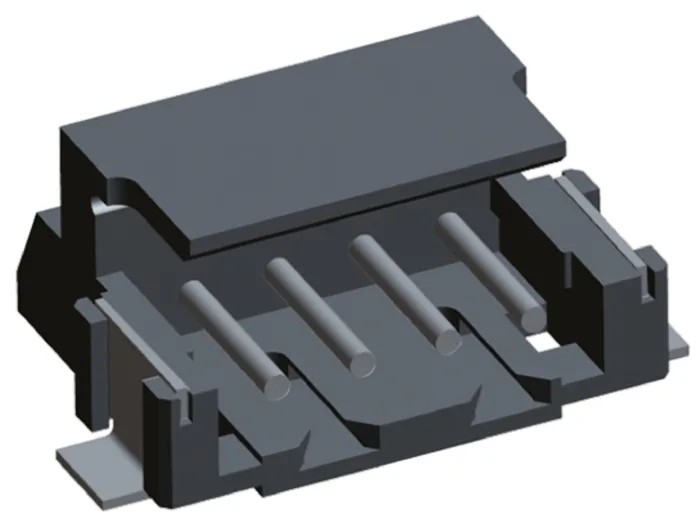

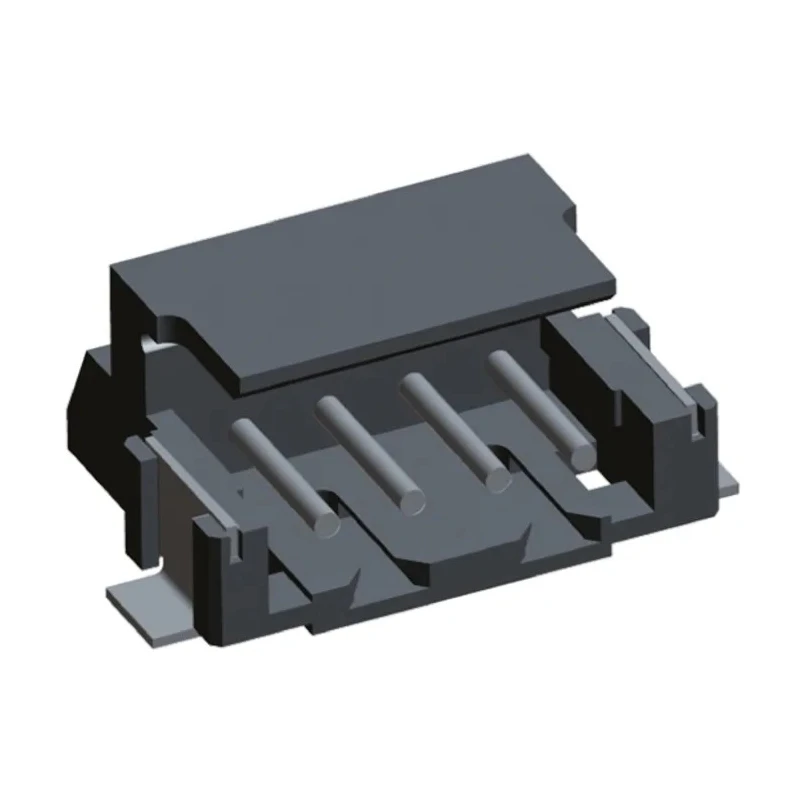

TE Connectivity AMP CT Series Right Angle Surface PCB Header, 4 Contact, 2 mm Pitch, 1 Row, Shrouded 292173-4

TE Connectivity 292173-4 AMP CT Series Right Angle Surface PCB Header is a high-quality electronic connector designed for wire-to-board applications requiring a compact footprint and reliable performance. This PCB header is fully shrouded to protect contacts from scooping during mating and unmating, enhancing durability and life span. The right angle surface mount design allows for versatile and space-saving mounting on printed circuit boards.

The header features 4 male contacts spaced at a 2 mm pitch, constructed with brass contact material and tin plating to provide excellent conductivity and corrosion resistance. The housing is made of durable nylon material, ensuring robust insulation and mechanical stability under operational stresses.

Designed with solder termination type, the header ensures a secure and reliable connection to the PCB. The device supports a current rating of 2A and a voltage rating of 125V, suitable for a broad range of low-power electronic equipment. Its operating temperature range spans from -30°C to a maximum of 105°C, allowing use in various industrial and commercial environments.

Additional features include polarization and mating retention, which guarantee proper connector alignment and enhanced connection security during installation and maintenance. Solder tabs on either side of the housing provide additional mechanical retention to maintain the integrity of electrical connections, especially in environments subject to vibration or movement.

This AMP CT 2 mm connector series is widely used across applications such as business equipment, industrial machinery, personal computers, printers, television equipment, audio devices, and air conditioning systems. Its compact form factor and reliable construction make it ideal for manufacturing, electronics assembly, and repair tasks.

Miniature design with 2 mm pitch for compact PCB layouts. Fully shrouded housing protects contacts from damage during mating. Right angle orientation for optimized PCB mounting. Constructed with nylon housing and brass contacts plated with tin for durability.

Supports solder termination type ensuring stable electrical connection. Rated for 2A current and 125V voltage suitable for low-power electronics. Operational temperature range from -30°C to 105°C for various environments.

Includes polarization and mating retention features to prevent misconnection. Solder tabs secure the header firmly to the PCB surface. Ideal for business equipment, industrial machines, PCs, printers, C-TV, audio, and air conditioning applications.
