Samtec ESW Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESW-120-12-G-D

Free Delivery in India | Lowest Global Shipping Charges

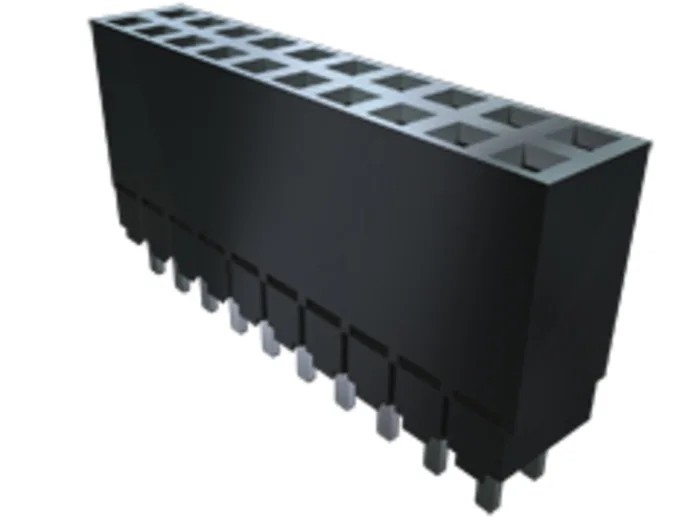

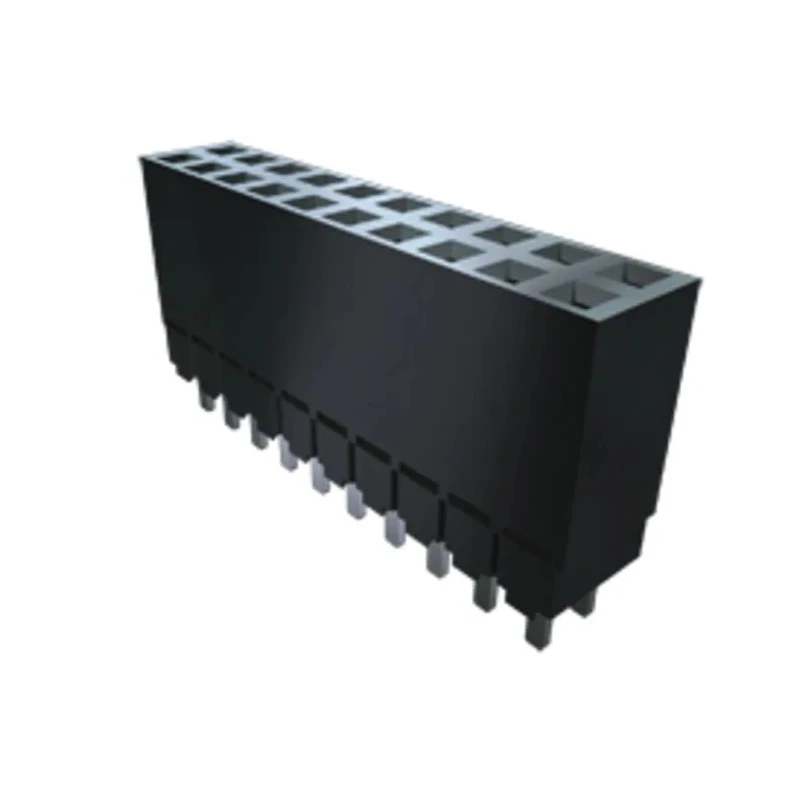

Samtec ESW Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESW-120-12-G-D

Name: Samtec ESW Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch 5.2A 550V ESW-120-12-G-D
Brand: Samtec
SKU: 216223
Price: 10.42 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	550V
Brand	Samtec
Orientation	Straight
Current	5.2A
Model	ESW-120-12-G-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with standard solder tails
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	ESW
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

Constructed with black glass filled polyester housing for durability.
Features bronze contact material with gold plating for reliable conductivity.
Designed for through-hole mounting with straight orientation.
Operates reliably between -55°C and 125°C temperature range.
Includes Tiger Buy™ contact system for superior performance.
Standard and low insertion force contacts with standard solder tails enhance usability.
Compatible with board-to-board connector systems.
Offers elevated single and double row configurations up to 72 pins.

Product Description

Samtec ESW-120-12-G-D is a high-quality PCB Socket featuring 40 contacts arranged in 2 rows with a 2.54 mm pitch, designed for board-to-board connection in electronic assemblies. This straight through-hole socket provides reliable electrical performance with a current rating of 5.2A and operating voltage of 550V, suitable for demanding industrial and commercial electronic applications.

The socket's black glass filled polyester housing ensures robust mechanical strength and resistance to environmental stress. Its bronze contacts plated with gold provide excellent conductivity and corrosion resistance. The socket operates effectively over a wide temperature range from -55°C to 125°C, making it suitable for diverse environmental conditions.

Featuring the Tiger Buy™ contact system, it balances low insertion force with secure electrical contact. This component is ideal for elevated single and double row configurations, supporting up to 72 pins, enhancing design flexibility in PCB assemblies.

The through-hole mount type combined with straight orientation simplifies PCB assembly and soldering processes. This ESW series socket is widely used in industrial electronics, telecommunications, computing, and other high-reliability applications requiring durable and dependable PCB interconnect solutions.

Constructed with black glass filled polyester housing for durability. Features bronze contact material with gold plating for reliable conductivity. Designed for through-hole mounting with straight orientation. Operates reliably between -55°C and 125°C temperature range.

Includes Tiger Buy™ contact system for superior performance. Standard and low insertion force contacts with standard solder tails enhance usability. Compatible with board-to-board connector systems. Offers elevated single and double row configurations up to 72 pins.

This PCB socket supports enhanced electronic designs in industrial, laboratory, manufacturing, and telecommunications equipment. EnvMart offers this premium quality Samtec ESW Series socket to enhance your PCB connection reliability and performance.

Explore more products in our PCB Sockets category.
