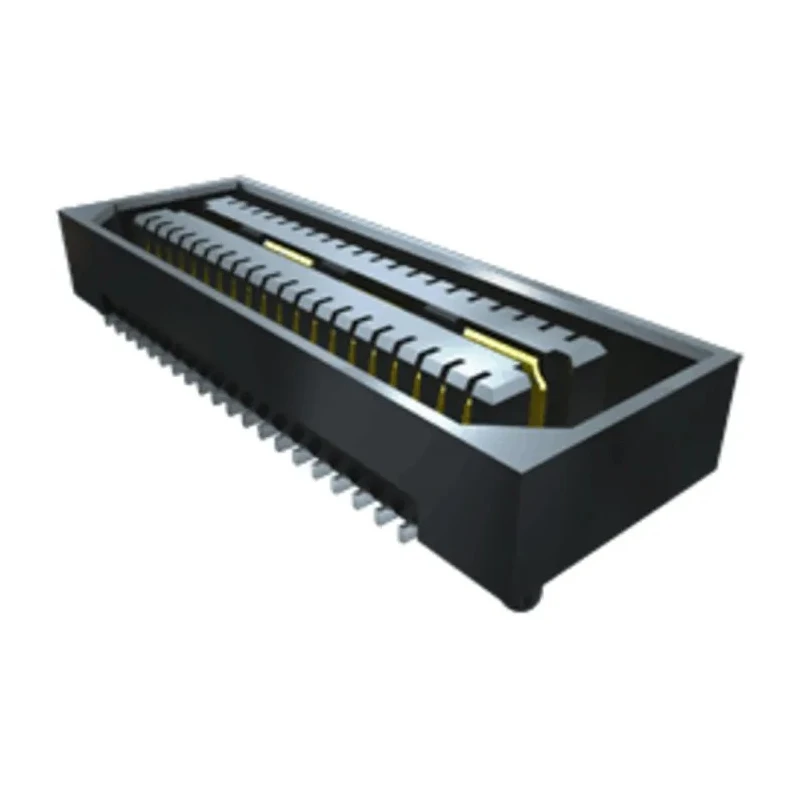

Samtec QSE Series Straight Surface PCB Socket Board-to-Board 120-Contact 0.8 mm Pitch Solder QSE-060-01-L-D-A-K

Samtec QSE-060-01-L-D-A-K is a high-performance straight surface PCB socket designed for board-to-board connections with 120 contacts in 2 rows at a fine pitch of 0.8 mm. The socket uses a robust blade and beam contact system ensuring reliable electrical performance up to 28+ Gbps, suitable for high-speed signal integrity applications in industrial electronics, communications, and computing equipment.

The socket features a surface mount package with a stacking height of 5 mm, enabling compact PCB designs. Its housing is constructed from Liquid Crystal Polymer providing excellent mechanical durability and thermal stability across a wide temperature range from -55°C to 125°C. The bronze contacts plated with gold ensure low resistance and prolonged service life.

This device supports current ratings of 23 A and voltage of 225 V, making it appropriate for demanding electronic assemblies requiring stable power and signal connections. The 0.80 mm pitch and 5.73 mm row pitch allow dense packing of contacts while maintaining optimal signal integrity.

Applications include telecom switching equipment, data communication systems, industrial automation, and high-speed computing platforms. The socket facilitates easy solder termination and alignment during assembly, reducing manufacturing complexity.

The socket features a straight surface mount design with a stacking height of 5 mm. Contact material is bronze plated with gold for enhanced conductivity and corrosion resistance. It supports a maximum operating temperature of 125°C and minimum of -55°C.

Designed for currents up to 23 A and voltage rating up to 225 V. The housing is made of durable Liquid Crystal Polymer suitable for high-speed applications. This QSE series socket supports data transmission rates exceeding 28 Gbps.

Ideal for applications requiring reliable, high-density board-to-board interconnections. Compatible with solder termination and offers easy mating alignment with blade & beam contact system. Explore the complete range of Samtec PCB Sockets and related components on EnvMart for comprehensive connectivity solutions.
