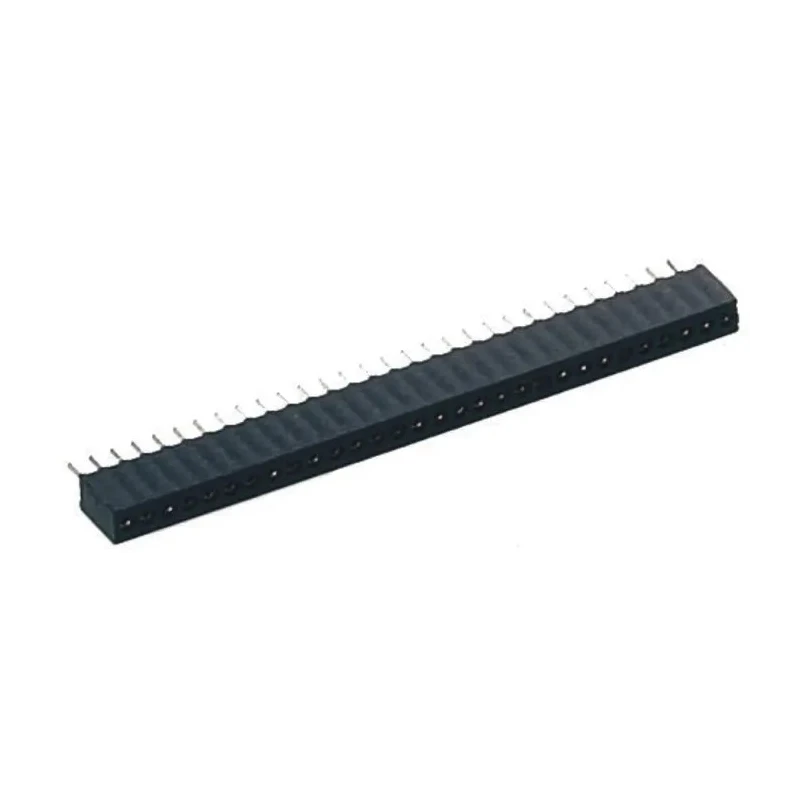

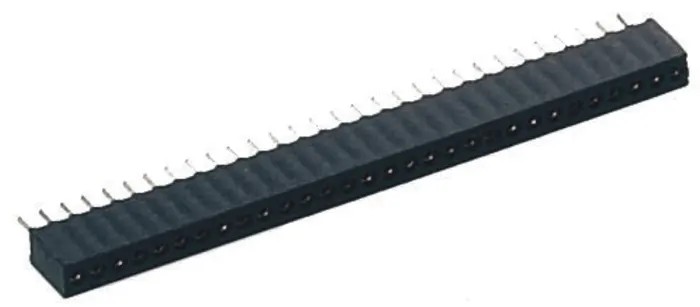

Preci-Dip 12 Way Preci-Dip Straight Through Hole 1.27 mm Pitch SIL Socket 100 V ac, 150V dc, Solder, 1A 851-87-012-10-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 12 Way Preci-Dip Straight Through Hole 1.27 mm Pitch SIL Socket 100 V ac, 150V dc, Solder, 1A 851-87-012-10-001101

Name: Preci-Dip 12 Way Preci-Dip Straight Through Hole 1.27 mm Pitch SIL Socket 100 V ac, 150V dc, Solder, 1A 851-87-012-10-001101
Brand: Preci-Dip
SKU: 215487
Price: 4.63 USD
Availability: InStock



Category SIL Sockets Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	100, 150V ac
Brand	Preci-Dip
Orientation	Straight
Current	1A
Length	15.65mm
Depth	4.1mm
Width	2.2mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate
Contact Material	Beryllium Copper Alloy, Brass
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	1.27mm
Contact Plating	Tin, Gold
Number of Contacts	12

Key Features

Features 12 contacts made of beryllium copper alloy and brass for durability.
Contact plating includes tin and gold to ensure reliable conductivity.
Rated for 1 amp current, suitable for low power applications.
Housing constructed from fibreglass reinforced polycyclohexylenedimethylene terephthalate for high strength.
Termination type is solder, enabling secure PCB mount through-hole assembly.
Operating temperature range from -55°C to 125°C for broad environmental tolerance.
Compact dimensions with length 15.65 mm, width 2.2 mm, and depth 4.1 mm.

Product Description

Preci-Dip 851-87-012-10-001101 is a 12 Way SIL Socket designed for high-reliability electronic component connections on PCBs. It features a 1.27 mm pitch with straight through hole mounting and is rated for 1 amp current, suitable for various low power electronic applications.

The socket contacts are made from a durable beryllium copper alloy combined with brass sleeves, plated in tin and flash gold for optimal conductivity and corrosion resistance. The housing is made of fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing mechanical strength and high temperature tolerance.

The device supports operating voltages of 100 V AC and 150 V DC with an operating temperature range from -55°C to 125°C, making it suitable for harsh industrial environments, laboratory equipment, and manufacturing electronics assembly.

The termination type is solder, designed for through hole PCB mounting, ensuring secure and reliable mechanical and electrical connections. The compact form factor with dimensions length 15.65 mm, width 2.2 mm, and depth 4.1 mm makes it ideal for densely populated circuit boards.

Features 12 contacts with high-quality contact material and plating. Supports moderate currents with 1 amp rating. Compact dimensions fit tight PCB layouts. High operating temperature and voltage range suitable for industrial use.

Robust fibreglass reinforced housing ensures durability. Perfect for electronics manufacturing, testing, repair, and prototyping. Facilitates easy and reliable solder termination with through hole design. Widely applicable in industrial electronics, laboratory instruments, and control systems.

This product is designed for electronic manufacturing professionals, engineers, and technicians requiring reliable SIL Sockets for their PCB assemblies. Preci-Dip's Swiss engineering ensures high quality and consistent performance.
