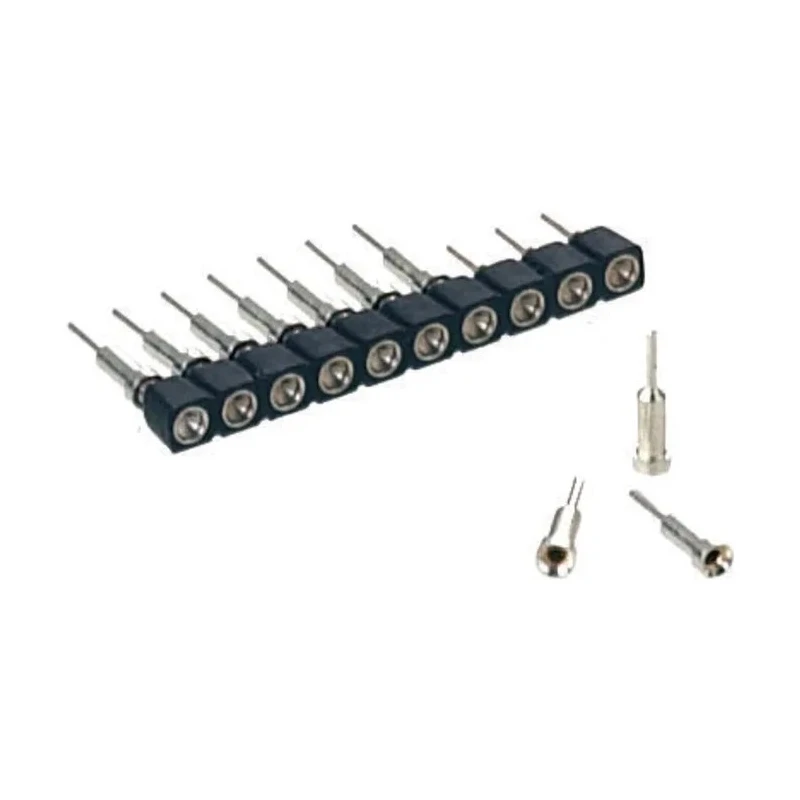

Preci-Dip 5 Way Straight Through Hole 2.54 mm Pitch Socket Contact Carrier 100 V AC, 150 V DC, Solder 712-87-105-41-001101

The Preci-Dip 712-87-105-41-001101 5 Way Straight Through Hole Socket Contact Carrier is precision-engineered for electronic applications requiring reliable and compact connectors. Featuring a 2.54 mm pitch and a zero profile design, these socket contacts are ideal for mating pin diameters of 0.47 mm, ensuring consistent and secure PCB connections.

Contacts are constructed from a Beryllium Copper Alloy and Brass, plated with gold and tin to provide superior conductivity and corrosion resistance. The solder termination with a 3.11 mm tail length facilitates robust through-hole PCB mounting.

Housing is crafted from Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate, delivering mechanical strength and thermal resistance to withstand operating temperatures from -55°C to 125°C. The carrier design simplifies assembly and enhances production efficiency in high-volume manufacturing environments.

This connector supports voltages of 100 V AC and 150 V DC with a current rating of 3A, making it suitable for a variety of electronic and industrial equipment. Its compact size (12.7 mm length, 4.26 mm depth, 1.83 mm width) ensures space-saving on PCBs and facilitates device miniaturization.

Manufactured in Switzerland, this product adheres to rigorous quality standards, ensuring long-term reliability and performance in demanding industrial, electronic manufacturing, and laboratory applications.

Equipped with 5 contacts for secure electrical connectivity. Contacts made from Beryllium Copper Alloy and Brass for durability. Gold and Tin plated contacts ensure corrosion resistance. Designed to operate at 100 V AC and 150 V DC with 3A current capacity.

Mount type is through hole with a solder termination style. Housing made from Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate for high strength. Operating temperature range from -55°C to 125°C. Compact dimensions: Length 12.7 mm, Depth 4.26 mm, Width 1.83 mm.

Zero profile design suitable for low height PCB installations. Manufactured in Switzerland ensuring high quality standards.

Incorporate the Preci-Dip 712-87-105-41-001101 socket contact carrier in your electronic components procurement for efficient PCB socket solutions. Explore more in the SIL Sockets category on EnvMart for complementary electronic and industrial connectors.
