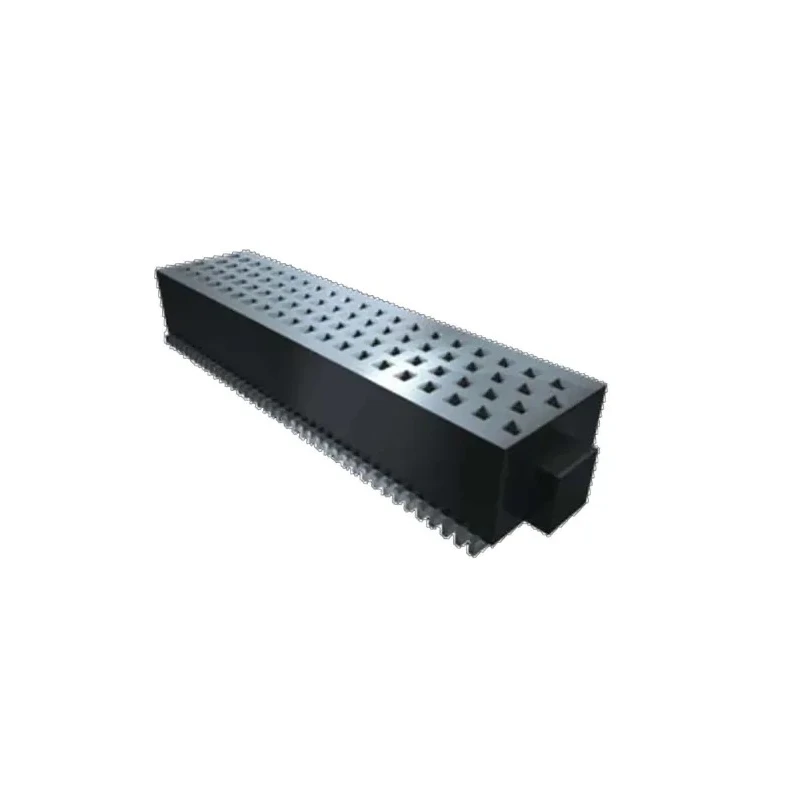

Samtec SOLC Series Straight Surface PCB Socket, 40-Contact, 1 Row, 1.27 mm Pitch, Solder Termination SOLC-110-02-S-Q-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec SOLC Series Straight Surface PCB Socket, 40-Contact, 1 Row, 1.27 mm Pitch, Solder Termination SOLC-110-02-S-Q-A

Name: Samtec SOLC Series Straight Surface PCB Socket, 40-Contact, 1 Row, 1.27 mm Pitch, Solder Termination SOLC-110-02-S-Q-A
Brand: Samtec
SKU: 105450
Price: 19.16 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	2.4A
Model	SOLC-110-02-S-Q-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Current Rating	2.4A per pin (6 adjacent pins powered)
Series	SOLC
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	PCB Socket
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Operating temp range	-55°C to +125°C

Key Features

Features a single row with 40 female contacts for efficient PCB interfacing.
Constructed with phosphor bronze contact material ensuring durability and reliable conductivity.
Contacts are plated with 0.25 μm gold for enhanced corrosion resistance.
Designed with liquid crystal polymer housing for high temperature tolerance and insulation.
Supports a current rating of 2.4 A per pin with 6 adjacent pins powered.
Suitable for operation between -55°C and 125°C for harsh environmental conditions.
Termination type is solder, facilitating secure PCB board mounting.
Connector system type is board-to-board, supporting compact electronic designs.

Product Description

The Samtec SOLC-110-02-S-Q-A is a high-quality straight surface mount PCB socket designed for reliable electronic component interfacing. It features 40 female contacts arranged in a single row with a 1.27 mm pitch, which ensures precise and stable board-to-board connections.

Manufactured with phosphor bronze contact material and plated with 0.25 μm of gold, the socket offers excellent electrical conductivity and resistance to corrosion. The housing is made from liquid crystal polymer, providing robust mechanical strength and thermal stability up to 125°C.

This PCB socket supports a current of 2.4 A per pin when powering six adjacent pins, making it suitable for medium current electronic applications. Its solder termination type allows for secure and permanent PCB mounting, while its straight orientation and surface mount style facilitate ease of assembly in compact PCB layouts.

The SOLC series socket also supports more than 100 mating cycles, ensuring durability in repeated use scenarios. Designed to operate in a broad temperature range from -55°C to 125°C, it is suitable for various industrial, manufacturing, and electronic assembly applications, including embedded systems, communication equipment, and instrumentation.

Single row, 40 female contacts with 1.27 mm pitch for precise connection. Phosphor bronze contacts plated with 0.25 μm gold for reliability and conductivity. Liquid crystal polymer housing ensures thermal and mechanical stability.

Solder termination for durable, secure PCB mounting. Supports 2.4 A per pin with six adjacent pins powered for medium current applications. Capable of 100+ mating cycles for extended product life. Operating temperature range from -55°C to 125°C for harsh environments.

Board-to-board connector system designed for compact electronic designs. Lead-free solderable and RoHS compliant.
