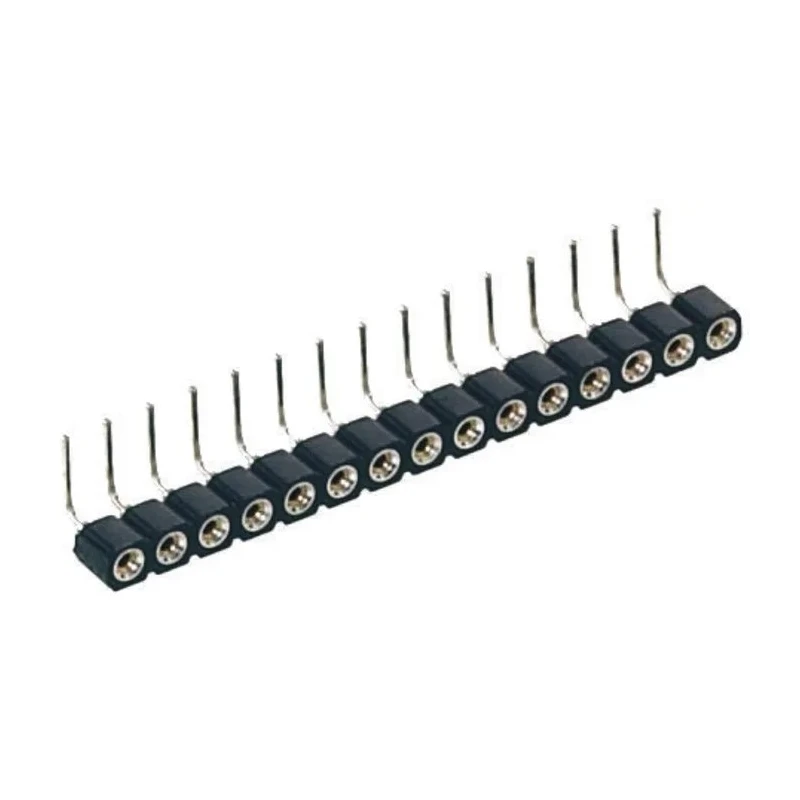

Preci-Dip 12 Way Preci-Dip Right Angle Through Hole 2.54 mm Pitch SIL Socket 100 V ac, 150 V dc, 3A 399-87-112-10-003101

Name: Preci-Dip 12 Way Preci-Dip Right Angle Through Hole 2.54 mm Pitch SIL Socket 100 V ac, 150 V dc, 3A 399-87-112-10-003101
Brand: Preci-Dip
SKU: 127225
Price: 2.13 USD
Availability: InStock



Category SIL Sockets Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	100, 150V ac
Brand	Preci-Dip
Orientation	Right Angle
Current	3A
Length	30.48mm
Depth	2.54mm
Width	2.95mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate
Contact Material	Beryllium Copper Alloy, Brass
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin, Gold
Number of Contacts	12

Key Features

Designed for 12 contacts with 3A current rating.
Features beryllium copper alloy and brass contact materials for durability.
Contact plating includes tin and gold to ensure excellent conductivity.
Supports 100 V AC and 150 V DC voltage ratings suitable for various applications.
Right angle orientation with through-hole mount provides secure PCB installation.
Housing made of fibreglass reinforced polycyclohexylenedimethylene terephthalate for robustness.
Operating temperature ranges from -55°C to 125°C accommodating harsh environments.
Termination type is solder, facilitating strong electrical and mechanical bonds.

Product Description

Preci-Dip 399-87-112-10-003101 12 Way Preci-Dip Right Angle Through Hole SIL Socket with 2.54 mm pitch is engineered for reliable and efficient electrical connections on printed circuit boards. Operating at 100 V AC and 150 V DC with a rated current of 3A, it is suitable for a broad range of industrial and electronic applications requiring precision and durability.

This SIL Socket features 12 contacts crafted from beryllium copper alloy and brass, combining excellent mechanical strength and conductivity. The contacts are plated with tin and gold, ensuring low contact resistance and enhanced corrosion resistance.

The right angle orientation and through-hole mount type provide secure and stable PCB soldering options with solder termination, increasing long-term reliability in assembly. The housing material is fibreglass reinforced polycyclohexylenedimethylene terephthalate, which offers high mechanical stability and thermal resistance.

Designed to operate effectively in temperatures ranging from -55°C to 125°C, this socket is suitable for demanding industrial, manufacturing, and electronic laboratory environments. Its compact design includes a length of 30.48 mm, width of 2.95 mm, and depth of 2.54 mm, enabling efficient space utilization on circuit boards.

Applications for this Preci-Dip socket include industrial control systems, test and measurement devices, communication equipment, and embedded electronics where secure, high-quality electrical connections are imperative.

12 contacts with 3A current capacity. Beryllium copper alloy and brass contact construction. Tinned and gold-plated contacts for enhanced performance. 100 V AC and 150 V DC voltage rating. Right angle through-hole mounting style for secure PCB integration.

Fibreglass reinforced polycyclohexylenedimethylene terephthalate housing material. Wide operating temperature from -55°C to 125°C. Solder termination type for durable connections. Compact dimensions with 30.48 mm length, 2.95 mm width, and 2.54 mm depth.
