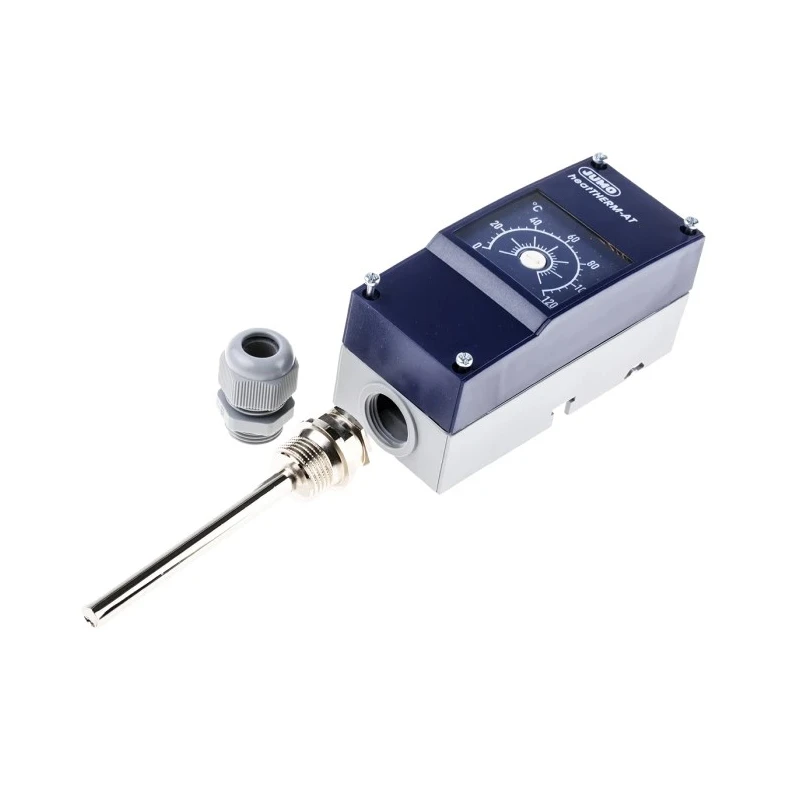

Jumo Capillary Thermostat Surface Mount Safety Temperature Limiter +120°C 603070/0002-5-026-000-25-2000-40-28-13-46-100-8-6

Jumo 603070/0002-5-026-000-25-2000-40-28-13-46-100-8-6 is a capillary thermostat designed for surface mounting, functioning as a safety temperature limiter and monitor with a maximum operating temperature of +120°C. This thermostat is engineered for industrial and automation applications requiring precise temperature control and reliable thermal safety.

The device supports a contact current rating of 16A with AC and DC voltage compatibility up to 230V, featuring screw terminal connections for secure wiring. It includes an automatic reset mechanism and a stable switch point maintained through ambient temperature compensation, ensuring consistent temperature monitoring performance.

Designed with user convenience in mind, the thermostat allows switch points to be adjusted externally. The robust IP54 rating provides protection against dust ingress and water splashes, making it suitable for harsh industrial environments. It complies with key standards including EN 14597 and the Pressure Equipment Directive, with UL 873 certification in progress.

This Jumo thermostat is part of the JUMO heatTHERM-AT series, representing high-quality temperature control solutions ideal for HVAC, manufacturing, and electrical safety systems. Manufactured in Germany, it ensures superior build quality and precision engineering.

The thermostat’s safety functions include temperature limiting and monitoring for enhanced system protection. Push-in connection technology reduces installation time while maintaining wiring reliability. Adjustable switch points provide flexibility for varied application requirements.

Ambient temperature compensation supports accurate temperature sensing even in fluctuating environments.

Explore the range of Thermostatic switches by Jumo to find compatible products for industrial temperature regulation and safety. This product is well suited for use cases in automation systems, electrical safety devices, and temperature-controlled equipment monitoring.
