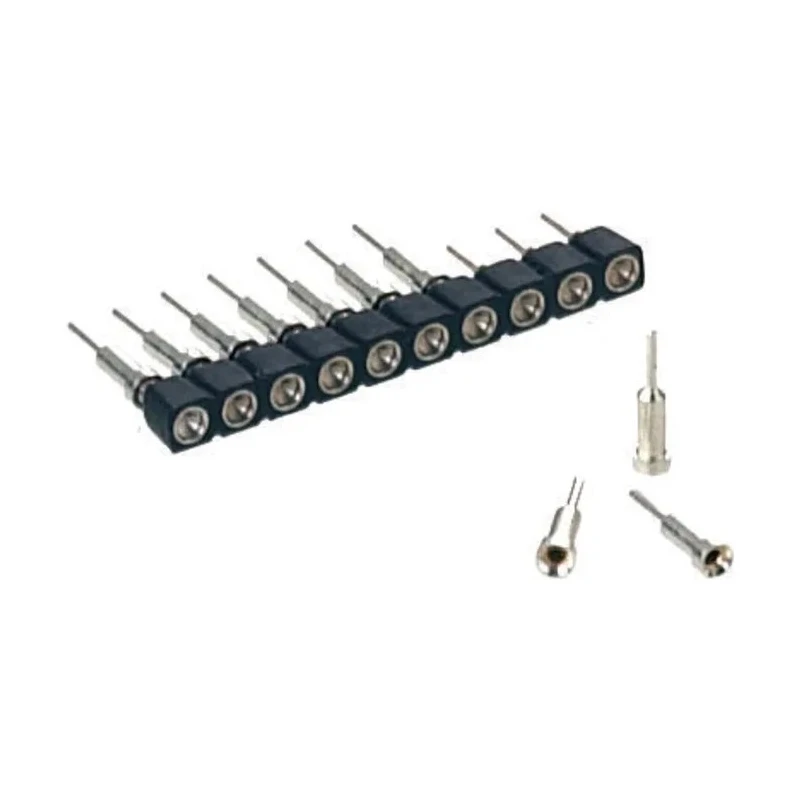

Preci-Dip 8 Way Preci-Dip Straight Through Hole 2.54 mm Pitch Socket Contact Carrier 150V dc, Solder, 3A 712-87-108-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V dc |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Length | 20.32mm |
| Depth | 4.26mm |
| Width | 1.83mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Beryllium Copper Alloy, Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 8 |
Key Features
- Constructed with Beryllium Copper Alloy and Brass for high conductivity.
- Contact surfaces plated with Tin and Gold for corrosion resistance.
- Mount type is through hole for secure PCB attachment.
- Operates between -55°C and 125°C temperature range.
- Designed with fibreglass reinforced polycyclohexylenedimethylene terephthalate housing for durability.
- Compact size with length 20.32 mm, width 1.83 mm, and depth 4.26 mm.
- Suitable for solder termination with 3.11 mm tail length on contacts.
- Swiss made with UL 94V-0 flammability standard compliance.
Product Description
Preci-Dip 712-87-108-41-001101 8 Way Preci-Dip Straight Through Hole Socket Contact Carrier is engineered for reliable electronic component connection on PCBs. This socket carrier features a 2.54 mm pitch and supports a current rating of 3A at 150V dc, suitable for a variety of industrial electronic applications.
Manufactured with high-quality Beryllium Copper Alloy and Brass, the contacts provide excellent electrical conductivity and mechanical resilience. The contact surfaces are plated with Tin and flash Gold to protect against corrosion and ensure optimal signal integrity over extended use.
The socket carrier housing is composed of fibreglass reinforced polycyclohexylenedimethylene terephthalate, offering enhanced mechanical strength and thermal stability. Designed for through hole mounting, it allows for firm and reliable solder connection onto the PCB.
Temperature specifications allow operation from a minimum of -55°C up to a maximum of 125°C, making the product robust under various environmental conditions encountered in industrial, laboratory, commercial, and manufacturing electronics assembly.
Key physical dimensions include 20.32 mm in length, 1.83 mm in width, and 4.26 mm in depth, supporting compact and efficient PCB layouts. The solder tail length is designed at 3.11 mm for ease of installation and secure termination.
Constructed with Beryllium Copper Alloy and Brass for excellent conductivity and durability. Contact surfaces plated with Tin and flash Gold enhance corrosion resistance. Fibreglass reinforced housing provides mechanical strength and thermal resistance.
Through hole mount type ensures secure PCB attachment and soldering reliability. Wide operating temperature range from -55°C to 125°C suits industrial environments. Complies with UL 94V-0 flammability standard for safety and reliability.
Compact dimensions enable space-saving PCB design. Manufactured in Switzerland assuring precision and quality.
This socket contact carrier is ideal for use in electronics manufacturing, assembly lines, laboratory equipment, and industrial controls. It enables easy and reliable mating with pin diameters of 0.47 mm, supporting efficient electrical connections in low profile PCB assemblies.
Explore more high-reliability electronic components and connectors at EnvMart for your next industrial or laboratory project.
Explore more products in our SIL Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 3A at a voltage of 150V dc.
The pitch size is 2.54 mm, making it suitable for various PCB layouts.
The contacts are made from Beryllium Copper Alloy and Brass, providing high conductivity.
It operates within a temperature range of -55°C to 125°C.
This socket contact carrier is designed for through hole mounting, ensuring secure attachment to PCBs.
The dimensions are 20.32 mm in length, 1.83 mm in width, and 4.26 mm in depth.
It requires solder termination, with a tail length of 3.11 mm for secure installation.
The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, enhancing durability and thermal stability.
This model features 8 contacts, allowing for multiple connections in a compact design.
The housing complies with the UL 94V-0 flammability standard, indicating good safety performance.
It is manufactured in Switzerland, ensuring precision and quality in its construction.
It is suitable for use in electronics manufacturing, assembly lines, laboratory equipment, and industrial controls.
