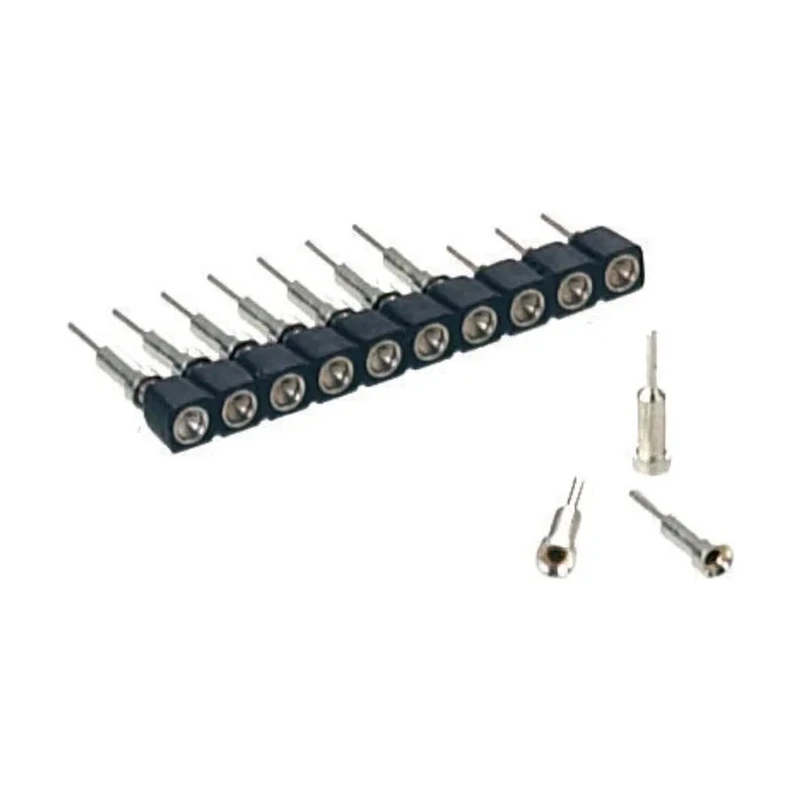

Preci-Dip 10 Way Straight Through Hole 2.54 mm Pitch Socket Contact Carrier 100 V ac, 150 V dc, 3A 712-87-110-41-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 10 Way Straight Through Hole 2.54 mm Pitch Socket Contact Carrier 100 V ac, 150 V dc, 3A 712-87-110-41-001101

Name: Preci-Dip 10 Way Straight Through Hole 2.54 mm Pitch Socket Contact Carrier 100 V ac, 150 V dc, 3A 712-87-110-41-001101
Brand: Preci-Dip
SKU: 215450
Price: 1.84 USD
Availability: InStock



Category SIL Sockets Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	100, 150V ac
Brand	Preci-Dip
Orientation	Straight
Current	3A
Length	25.4mm
Depth	4.26mm
Width	1.83mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polycyclohexylenedimethylene Terephthalate
Contact Material	Brass, Beryllium Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin, Gold
Number of Contacts	10

Key Features

Equipped with 10 contacts for efficient signal transmission.
Constructed from brass and beryllium copper alloy for durability and conductivity.
Features tin and gold plating for corrosion resistance and optimal electrical contact.
Designed with a 2.54 mm pitch and straight orientation for through-hole mounting.
Housing made from fibreglass reinforced polycyclohexylenedimethylene terephthalate for mechanical toughness.
Operates safely at voltages of 100 V AC and 150 V DC with a 3A current rating.
Termination is solder type, enabling secure PCB assembly.
Suitable for operating temperatures ranging from -55°C to 125°C.

Product Description

Preci-Dip model 712-87-110-41-001101 is a 10 Way straight through hole socket contact carrier designed for PCBs requiring reliable IC socket connections. It features a 2.54 mm pitch suitable for standard socket interfaces and supports operating voltages up to 100 V AC and 150 V DC with a current rating of 3 Amperes. The solder termination type ensures durable electrical and mechanical connection to circuit boards.

Constructed using brass and beryllium copper alloy for the contact material, it combines robustness with excellent conductivity. The plating of tin and gold provides corrosion resistance and stable performance over long-term use. The housing is composed of a fibreglass reinforced polycyclohexylenedimethylene terephthalate plastic, offering mechanical strength and thermal stability through its operating temperature range of -55°C to 125°C.

The socket carrier has compact dimensions (length 25.4 mm, width 1.83 mm, depth 4.26 mm), making it ideal for space-constrained PCB layouts. Manufactured in Switzerland, this product adheres to reliable quality and manufacturing standards. The 712 series is well known for its zero profile design, suitable for mating pin diameters of 0.47 mm and offers a solder tail length of 3.11 mm for stable mounting. It is ideal for industrial, electronics manufacturing, and laboratory applications requiring precision socket connectivity.

Equipped with 10 robust brass and beryllium copper alloy contacts. Gold and tin plating for enhanced conductivity and corrosion protection. Designed for a 2.54 mm pitch and straight through-hole mounting. Solder termination type for reliable PCB attachment.

Operates within -55°C to 125°C temperature range. Rated for 100 V AC and 150 V DC at 3A current capacity. Compact physical dimensions of 25.4 x 1.83 x 4.26 mm. Housing made of fibreglass reinforced polycyclohexylenedimethylene terephthalate for durability.

Manufactured in Switzerland under strict quality control. Ideal for electronics manufacturing, industrial equipment, and lab testing setups. Explore the extensive Preci-Dip range on EnvMart for complementary electronic components and connectors.
