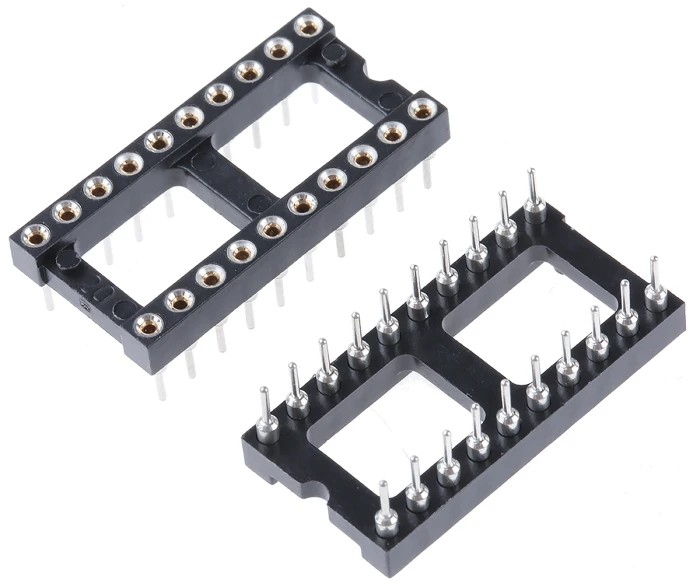

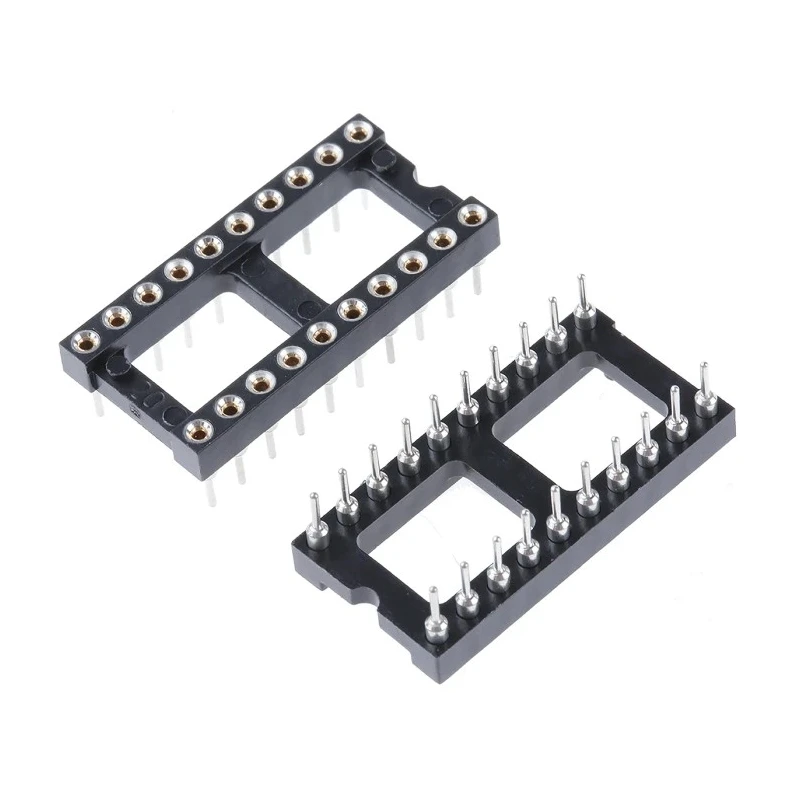

Preci-Dip DIL Socket 110 Series 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame 1A 110-87-420-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V dc |
| Brand | Preci-Dip |
| Orientation | Vertical |
| Current | 1A |
| Frame Type | Open Frame |
| Length | 25.4mm |
| Depth | 2.8mm |
| Width | 12.6mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass, Beryllium Copper Alloy |
| Series | 110 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 20 |
| Pin Type | Turned |
| Row Width | 10.16mm |
| Stock numbers | 702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar |
Key Features
- Provides 20 contacts with turned pin type for reliable connections.
- Features an open frame housing made of fibreglass reinforced Polyethylene Terephthalate.
- Contact plating includes tin and gold flash ensuring good conductivity and corrosion resistance.
- Supports solder termination for mounting on PCB through holes.
- Operates reliably in temperature range from -55°C to 125°C.
- Contact material is brass combined with beryllium copper alloy for mechanical strength.
- Series 110 sockets designed for electronic components and IC socket applications.
Product Description
Preci-Dip model 110-87-420-41-001101 is a 20 way Dual-In-Line (DIL) open frame socket designed for through hole mounting on PCBs. The 2.54 mm pitch and vertical orientation make it suitable for various electronic component connections in industrial, laboratory, and manufacturing electronic assembly applications.
The socket features turned pins with tin and gold plating, housed in a fibreglass reinforced Polyethylene Terephthalate frame ensuring durability and resistance to mechanical stress. It safely operates up to 1A current and 150V dc voltage, withstanding temperatures from -55°C to 125°C.
Its compact dimensions and 10.16 mm row width support precise fitting in circuits. The brass and beryllium copper alloy contacts provide excellent electrical reliability and mechanical strength.
Preci-Dip 110 Series sockets cater to precision electronic engineering demanding robust and reliable DIL connections. They are suitable for use in industrial controls, laboratory instrumentation, manufacturing equipment, and other commercial electronic systems.
Provides 20 contacts with turned pin type for reliable connections. Features an open frame housing made of fibreglass reinforced Polyethylene Terephthalate. Contact plating includes tin and gold flash ensuring good conductivity and corrosion resistance.
Supports solder termination for mounting on PCB through holes. Operates reliably in temperature range from -55°C to 125°C. Dimensions are 25.4 mm length, 12.6 mm width, and 2.8 mm depth with 10.16 mm row width. Contact material is brass combined with beryllium copper alloy for mechanical strength.
Series 110 sockets designed for electronic components and IC socket applications.
This 20 way DIL socket from Preci-Dip embodies Swiss engineering excellence and precision, ideal for high-quality industrial and electronic connector applications. Browse more DIL Sockets and electronic connector solutions in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 150V dc.
This socket can safely operate at a current of up to 1A.
The socket measures 25.4 mm in length, 12.6 mm in width, and 2.8 mm in depth.
It supports solder termination for mounting on PCB through holes.
The housing is made of fibreglass reinforced Polyethylene Terephthalate, and the contacts are made of brass combined with beryllium copper alloy.
It operates reliably in a temperature range from -55°C to 125°C.
This model features 20 contacts with a turned pin type for reliable connections.
The pitch of this DIL socket is 2.54 mm.
The row width is 10.16 mm.
This socket is designed for vertical orientation.
It is suitable for electronic components and IC socket applications in industrial, laboratory, and manufacturing environments.
The country of origin for this model is Switzerland.
