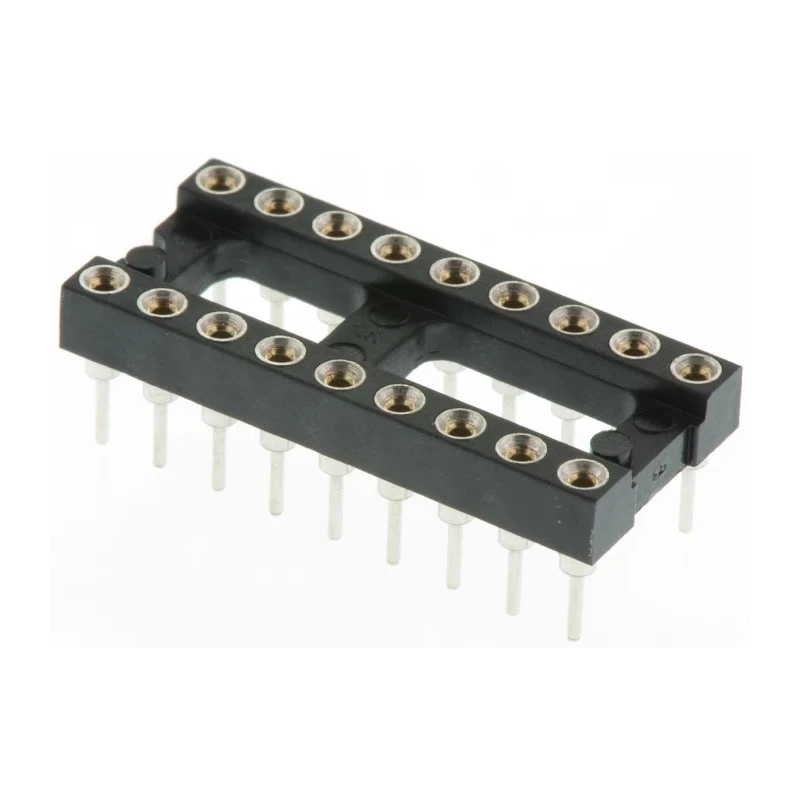

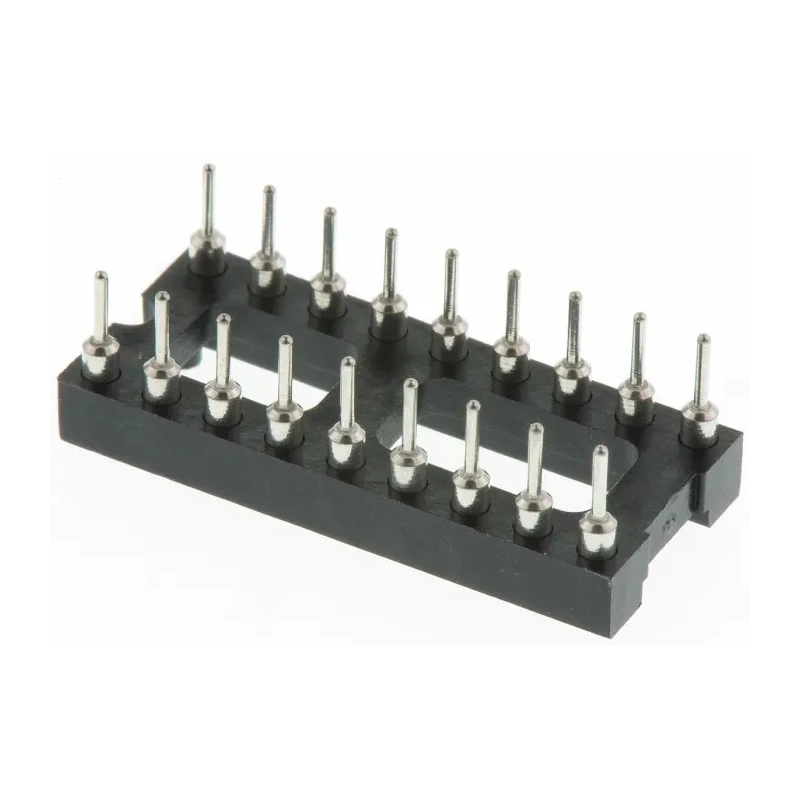

Preci-Dip 18 Way 2.54 mm Pitch Vertical Through Hole Turned Pin Open Frame DIL Socket 110-87-318-41-001101

Preci-Dip 110-87-318-41-001101 is an 18 Way Dual-In-Line (DIL) socket featuring a 2.54 mm pitch, vertical orientation, and through-hole mounting style. Its open frame design facilitates easy insertion and removal of ICs while providing mechanical stability during operation. The turned pin contacts deliver exceptional electrical conductivity, with a current rating of 1 ampere and voltage rating of 150 V DC ensuring safe performance in various electronic circuits.

The socket’s contact materials include high-quality beryllium copper alloy and brass, plated with tin and gold flash to prevent corrosion and maintain long-term reliability. The housing utilizes fibreglass reinforced polyethylene terephthalate to offer mechanical strength and thermal resistance. Suitable for applications requiring robust solder termination, it supports a row width of 7.62 mm and is designed to be mounted vertically.

With operational temperature ranges from -55°C minimum to 125°C maximum, this socket meets industrial requirements for thermal endurance. Its compact dimensions - length 22.8 mm, width 10.1 mm, and depth 2.8 mm - enable integration into tight PCB layouts without compromising functionality.

The open frame makes it suitable for prototyping, testing, and manufacturing environments where easy IC handling is desired. The socket is ideal for applications in electronics production, circuit board assembly, and repair utilities.

It complies with UL 94V-0 flammability standards to ensure safety in demanding electrical environments. Stock numbers without center bars include 702-0691, 702-2704, and others; versions with center bars are separately numbered, allowing choice per application needs.

If you require a reliable IC socket for vertical mounting with high-quality materials and precise dimensions, this Preci-Dip 110 Series DIL socket is an excellent solution. Environmentally robust and industry-grade, it supports demanding electronics manufacturing and testing applications. Explore more in our Electronics & Electricals catalog under DIL Sockets for matched accessories and complementary components to aid your electronic design and repair tasks.
