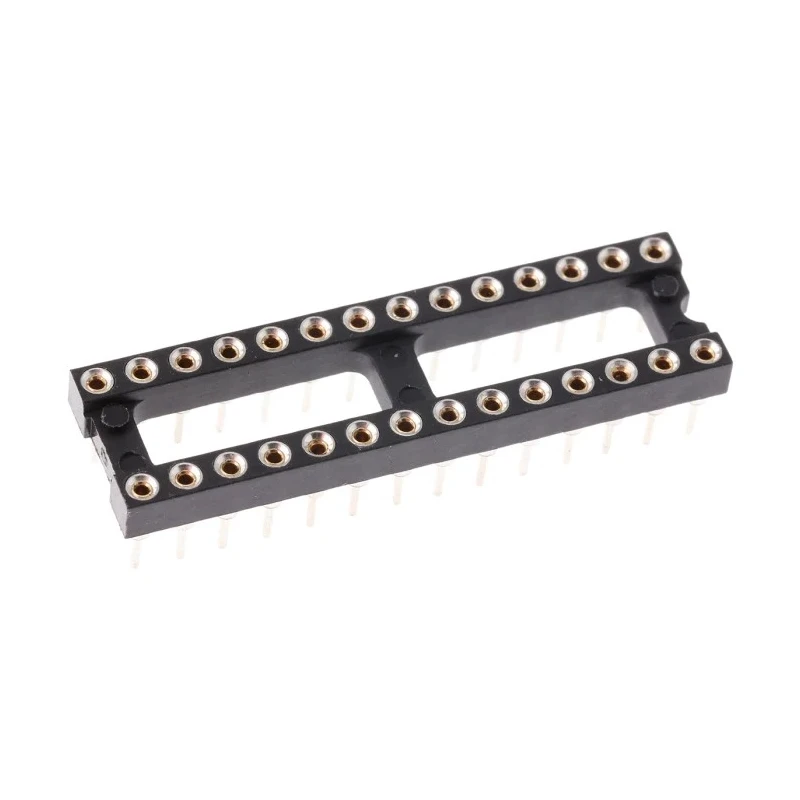

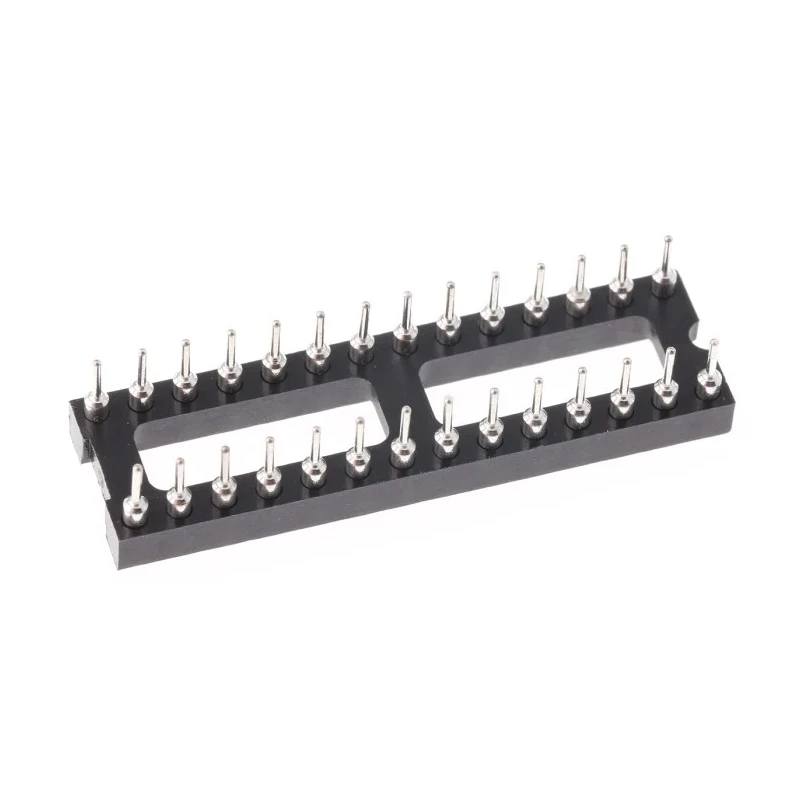

Preci-Dip 110 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-328-41-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 110 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-328-41-001101

Name: Preci-Dip 110 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-328-41-001101
Brand: Preci-Dip
SKU: 215420
Price: 3.05 USD
Availability: InStock



Category DIL Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V dc
Brand	Preci-Dip
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	35.5mm
Depth	2.8mm
Width	10.1mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass, Beryllium Copper Alloy
Series	110
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin, Gold
Number of Contacts	28
Pin Type	Turned
Row Width	7.62mm
Stock numbers	702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar

Key Features

The socket has 28 contacts with a 2.54 mm pitch.
Mount type is through hole with turned pins ensuring secure PCB connection.
Supports a nominal current rating of 1A at 150V DC voltage.
The open frame design and vertical orientation facilitate easy circuit testing and assembly.
Operating temperature range spans from -55°C to 125°C.
Contact materials include brass and beryllium copper alloy for conductivity and durability.
Pin contacts are tin and gold plated for enhanced corrosion resistance and signal reliability.
Housing is made from fiberglass reinforced polyethylene terephthalate providing mechanical and thermal stability.

Product Description

Preci-Dip 110-87-328-41-001101 is a high precision 28 Way Through Hole Turned Pin Open Frame DIL Socket featuring a 2.54 mm pitch and vertical orientation.

This socket is engineered using quality brass and beryllium copper alloy contacts with tin and gold plating to ensure excellent electrical performance and long-lasting mechanical strength.

The open frame design allows easy access for in-circuit testing and facilitates installation on printed circuit boards (PCBs) through the through hole mount type. Operating temperature ranges from -55°C up to 125°C, making this suitable for demanding industrial electronic applications.

Its fiberglass reinforced polyethylene terephthalate housing provides mechanical rigidity and thermal resistance for reliable operation under various conditions. Dimensions are compact, measuring 35.5 mm length, 10.1 mm width, and 2.8 mm depth with a row width of 7.62 mm, ideal for space-efficient PCB layouts.

The socket supports a current rating of 1A and voltage rating of 150V DC for robust electrical performance. Its 28 contacts ensure versatility for interfacing multiple circuit lines or devices. Contact plating with tin and gold flash enhances longevity and connectivity reliability.

Vertical orientation and through hole mount type provide sturdy and established mechanical and electrical bonds. Open frame construction facilitates air circulation and heat dissipation in electronic assemblies. This Preci-Dip 110 series DIL socket is manufactured in Switzerland, reflecting high-quality standards for electronics components.

It is suitable for industrial, laboratory, manufacturing, and commercial electronic device assemblies requiring reliable connector interfaces. Explore more DIL Sockets and related electronic components at EnvMart for your precision engineering needs.
