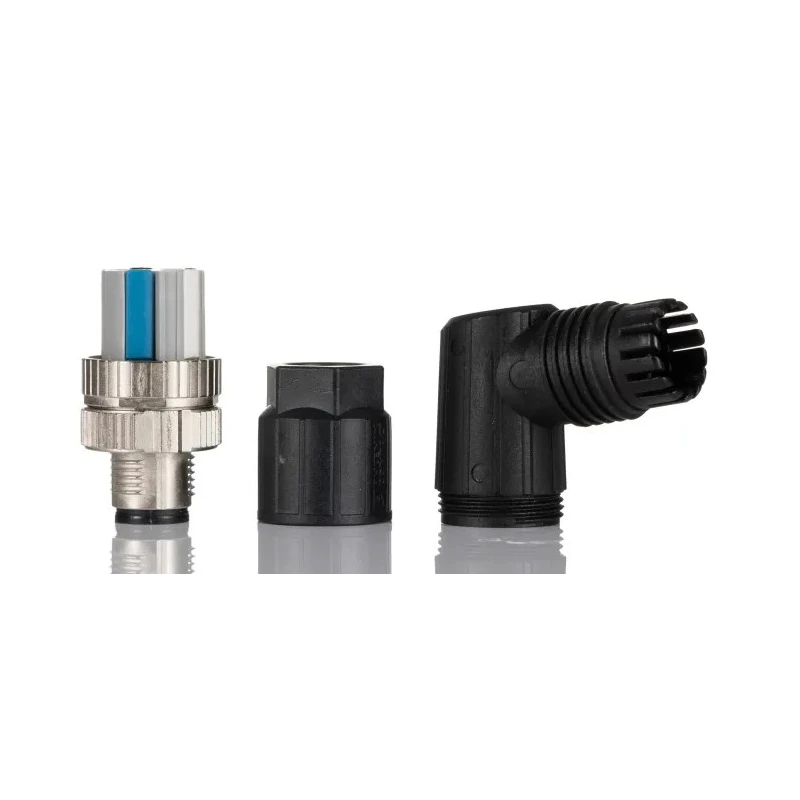

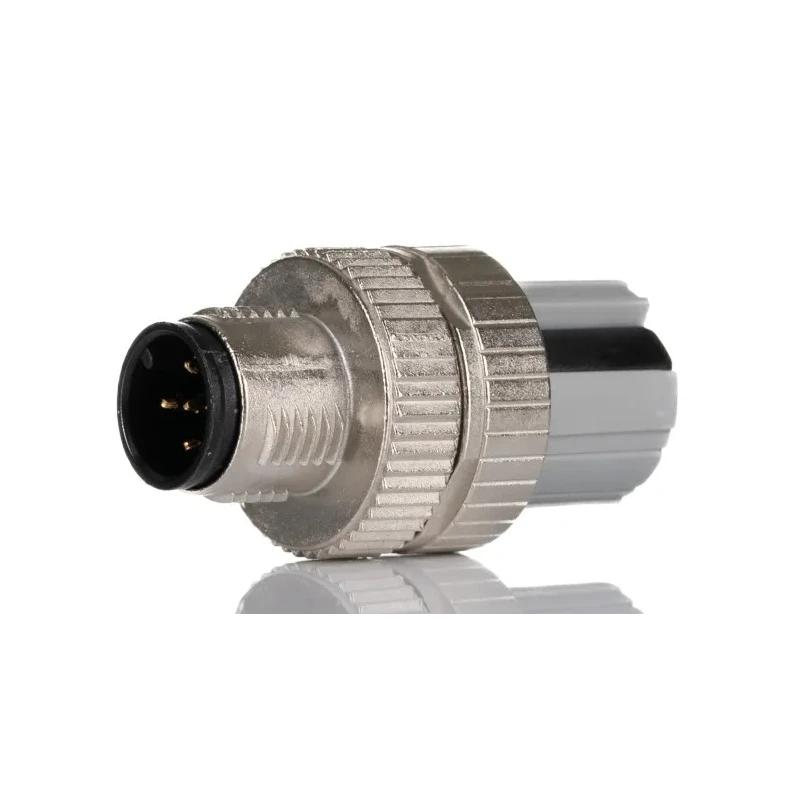

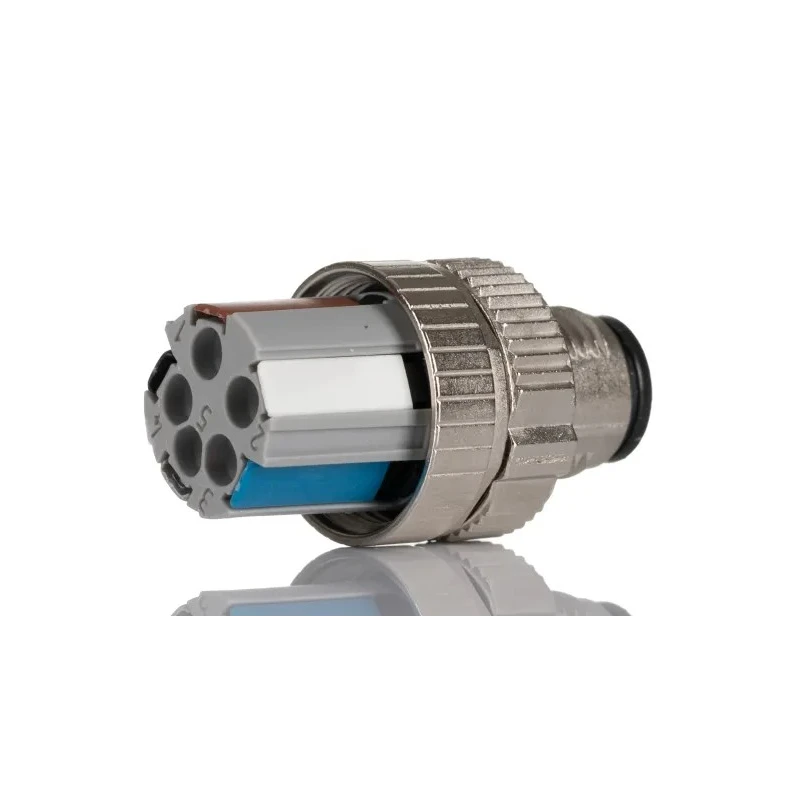

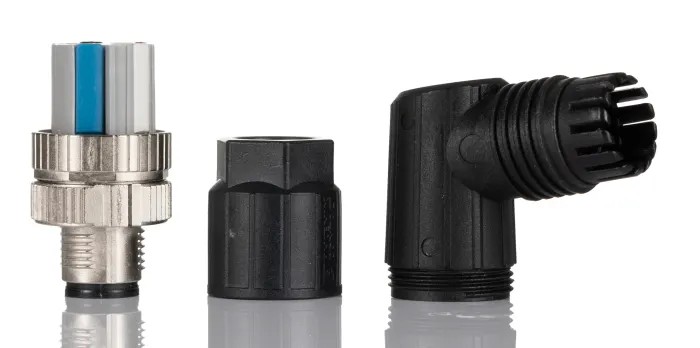

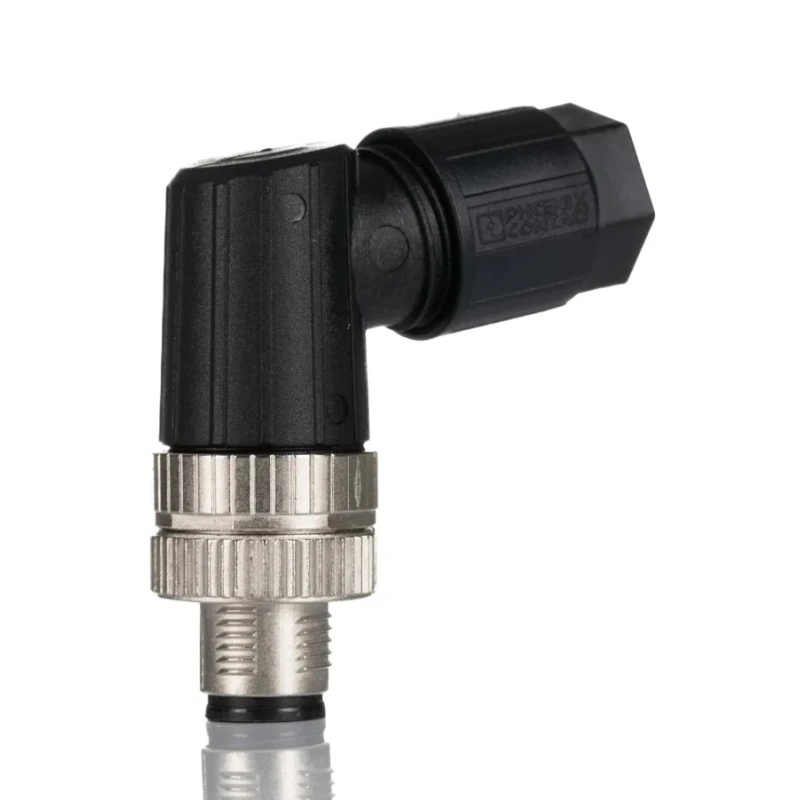

Phoenix Contact Circular Connector 5 Contacts Cable M12 Socket Male IP65 IP67 SACC Series 1424651
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 48, 60V |
| Brand | Phoenix Contact |
| Orientation | Right Angle |
| Current | 4A |
| Model | 1424651 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | CuSn |
| Series | SACC |
| Termination Type | Push-in |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Nickel over Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 15 |
| Mating Type | A Coded |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | A |
| Flexible | connectors for on-site assembly |
Key Features
- Rated for 48V AC and 60V DC voltage operation.
- Supports current up to 4A with push-in termination for quick wiring.
- Right angle orientation and A-coded for correct mating.
- Housing made of durable polymer with nickel over gold-plated CuSn contacts.
- Operating temperature range from -40°C to +85°C suitable for harsh environments.
- Threaded M12 screw locking for secure connection and SPEEDCON fast locking system.
- Lightweight design of 23 grams to minimize strain on cables.
- Protection against dust and water ingress with IP67 rating, allowing submersion up to 1 meter.
Product Description
Phoenix Contact 1424651 circular connector is a high-quality industrial component designed for reliable data and signal transmission in demanding environments. This 5-contact cable mount connector features a male socket with M12 size and right angle orientation, providing secure and standardized interconnection in automated machinery, robotics, and process control systems.
The connector is rated for nominal voltages of 48V AC and 60V DC and can safely carry currents up to 4 amperes. It is constructed with copper-tin (CuSn) contacts plated with nickel over gold to ensure excellent conductivity and corrosion resistance. The polymer housing enhances mechanical strength and chemical resistance.
Designed to withstand harsh conditions, this connector operates reliably across a wide temperature range from -40°C to +85°C. The IP65 and IP67 rated sealing offers dust-tight protection and waterproofing up to 1 meter depth, making it suitable for outdoor and wet environments.
Installation and wiring are simplified using push-in termination technology and the SPEEDCON quick locking mechanism with a threaded M12 screw lock. The lightweight design at approximately 23 grams ensures minimal mechanical load on cables and assemblies.
These connectors are ideal for industrial automation, machine building, assembly lines, HVAC controls, and other applications requiring robust and flexible circular cable connectors. Field use and on-site assembly are supported due to their modular construction and abrasion-resistant NBR seals that prevent contaminant ingress.
Rated for 48V AC and 60V DC operation with 4A current. Push-in connection for tool-free and quick wiring. High IP65/IP67 protection ensures dust and water resistance. Robust polymer housing with nickel-gold plated CuSn contacts.
SPEEDCON fast locking system enhances installation speed. Right angle, A-coded design for reliable and correct mating. Wide temperature tolerance from -40°C to +85°C for industrial environments. Lightweight at approximately 23 grams for ease of handling.
Flexible for on-site assembly with abrasion-resistant seals.
Explore our range of Phoenix Contact Industrial Circular Connectors for professional and durable electrical interconnections. Ideal for applications in industrial automation, robotics, manufacturing, and more. Discover more high-quality connectors and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 48V AC and 60V DC voltage operation.
It can safely carry currents up to 4A.
The connector has an IP65 and IP67 rating, providing protection against dust and water ingress, including submersion up to 1 meter.
The operating temperature range is from -40°C to +85°C, making it suitable for harsh environments.
It features push-in termination for quick and tool-free wiring.
The housing is made of durable polymer, and the contacts are copper-tin (CuSn) plated with nickel over gold.
This connector has a right angle orientation, which aids in space-saving installations.
The connector weighs approximately 23 grams, minimizing strain on cables.
It features 5 contacts, designed for reliable data and signal transmission.
The connector is A-coded for correct mating, ensuring reliable connections.
The country of origin for this connector is Germany.
