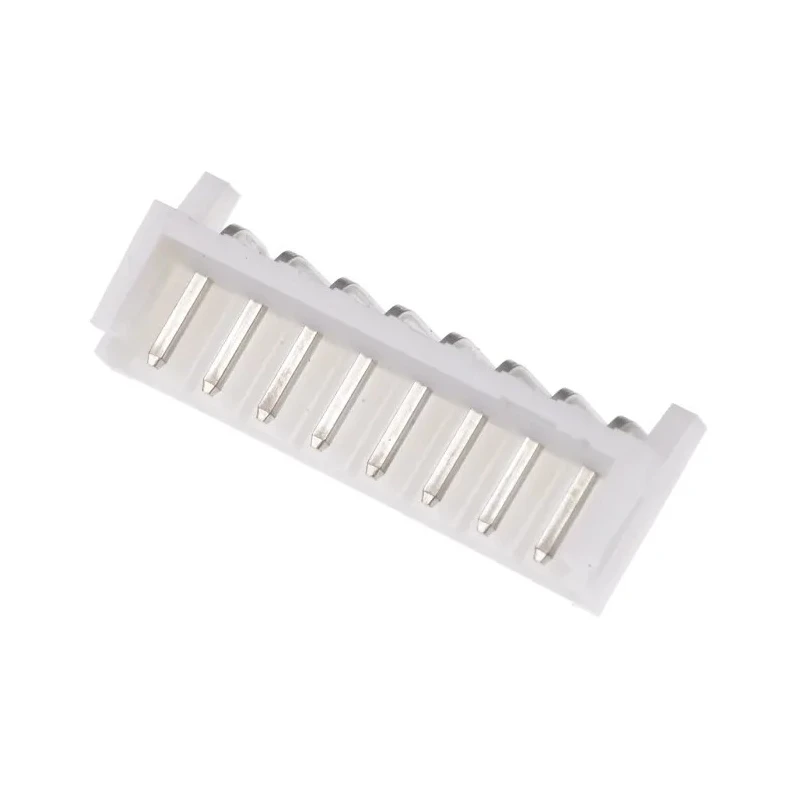

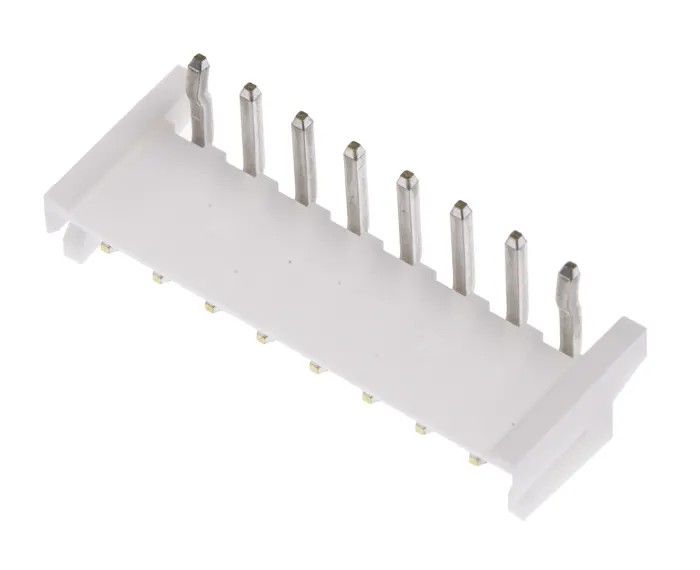

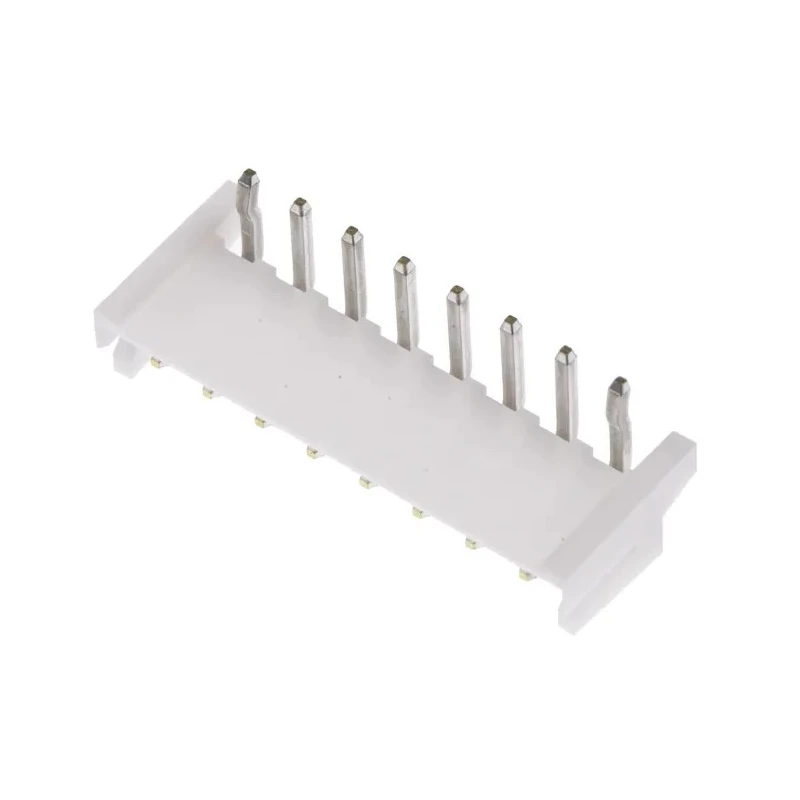

JST EH Series Right Angle Through Hole PCB Header 8 Contacts 2.5mm Pitch 1 Row Shrouded S8B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST EH Series Right Angle Through Hole PCB Header 8 Contacts 2.5mm Pitch 1 Row Shrouded S8B-EH (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S8B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

The shrouded design ensures secure connections and correct polarisation.
Housing material is durable polyamide for long-lasting use.
Contact material is brass with tin plating for reliable conductivity.
Suitable for wire-to-board connector system with solder termination.
Operates reliably between -25°C to 85°C temperature range.
Rated current is 3 amperes with a maximum voltage of 250 volts.
Mating pin length of 3.2 mm improves connectivity stability.
Right angle orientation allows space-saving PCB mounting.

Product Description

JST S8B-EH (LF) (SN) EH Series right angle through hole PCB header is engineered for robust and reliable PCB connections in electronic assemblies. Featuring 8 male contacts arranged in a single row with a 2.5 mm pitch, this shrouded header ensures correct polarisation and reduces mis-mating risks.

The housing is made from polyamide, providing high durability and electrical insulation suitable for rigorous industrial environments. Its brass contacts with tin plating deliver excellent conductivity and corrosion resistance.

This connector supports a wire-to-board system and utilizes solder termination type for secure and effective electrical connections. It operates efficiently within temperatures ranging from -25°C to 85°C and is rated for a current of 3A and voltage up to 250V, making it suitable for various electronic and industrial applications.

The right angle orientation offers compact PCB mounting solutions, optimizing space and improving assembly efficiency. The mating pins have a length of 3.2 mm to ensure stable connections during repeated mating cycles. Its shrouded design enhances durability and connection safety.

The shrouded design ensures secure connections and correct polarisation. Housing material is durable polyamide for long-lasting use. Contact material is brass with tin plating for reliable conductivity. Suitable for wire-to-board connector system with solder termination.

Operates reliably between -25°C to 85°C temperature range. Rated current is 3 amperes with a maximum voltage of 250 volts. Mating pin length of 3.2 mm improves connectivity stability. Right angle orientation allows space-saving PCB mounting.

Designed for industrial, electronic, and manufacturing PCB assembly applications.

This PCB header is ideal for applications in electronics manufacturing, industrial control systems, communication devices, and other high-performance electronic equipment, providing reliable and efficient interconnections.
