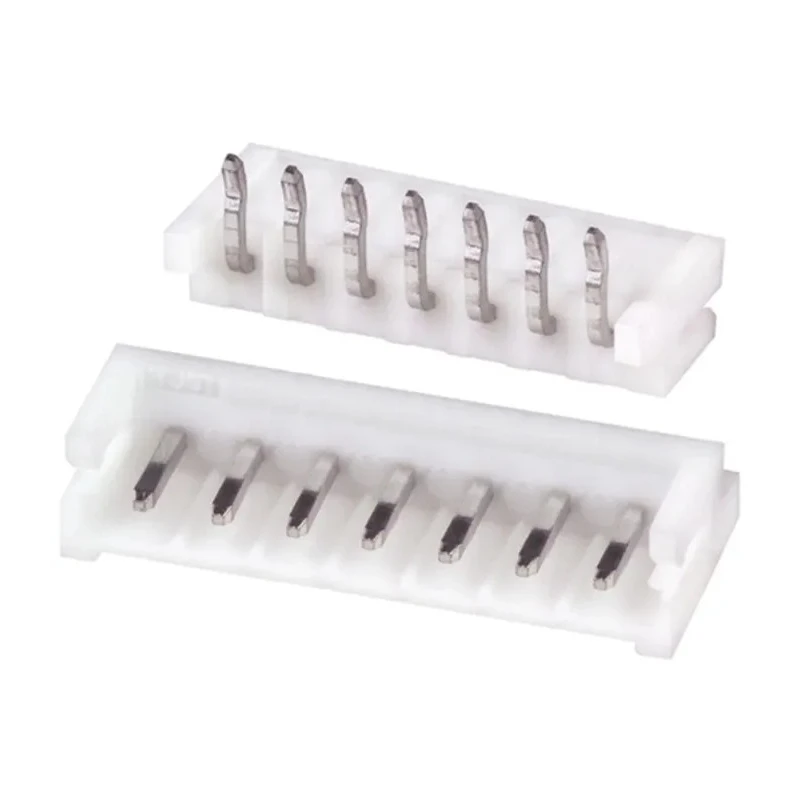

JST EH Series Right Angle Through Hole PCB Header 7 Contacts 2.5mm Pitch 1 Row Shrouded S7B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST EH Series Right Angle Through Hole PCB Header 7 Contacts 2.5mm Pitch 1 Row Shrouded S7B-EH (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S7B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

The header operates reliably within a voltage of 250V and a current rating of 3A.
It features a polyamide housing material ensuring durability and electrical insulation.
The contact pins are made of brass with tin plating for corrosion resistance.
This connector is designed for wire-to-board connections and has a solder termination type.
The mating pin length measures 3.2 mm, allowing secure and precise connections.
It functions within a temperature range of -25°C to 85°C, suitable for diverse environments.
The integral keying design ensures correct polarization to prevent mis-mating.
The product is shrouded for added protection and equipped with a right-angle orientation.

Product Description

JST S7B-EH (LF) (SN) EH Series Right Angle Through Hole PCB Header is a high-quality electronic component designed for reliable wire-to-board connections. This single-row PCB header features 7 male contacts spaced at a pitch of 2.5 mm, making it suitable for compact and precise applications.

The header's polyamide housing ensures electrical insulation and mechanical durability, while the brass contacts with tin plating provide excellent conductivity and corrosion resistance. The integral keying prevents incorrect mating, enhancing connection safety and reliability.

Designed for through hole mounting, this component is solder terminated for secure attachment to printed circuit boards. It supports a voltage rating of 250V and a current rating of 3A, meeting typical requirements in electronics manufacturing, industrial controls, and communication devices.

Operating temperature ranges from -25°C up to 85°C, accommodating various environmental conditions in industrial and laboratory settings. The right-angle orientation contributes to optimized PCB layouts and efficient space usage. Shrouding offers additional protection to the contacts from mechanical and environmental damage.

Applications include industrial electronic equipment, control panels, communication devices, and embedded systems requiring reliable, compact, and durable connectors. The header is designed for a seamless wire-to-board connection, ensuring ease of assembly and maintenance.

The solder termination provides a robust and permanent mounting solution. The compact 2.5 mm pitch supports dense PCB designs. The male contact gender and 3.2 mm mating pin length assure compatibility with corresponding connectors.

The product suits industrial, laboratory, and commercial electronic manufacturing environments. Set contains one PCB header with 7 contacts. Explore the full range of JST EH Series connectors and related accessories on EnvMart for your electronic component sourcing needs.
