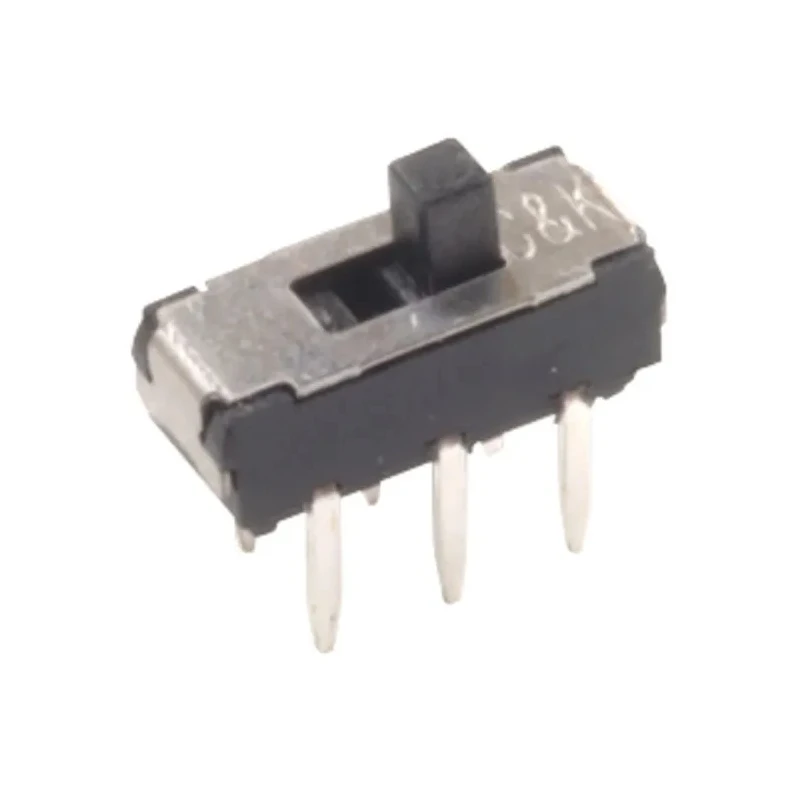

C & K Through Hole Slide Switch DPDT Latching 300mA Nylon Actuator 6V DC 9mm Length JS202011CQN
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Length | 9mm |
| Model | JS202011CQN |
| Depth | 3.5mm |
| Width | 3.3mm |
| Mount Type | Through Hole |
| Series | JS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | PC Terminal |
| Standards/Approvals | RoHS, UL |
| Switch Operation | Latching |
| Contact DC Voltage | 6V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 5000Cycles |
| Actuator Material | Nylon |
Key Features
- Double Pole Double Throw (DPDT) contact configuration provides versatile circuit switching.
- Rated for 300mA switch contact current and 6V DC contact voltage.
- Nylon actuator material ensures durability and reliable mechanical performance.
- Compact size with 9mm length, 3.3mm width, and 3.5mm depth saves PCB space.
- Latching switch mechanism for stable ON-ON operation.
- Mount type is through hole with PC terminal connections for secure PCB mounting.
- Certified to RoHS and UL standards ensuring quality and safety compliance.
- Mechanical life of 5000 cycles supports repeated switching applications.
Product Description
The C & K JS202011CQN through hole slide switch is a surface mount double pole double throw (DPDT) latching switch, tailored for compact and reliable circuit control. With a 300mA current rating and 6V DC contact voltage, this mechanical slider switch enables discrete and stable switching of electrical pathways.
The switch features a robust nylon actuator that supports mechanical latching in an ON-ON configuration, delivering dependable operation across its rated life of 5000 cycles. Its compact dimensions - 9mm length, 3.3mm width, and 3.5mm depth - make it suitable for densely packed printed circuit boards where space efficiency is critical.
This product complies with RoHS and UL standards, ensuring environmental and safety compliance. Operating reliably in temperatures from -40°C to 85°C, it is well suited for industrial, telecommunications, computer peripherals, instrumentation, and thermostat selector switch applications.
Double Pole Double Throw (DPDT) contact configuration provides versatile circuit switching. 300mA contact current rating at 6V DC contact voltage. Latching ON-ON switch operation ensures stable and repeatable switching states.
Through hole mount with PC terminal type assures secure installation on PCB. Durable nylon actuator material for extended mechanical performance. Compact form factor conserves PCB real estate with 9mm length. Mechanical life rating of 5000 cycles supports frequent switching use cases.
Compliance with RoHS and UL quality and safety standards. Wide service temperature range from -40°C to 85°C. Commonly used in telecommunication devices, instrumentation, peripherals, and thermostat selection systems. Explore more Slide Switch products in the Electronics & Electricals category at EnvMart to find suitable controls for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a switch contact current of 300mA and a contact voltage of 6V DC.
This model has a length of 9mm, a width of 3.3mm, and a depth of 3.5mm, making it compact for PCB applications.
It uses a through hole mount type with PC terminal connections for secure installation on printed circuit boards.
The mechanical life of this switch is rated for 5000 cycles, supporting repeated switching applications.
The actuator material is nylon, which contributes to its mechanical performance.
It operates reliably within a temperature range of -40°C to 85°C.
It is certified to RoHS and UL standards, ensuring quality and safety compliance.
This model features a latching switch operation in an ON-ON configuration, providing stable switching states.
It is commonly used in telecommunications, instrumentation, computer peripherals, and thermostat selector switch applications.
The series name of this switch is JS, indicating its product line within the C & K brand.
The switch features a PC terminal type, which is suitable for through hole mounting.
