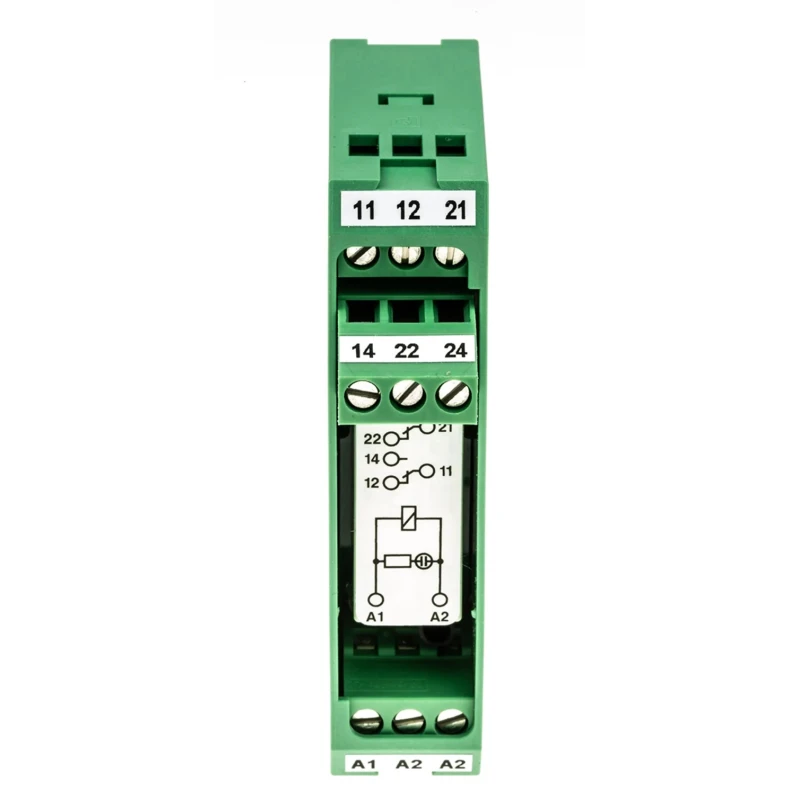

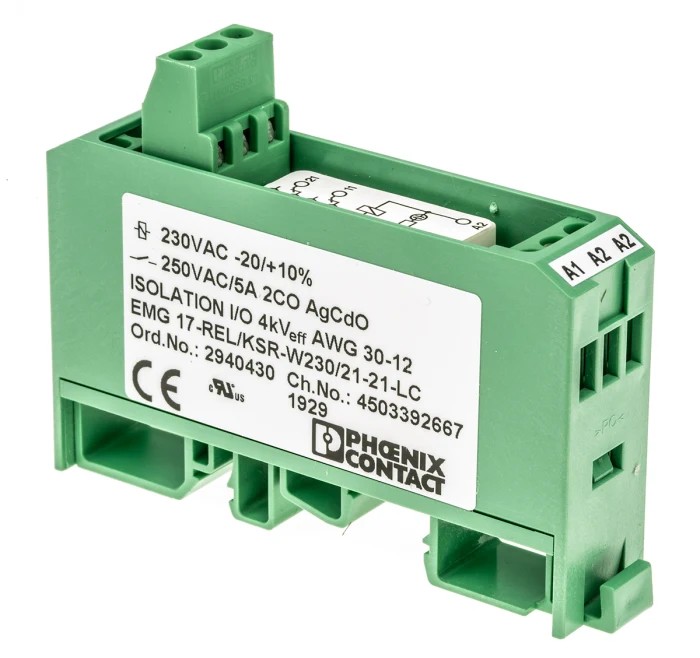

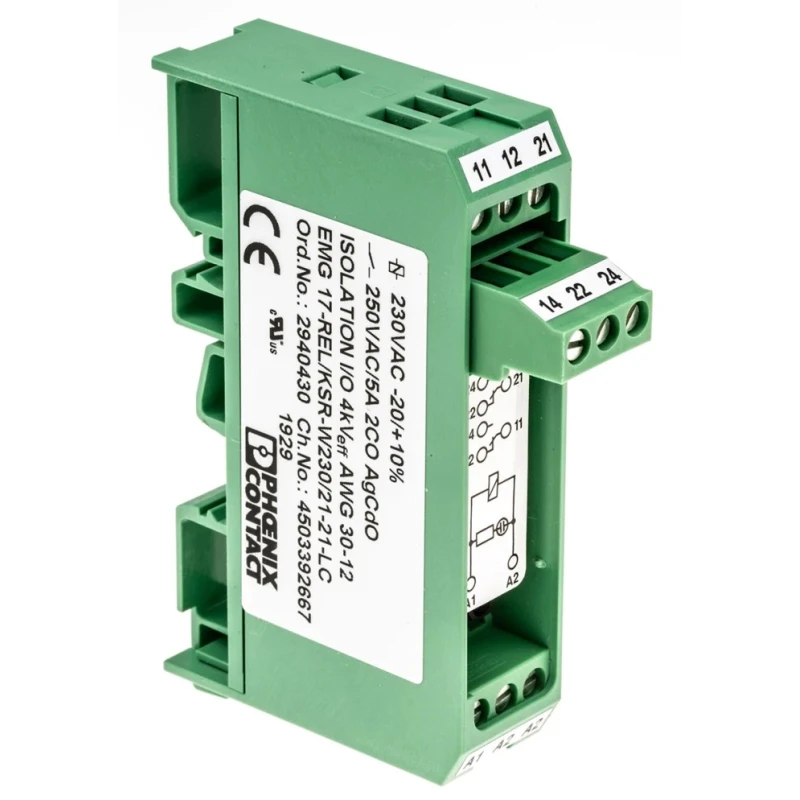

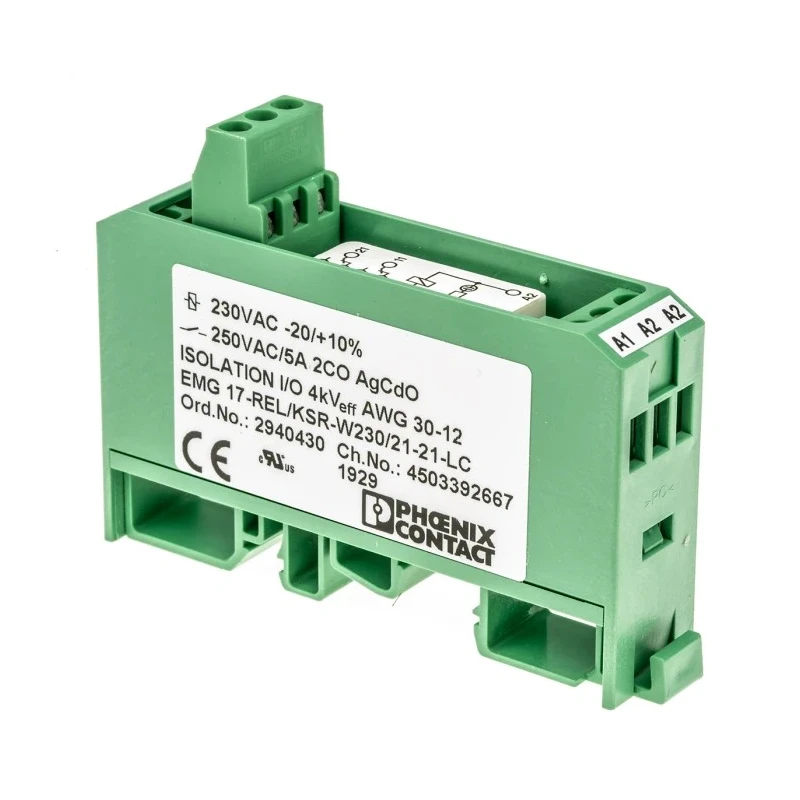

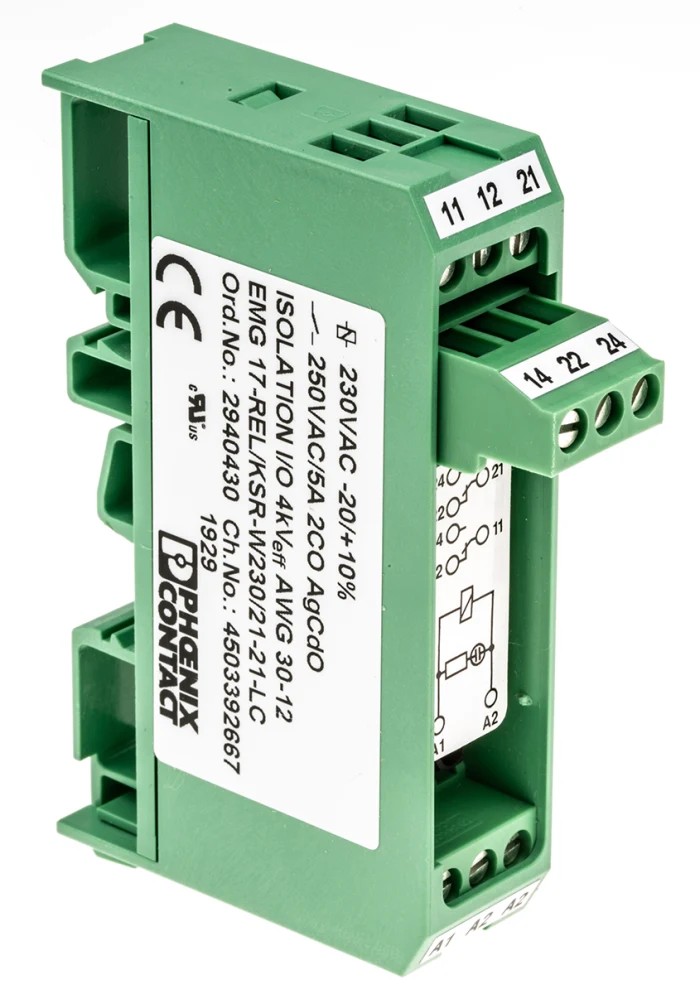

Phoenix Contact DIN Rail Interface Relay, 230V ac Coil, 6A Switching Current, DPDT 2940430
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 62.5mm |
| Length | 75mm |
| Model | 2940430 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | EMG 17-REL/KSR-W230/21-21-LC |
| Contact Configuration | DPDT |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | UL, EAC |
| Coil Voltage | 230V ac |
| Switching Voltage | 250V ac/dc |
Key Features
- DPDT contact configuration ensures versatile switching options.

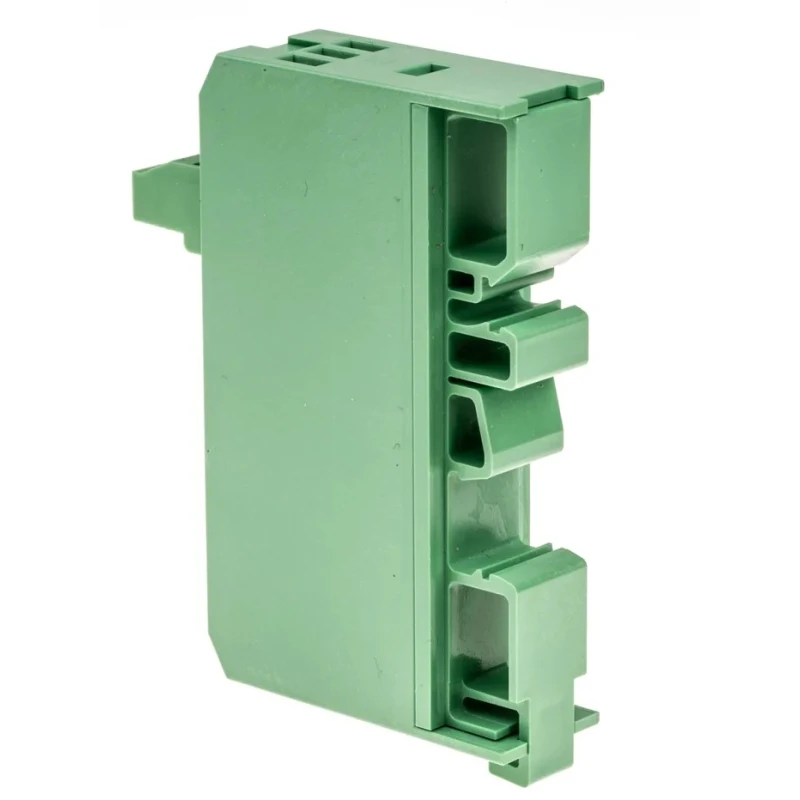

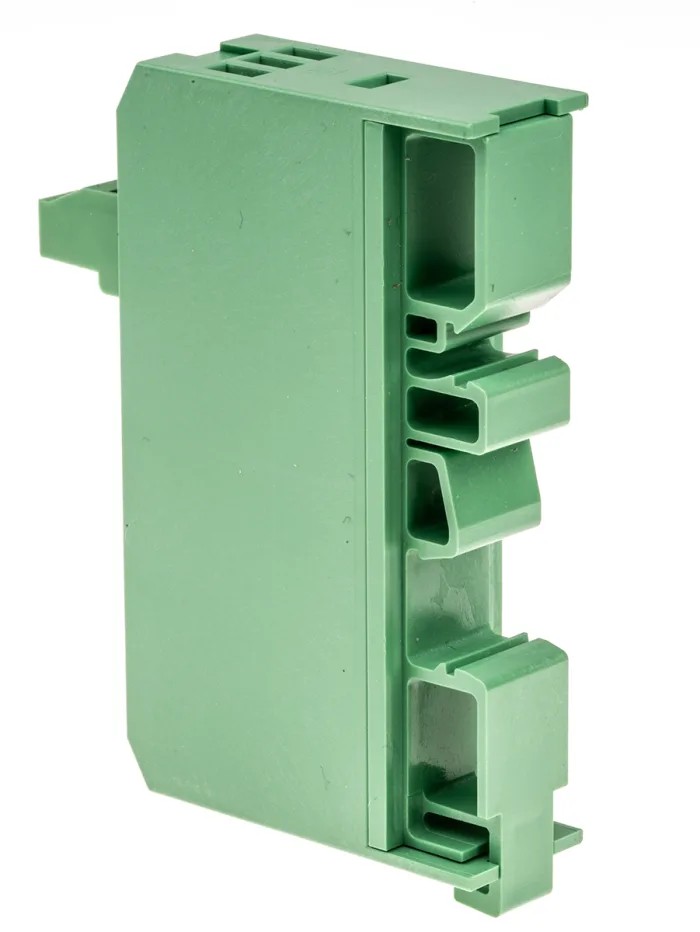

- Mounts easily on DIN rail NS 35/7.5 for convenient installation.
- Equipped with screw terminal type for secure connections.
- Supports switching voltage of up to 250V ac/dc for robust performance.
- Features an LED operating voltage display for quick status verification.
- Designed for long life expectancy with damping and polarity protection diode.
- Constructed with gold plated and silver alloy contact materials for reliable signal transmission.
- Complies with UL and EAC standards for safety and quality assurance.
Product Description
Phoenix Contact 2940430 DIN Rail Interface Relay features a 230V ac coil and a switching current capacity of 6A, designed for industrial automation and electrical systems. It serves as an interface relay module ideal for isolating and amplifying electrical signals within circuits.
The relay utilizes a DPDT contact configuration, allowing double pole double throw switching, making it suitable for diverse control applications. It is engineered for mounting on DIN rail NS 35/7.5, facilitating straightforward and standardized installation in control panels and automation cabinets.
This series employs soldered-in remanence miniature switching relays with high reliability, gold plated and silver alloy contacts to guarantee long-term signal integrity and durability. Additionally, the relay includes built-in damping and polarity protection diodes along with a yellow LED operating voltage display for easy operational status monitoring.
The relay's screw terminal connection provides secure and maintenance-friendly wiring. It is rated for a switching voltage of 250V ac/dc and a switching current of 6A, enabling it to handle small to medium electrical loads effectively.
Certified to UL and EAC standards, this device meets international safety and quality benchmarks. The product originates from Germany, reflecting high manufacturing standards. DPDT contact configuration supports flexible switching operations.
Mounts securely on DIN rail NS 35/7.5 for ease of installation. Gold plated and silver alloy contacts ensure durability and reliability. Includes damping and polarity protection diodes for enhanced performance. Equipped with LED voltage display for visual status indication.
Screw terminal connections offer reliable and straightforward wiring. Rated for 230V ac coil voltage and 6A switching current capacity. Complies with UL and EAC safety approvals for assurance.
This relay module is ideal for applications requiring signal isolation, power amplification, and voltage level adaptation across industrial, automation, manufacturing, and electrical control environments. It effectively bridges automation equipment to peripheral systems with high reliability.
Explore a broad range of Interface Relays and related electrical components on EnvMart to support your industrial automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 230V ac.
It has a maximum switching current capacity of 6A.
This model features a DPDT (double pole double throw) contact configuration.
The relay is rated for a switching voltage of up to 250V ac/dc.
It is equipped with screw terminal connections for secure and maintenance-friendly wiring.
The relay has dimensions of 75mm in length, 17.5mm in width, and 62.5mm in height.
This model is designed for mounting on DIN rail NS 35/7.5.
It complies with UL and EAC safety standards.
The product originates from Germany.
Yes, it includes built-in damping and polarity protection diodes for enhanced performance.
It features a yellow LED operating voltage display for quick status verification.
It is ideal for applications requiring signal isolation, power amplification, and voltage level adaptation in industrial and automation environments.
