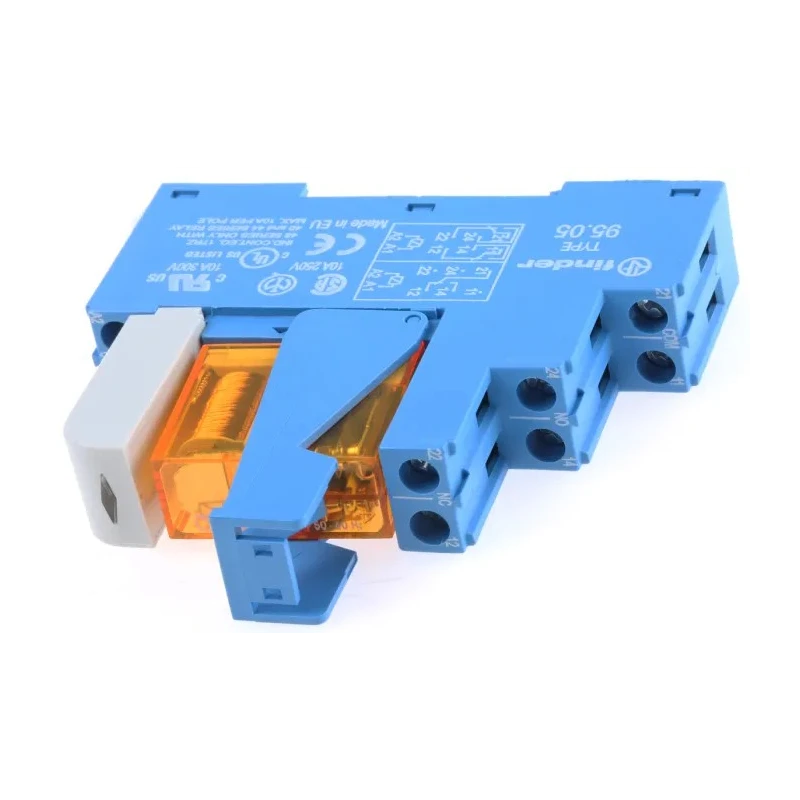

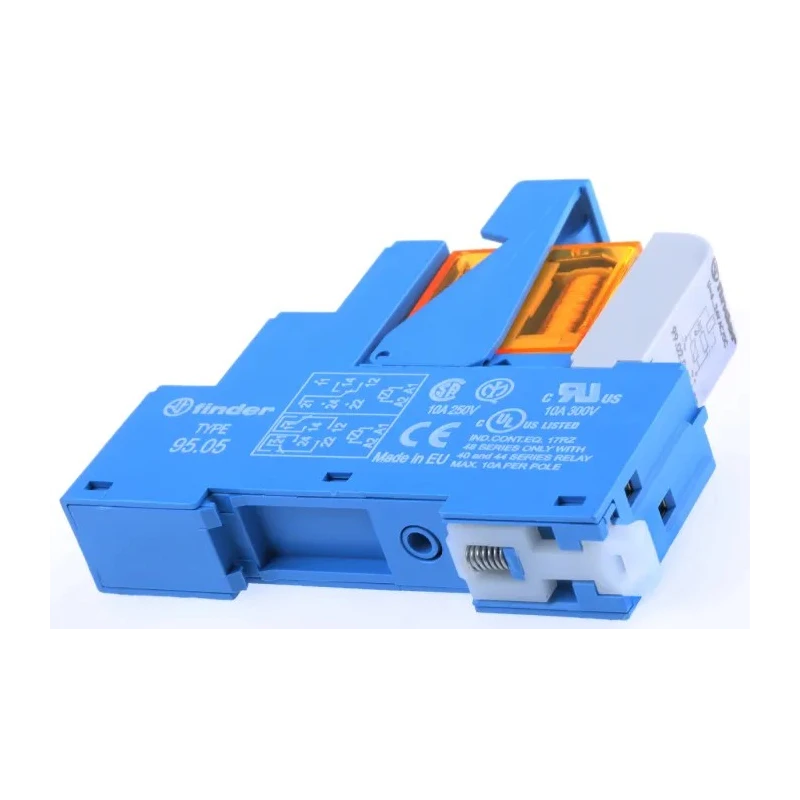

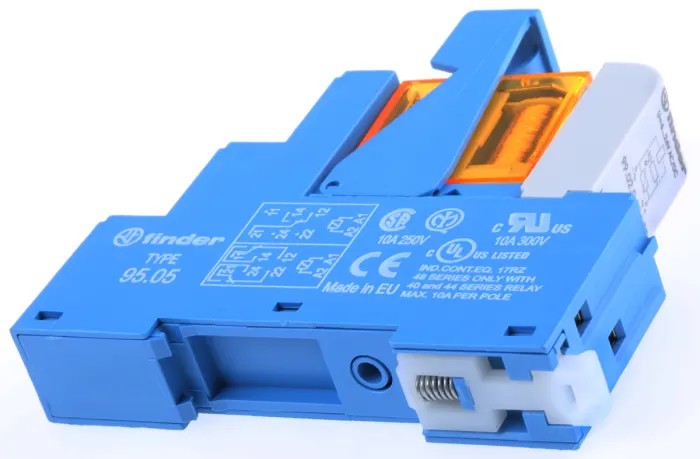

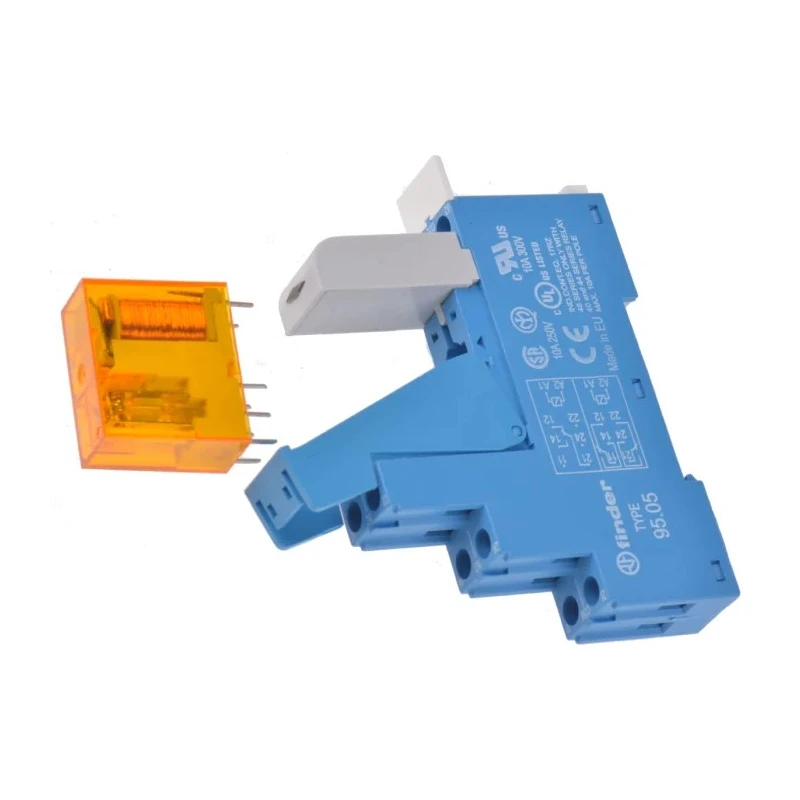

Finder 48 Series Interface Relay, DIN Rail Mount, 24V AC Coil Voltage, DPDT Contact Configuration, 8A 48.52.8.024.0060SPA
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 78.6mm |
| Length | 15.8mm |
| Model | 48.52.8.024.0060SPA |
| Width | 75.3mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 48 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Standards/Approvals | EAC, CE |
| Coil Voltage | 24V ac |
| Coil Current | 46mA |
| Switching AC Voltage | 250V ac |
| Finder Interface Relay ModuleBrand | Finder |
Key Features
- This DIN rail mount relay supports a switching current of 8A for robust performance.
- The coil current is 46mA, ensuring efficient energy consumption.
- Features silver alloy contacts that enhance durability and reliability.
- Operates reliably within temperatures from -40°C to 70°C.
- Screw terminal connections provide secure wiring and easy installation.
- Its compact dimensions (15.8 x 75.3 x 78.6 mm) optimize space in control panels.
- Complies with CE and EAC standards, guaranteeing quality and safety.
- Fast turn-off time of 12ms improves operational efficiency in control circuits.
Product Description
Finder 48.52.8.024.0060SPA Interface Relay features a 24V AC coil voltage and double-pole double-throw (DPDT) contact configuration, engineered for versatile use in automation and control systems.
This DIN rail mount device delivers a switching current rating of 8A and coil current of 46mA, providing reliable operation under demanding industrial conditions.
Constructed with silver alloy contacts, the relay ensures long-term durability and high conductivity over its life expectancy of 100,000 operational cycles. It supports a switching AC voltage of 250V AC and is suitable for a wide temperature range from -40°C up to 70°C.
The relay is equipped with screw terminal connections for secure and straightforward installation in various control panels, building automation systems, and machinery control environments.
This product meets CE and EAC quality standards, reflecting compliance with important international certifications. This relay supports an 8A maximum switching current for robust performance. A fast 12ms turn-off time enhances control responsiveness.
Screw terminal connections ensure secure wiring. Durable silver alloy contact material. Wide operating temperature range from -40°C to 70°C. Compact dimensions are optimized for DIN rail installation. Applicable in building systems, electrical distribution boards, and industrial automation.
Well-suited for control panels of hoists, cranes, and elevating machinery. Ideal for use in medical and dental equipment and shipyard applications. The Finder 48 Series Interface Relay is a reliable component for industrial automation, suited for demanding environments requiring precision switching and durability.
Explore more in the Electronics & Electricals category on EnvMart for industrial relays and interface components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V AC.
This interface relay supports a maximum switching current of 8A.
It features a double-pole double-throw (DPDT) contact configuration.
The dimensions of this relay are 15.8 mm in length, 75.3 mm in width, and 78.6 mm in height.
It operates reliably within a temperature range from -40°C to 70°C.
This unit uses screw terminal connections for secure wiring.
The coil current for this model is 46mA.
It has a switching AC voltage rating of 250V AC.
This relay complies with CE and EAC standards, ensuring quality and safety.
The turn-off time for this interface relay is 12ms.
The country of origin for this model is Italy.
This relay is suitable for applications in building automation systems, control panels of hoists, cranes, and industrial machinery.
