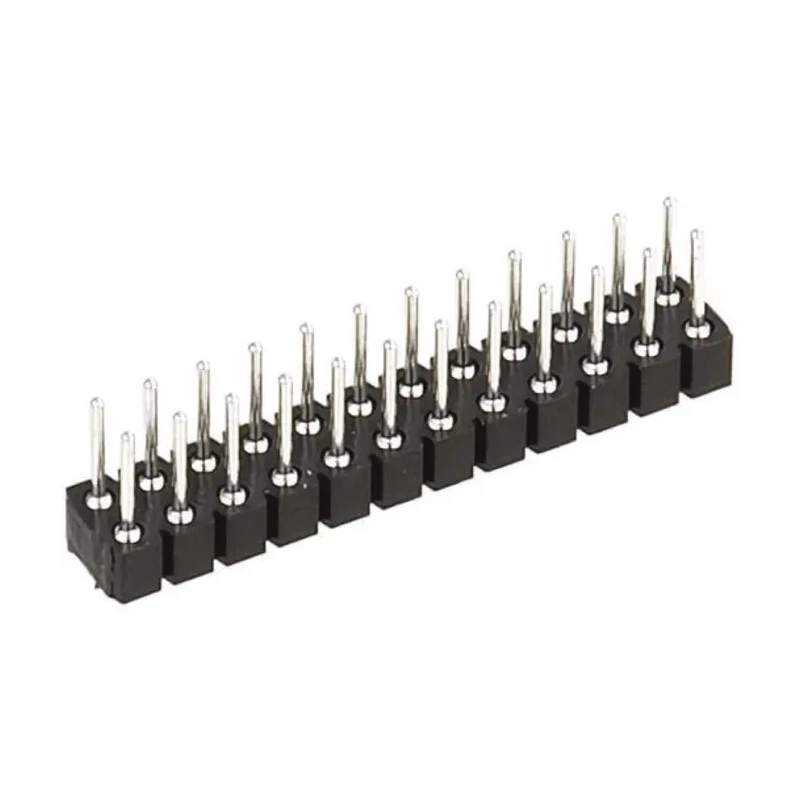

Preci-Dip 802 Series Straight Surface Pin Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded 802-80-020-30-480101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 802 Series Straight Surface Pin Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded 802-80-020-30-480101

Name: Preci-Dip 802 Series Straight Surface Pin Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded 802-80-020-30-480101
Brand: Preci-Dip
SKU: 215251
Price: 3.34 USD
Availability: InStock



Category PCB Headers Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	3A
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	802
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Rated current of 3A to support moderate power applications.
Constructed with brass contacts and tin plating for reliable conductivity.
Housing made from fibreglass reinforced polyethylene terephthalate ensures durability.
Unshrouded design with straight orientation for surface mount applications.
Operates safely within -55°C to 125°C temperature range.
Supports voltage rating of up to 150V for PCB connectivity.
Standard 2.54mm row pitch ensures compatibility with common PCB layouts.
Designed and manufactured as per industry norms in Switzerland.

Product Description

Preci-Dip 802-80-020-30-480101 Straight Surface Pin Header is part of the 802 Series of IC pin connectors, specifically designed for use in PCB and wire housing applications. This 20-contact, 2-row header offers straight surface mounting with a 2.54 mm pitch, making it ideal for dense and reliable PCB connections.

The connector features robust brass contacts plated in tin, ensuring excellent electrical performance and resistance to corrosion. The housing is crafted from fibreglass reinforced polyethylene terephthalate, providing mechanical strength and dimensional stability in various industrial and commercial environments.

It supports a maximum current of 3A and voltage of 150V, suitable for diverse electrical and electronic assemblies. Its unshrouded, male contact design facilitates easy solder termination on printed circuit boards. Operating temperature ranges from -55°C to 125°C, enabling use in demanding conditions such as industrial manufacturing, instrumentation, and automation systems.

This Preci-Dip 802 Series pin header is manufactured in Switzerland and conforms to industry standards, ensuring quality and reliability. The connector is commonly used in electronics manufacturing, assembly of industrial devices, and repair or custom builds requiring durable PCB connectivity solutions.

Rated current of 3A to support moderate power applications. Brass contact material with tin plating ensures electrical reliability. Fibreglass reinforced polyethylene terephthalate housing offers durability. Unshrouded, straight orientation suits multiple PCB layouts.

Operating temperature range from -55°C to 125°C. Voltage rating up to 150V for safe operation. Surface mount type with solder termination for easy assembly. Manufactured in Switzerland adhering to recognized standards. Suitable for industrial, laboratory, and commercial electronics use.

Explore our catalog for more PCB connectors and electronic components optimized for your design and manufacturing needs at EnvMart.

Explore more products in our PCB Headers category.
