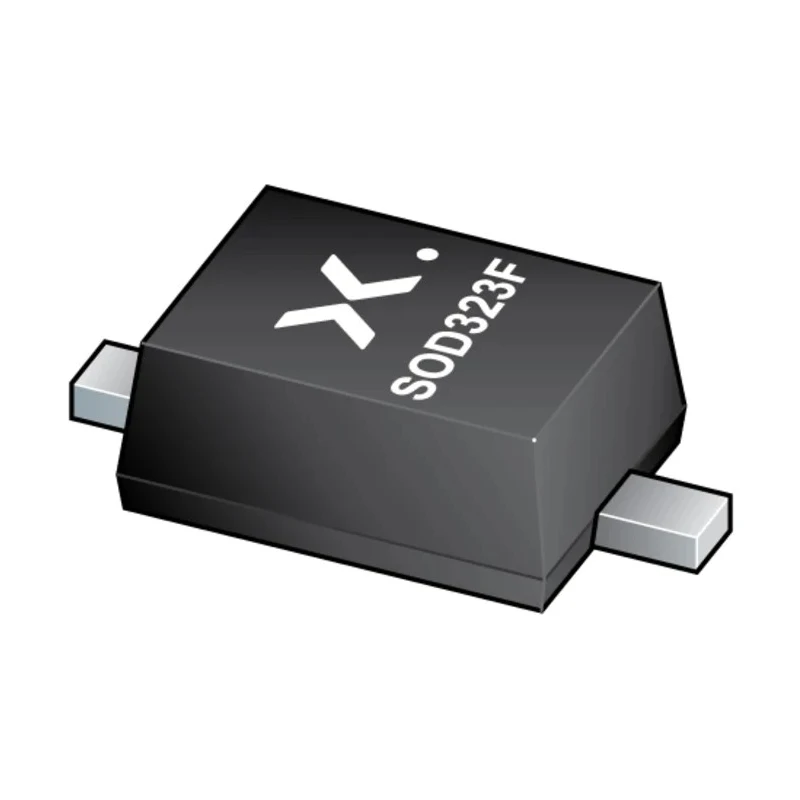

Nexperia 1.15 V Zener Diode Single 550 mW 2% Surface Mount SOD-323 BZX84J-B15,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.15 V Zener Diode Single 550 mW 2% Surface Mount SOD-323 BZX84J-B15,115

Name: Nexperia 1.15 V Zener Diode Single 550 mW 2% Surface Mount SOD-323 BZX84J-B15,115
Brand: Nexperia
SKU: 214981
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.8mm
Length	2.7mm
Model	BZX84J-B15,115
Mount Type	Surface
Series	BZX84J
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	550mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	15V
Zener Type	General Purpose
Maximum Zener Impedance	15Ω
Typical Voltage Temperature Coefficient	13mV/K
Total power dissipation	≤ 550 mW
Non-repetitive Peak reverse power dissipation	≤ 40 W
Two tolerance series	±2 % and ±5 %
Wide working voltage range	nominal 2.4 V to 75 V (E24 range)

Key Features

Maximum power dissipation of 550 mW for efficient heat handling.
±2% voltage tolerance ensures precision voltage regulation.
Compact 2-pin SOD-323 package suitable for surface mounting.
Wide operating temperature range from -55°C to 150°C.
Low reverse leakage current and Zener impedance for stable operation.
Meets automotive AEC-Q101 standard for enhanced reliability.
Non-repetitive peak reverse power dissipation up to 40 W.
Typical voltage temperature coefficient of 13 mV/K for temperature stability.

Product Description

The Nexperia BZX84J-B15,115 is a single general-purpose Zener diode designed for voltage regulation in various electronic and automotive circuits. This diode features a nominal Zener voltage of 15 V with a tight ±2% tolerance, providing reliable voltage stabilization in sensitive applications.

Packaged in a compact SOD-323 surface mount device (SMD), the diode offers a maximum continuous power dissipation of 550 mW, making it suitable for space-constrained PCB designs where efficient thermal management is necessary. Its small footprint also facilitates automated assembly processes.

The device supports broad operating temperature ranges from -55°C to 150°C, allowing use in harsh environments including industrial and automotive sectors. With a low maximum reverse leakage current of 50 nA and a maximum Zener impedance of 15 ohms, it delivers stable performance with minimal power loss.

Qualified under automotive standard AEC-Q101, the BZX84J-B15,115 diode ensures robustness and reliability for automotive applications such as voltage regulation, surge suppression, and reference voltage generation. It also features non-repetitive peak reverse power dissipation capability of up to 40 W, providing transient protection during voltage spikes.

Maximum power dissipation of 550 mW for efficient heat handling. ±2% voltage tolerance ensures precision voltage regulation. Compact 2-pin SOD-323 package suitable for surface mounting. Wide operating temperature range from -55°C to 150°C.

Low reverse leakage current and Zener impedance for stable operation. Meets automotive AEC-Q101 standard for enhanced reliability. Non-repetitive peak reverse power dissipation up to 40 W. Typical voltage temperature coefficient of 13 mV/K for temperature stability.

This Zener diode by Nexperia is ideal for use in electronic circuits requiring precise voltage regulation and transient voltage protection in industrial, automotive, and consumer electronics. Its small form factor and automotive qualification provide design flexibility and confidence for high-performance applications.
