| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | BZX384-B2V7,115 |
| Mount Type | Surface |
| Series | BZX384 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 to 75 V (E24 range) |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 2.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 100Ω |
| Typical Voltage Temperature Coefficient | -1.6mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +-2pct and approx. +-5pct |

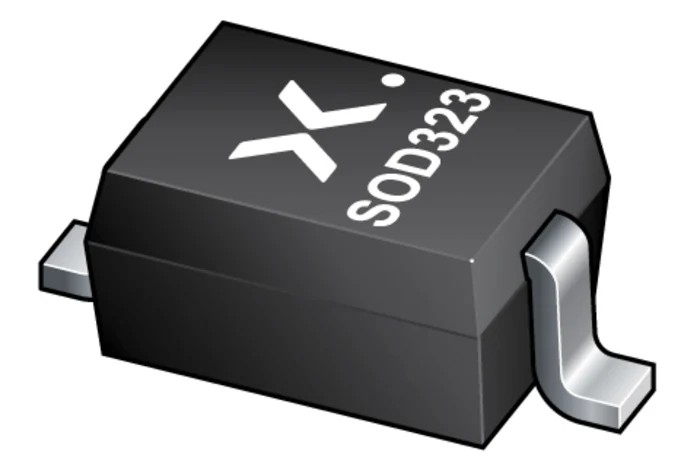

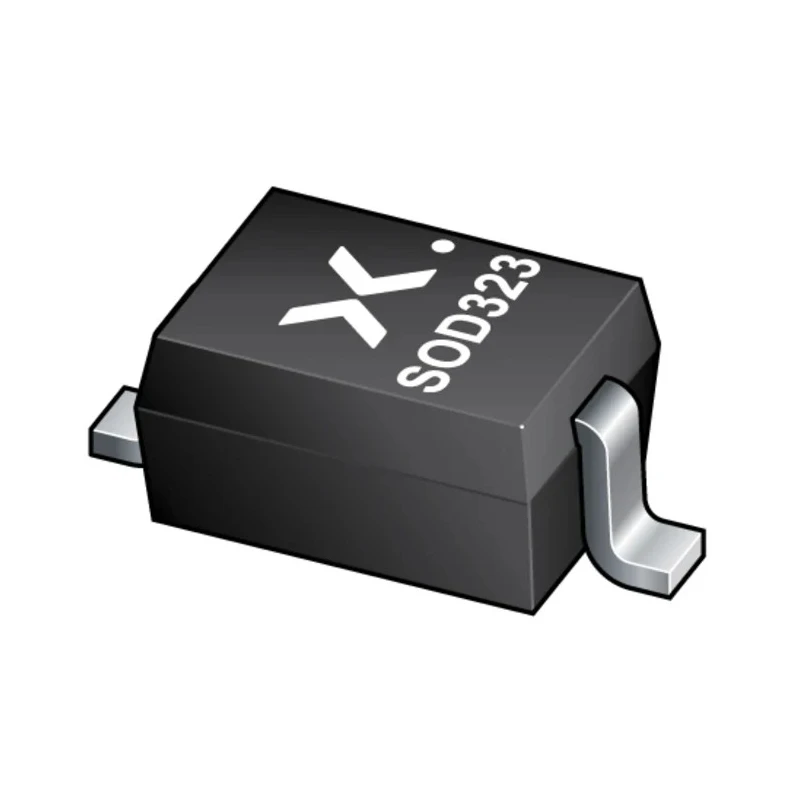

The Nexperia BZX384-B2V7,115 is a single Zener diode designed for voltage regulation and protection applications, rated at a nominal 2.7 volts. This diode is housed in a compact SOD-323 surface mount package measuring 2.7 mm in length and 1.1 mm in height, making it ideal for space-constrained electronic circuits.
With a maximum power dissipation of 300 mW, the diode delivers efficient voltage regulation with ±2% tolerance, ensuring consistent performance across varying operating conditions. It supports a test current of 5 mA and features a maximum Zener impedance of 100 ohms, contributing to precise voltage stabilization.
This component operates reliably over a broad temperature span from -65°C to 150°C and complies with the stringent automotive grade AEC-Q101 standard, suitable for automotive and industrial electronic controls. The diode's low maximum reverse leakage current of 20 μA and a non-repetitive peak reverse power dissipation of 40 W offer robust protection in transient conditions.
Typical applications include power supply voltage regulation, reference voltage generation, and transient voltage suppression in automotive, industrial, and consumer electronics environments. Its miniature SMD package optimizes board space without sacrificing device performance or reliability.
Single diode configuration for voltage regulation. Nominal Zener voltage: 2.7 V with 2% tolerance. Compact SOD-323 surface mount package. Maximum power dissipation of 300 mW. Operating temperature from -65°C to 150°C. AEC-Q101 automotive standard compliant.
Low reverse leakage current of 20 µA. Non-repetitive peak reverse power dissipation of 40 W.
Choose Nexperia BZX384-B2V7,115 Zener diode for reliable, precise voltage regulation in demanding electronic circuits. Explore more high-quality semiconductor components and devices at EnvMart for your industrial, automotive, and electronic design needs.
