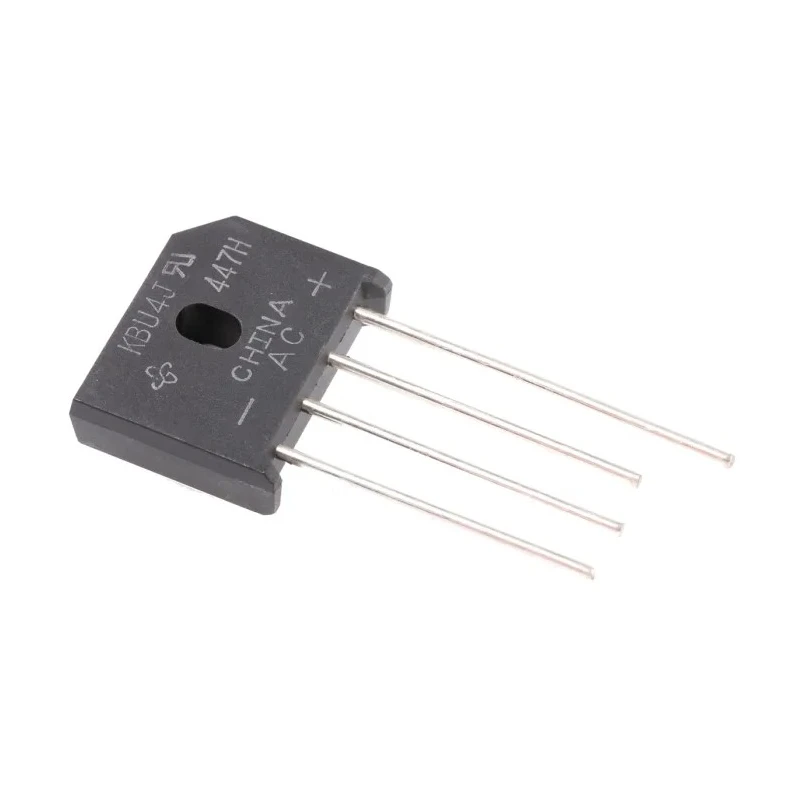

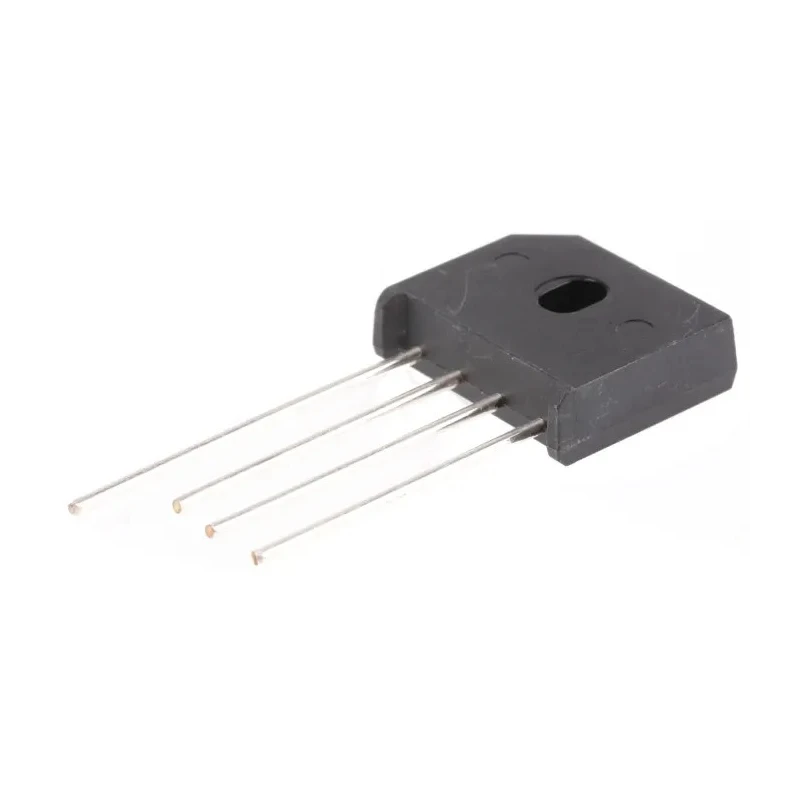

Vishay Bridge Rectifier 600 V 200 A 4-Pin Single Through Hole SIL PCB Mounting KBU4J-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 600 V 200 A 4-Pin Single Through Hole SIL PCB Mounting KBU4J-E4/51

Name: Vishay Bridge Rectifier 600 V 200 A 4-Pin Single Through Hole SIL PCB Mounting KBU4J-E4/51
Brand: Vishay
SKU: 214618
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	19.3mm
Length	23.7mm
Model	KBU4J-E4/51
Width	7.1mm
Mount Type	Through Hole
Series	KBU4
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	4A
Peak Forward Voltage Vf	1V

Key Features

The device supports a maximum operating temperature of 150°C ensuring durability.
It features a through-hole mount type designed for easy PCB soldering.
The package type is KBU with SIL PCB mounting, including a package centre hole for fixing.
The rectifier offers a peak forward voltage of 1 V and a forward current rating of 4 A.
The component supports a minimum operating temperature of -50°C for versatile industrial applications.
Designed with high surge current capability of 200 A peak non-repetitive forward surge current.
The bridge rectifier has dimensions of 23.7 mm length, 19.3 mm height, and 7.1 mm width for compact installation.
This device converts AC input into DC output using diode arrangement for full-wave rectification.

Product Description

Vishay KBU4J-E4/51 Bridge Rectifier is a high-performance electronic component designed for full-wave rectification applications in industrial, laboratory, and commercial power electronics. It features a 4-pin single configuration in a KBU SIL through-hole mount package that ensures reliable PCB mounting.

This bridge rectifier handles a peak reverse repetitive voltage of 600 V and is rated for a continuous forward current of 4 A. It is capable of withstanding a peak non-repetitive forward surge current of 200 A, enabling it to endure high load conditions.

Constructed for robust thermal performance, it operates reliably over a temperature range from -50°C to a maximum of 150°C. The compact dimensions (23.7 mm length, 19.3 mm height, and 7.1 mm width) optimize space on electronic boards.

The bridge rectifier converts alternating current (AC) into direct current (DC) with consistent polarity, suitable for power supplies, industrial machinery, and automation control systems.

The device supports a maximum operating temperature of 150°C ensuring durability. The through-hole mount package allows secure PCB installation. High peak forward voltage of 1 V facilitates efficient operation. Minimum operating temperature of -50°C expands usability in diverse environments.

Package includes fixing hole for stable mounting. High surge current capacity supports demanding electrical loads. Designed for SIL PCB mounting to minimize size while maximizing reliability. Provides isolation voltage of 1500 Vrms enhancing device safety.

Ideal for power rectification in electronic circuits, Vishay's KBU4J-E4/51 bridge rectifier is widely used in industrial and commercial applications, including power management and conversion in manufacturing and automation.
