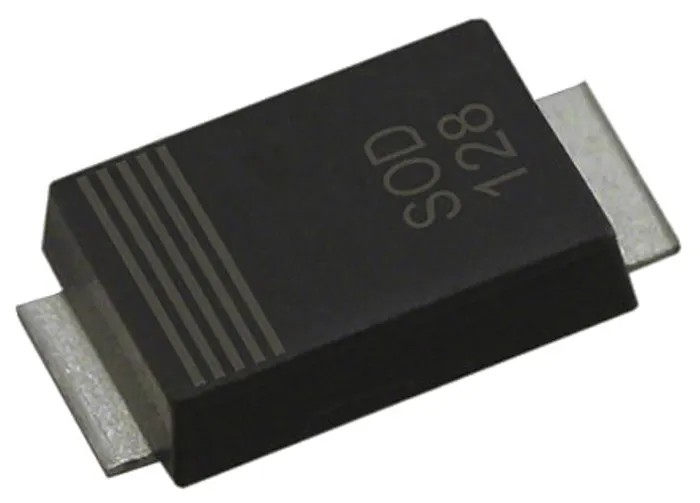

ROHM Fast Recovery 600 V 800 mA Single Diode Surface Mount SOD-128 RFN1LAM6STR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.95mm |
| Length | 3.7mm |
| Model | RFN1LAM6STR |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 800mA |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 15A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- The diode features low forward voltage for efficient operation.
- Maximum continuous forward current is 800 mA ensuring reliable current conduction.
- Peak reverse repetitive voltage rating is 600 V providing robust reverse voltage tolerance.
- Peak non-repetitive forward surge current is 15 A allowing short bursts of high current.
- Peak reverse recovery time is 35 ns supporting high-speed switching.
- Compact surface mount SOD-128 package has dimensions 3.7 mm length, 2.5 mm width, and 0.95 mm height.
- Maximum operating temperature is 150°C for industrial and commercial use.
- Pin count is 2 compatible with standard PCB layouts.
Product Description
The ROHM RFN1LAM6STR fast recovery diode is a single configuration semiconductor device suitable for high-performance electronic applications requiring reliable rectification with minimal losses. Encased in a compact SOD-128 surface mount package, this diode supports a maximum continuous forward current of 800 mA and peak reverse repetitive voltage of 600 V. Its low forward voltage drop of 1.15 V enhances efficiency in power circuits.
Featuring a peak reverse recovery time of 35 ns, the diode is designed for fast switching applications in industrial electronics, power supply circuits, and electronic component systems. The peak non-repetitive forward surge current of 15 A enables temporary current surges without damaging the device.
Dimensionally, the device measures 3.7 mm in length, 2.5 mm in width, and 0.95 mm in height, fitting compact PCB designs. It operates safely up to a maximum temperature of 150°C, making it suitable for demanding environmental conditions in manufacturing, HVAC controls, automotive electronics (non-automotive certified), and other commercial electronic equipment.
This diode does not carry special standards or automotive certifications but benefits from ROHM’s quality assurance in semiconductor manufacturing. Its 2-pin design simplifies integration into discrete semiconductor circuits or Schottky diode applications.
Low forward voltage minimizes power loss in circuits. Fast recovery time supports efficient switching in power rectifiers. SOD-128 surface mount package enables compact device layout. Robust operating temperature range supports industrial use.
High surge current tolerance ensures reliable short-term performance. Designed for discrete semiconductor applications in electronics and power systems. Suitable for Schottky diode rectification and fast recovery switching roles.
Compact dimensions allow for space-saving PCB designs. New condition semiconductor complying with quality standards. Peak reverse current is minimal at 1μA, ensuring low leakage.
For designers and engineers requiring reliable fast recovery diodes with compact sizing and stable performance, the ROHM RFN1LAM6STR is a robust choice. Its design caters to electronic manufacturing, power conversion, and semiconductor component integration. Explore similar semiconductor diode components and power rectifiers at EnvMart for various industrial and electronic needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the ROHM RFN1LAM6STR diode is 800 mA.
This model has a peak reverse repetitive voltage rating of 600 V.
The dimensions of the SOD-128 package are 3.7 mm in length, 2.5 mm in width, and 0.95 mm in height.
It can handle a peak non-repetitive forward surge current of 15 A.
The maximum operating temperature for the ROHM RFN1LAM6STR is 150°C.
The peak reverse recovery time for this diode is 35 ns.
The maximum forward voltage drop is 1.15 V, which enhances efficiency in power circuits.
This model features a 2-pin design, compatible with standard PCB layouts.
The ROHM RFN1LAM6STR is classified as a fast recovery rectifier.
This diode is suitable for high-performance electronic applications, including power supply circuits and industrial electronics.
The peak reverse current is minimal at 1 μA, ensuring low leakage.
The country of origin for the ROHM RFN1LAM6STR is India.
