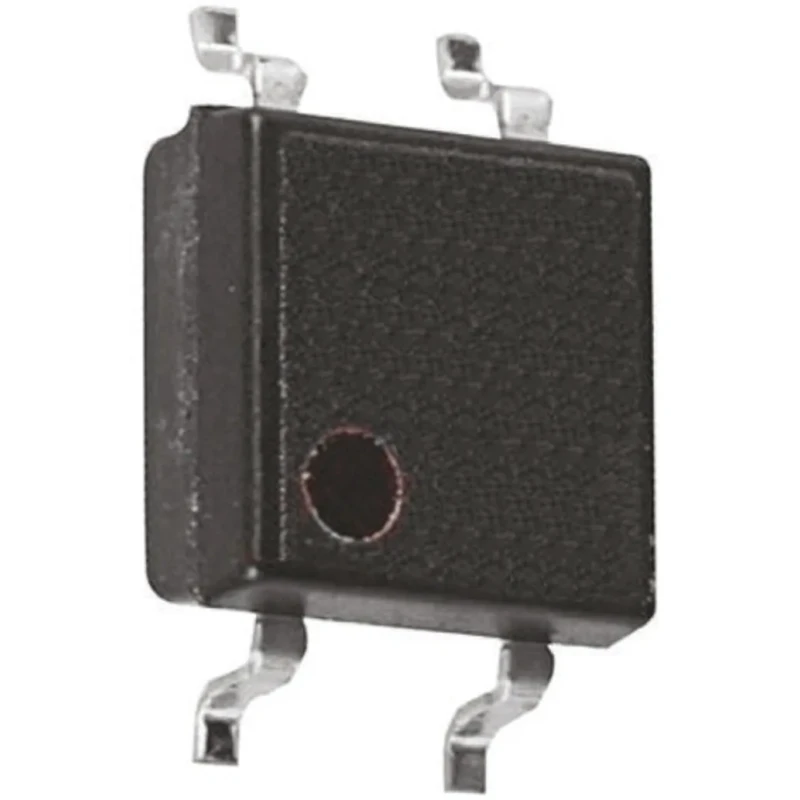

Panasonic GU SOP 1 Series Solid State Relay Surface Mount 100 mA Load 400 V Load 1.5V Control AQY214S

Panasonic AQY214S GU SOP 1 Series Solid State Relay is a highly reliable component designed for electronic applications requiring precise switching of low-level analog signals with a 100 mA maximum load current and 400 V maximum load voltage. Its surface mount SOP-4 package with measurements 4.3 mm length, 4.3 mm width, and 2.1 mm height enables compact circuit designs.

This relay operates within a control voltage range of 1.14 V minimum to 1.5 V maximum, offering low on-state resistance of 35 Ω and minimal off-state leakage current of 1 μA. The 1.5 pF capacitance characteristic ensures stable operation by minimizing electrical noise in sensitive signal paths.

It supports a wide operating temperature range from -40°C up to 85°C, meeting the requirements of industrial, commercial, and consumer electronic applications. The single-pole single-throw (SPST) contact configuration and photoMOS output type provide robust electrical isolation and efficient signal switching, making it ideal for automation, control, instrumentation, and signal conditioning applications.

Panasonic's GU SOP 1 series solid state relays meet RoHS standards and are manufactured in Japan, ensuring high quality and compliance with environmental regulations. This Solid State Relay is designed for surface mount applications with a compact 4.3 x 4.3 x 2.1 mm size.

Maximum load current rating of 100 mA ensures precise switching for low power circuits. Control voltage ranges between 1.14 V minimum and 1.5 V maximum for efficient signal operation. The relay offers a low on-state resistance of 35 Ω and minimal off-state leakage current of 1 μA.

Capacitance of 1.5 pF supports low noise operation in sensitive electronic applications. Operational temperature range spans from -40°C to 85°C for reliable performance in diverse environments. PhotoMOS output type provides galvanic isolation and noise reduction in control circuits.

This product is suitable for use in industrial automation, instrumentation, medical devices, telecommunications equipment, and other electronic control systems requiring reliable low-level switching in compact form factors.
