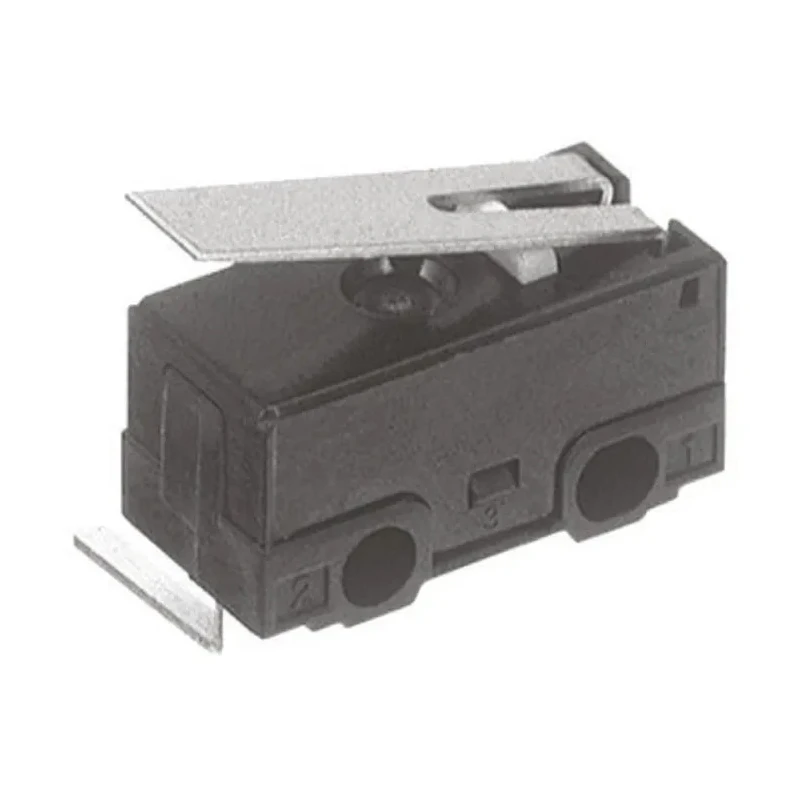

Panasonic Hinge Lever Micro Switch Left Angle PCB Terminal 1A 125 V AC 30 V DC SPDT AH18829-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Length | 8.5mm |
| Model | AH18829-A |
| Depth | 6mm |
| Width | 12.8mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Left Angle PCB Terminal |
| Standards/Approvals | CSA, UR, RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 1A |
| Operating Force | 0.25N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- Ultra miniature microswitch suitable for compact equipment.
- Hinge lever actuator ensures reliable mechanical operation.
- Left angle PCB terminals facilitate easy soldering.
- Rated for 1 ampere switch contact current with SPDT contact configuration.
- Operates at low force of 0.25 newtons for sensitive switching.
- Wide operating temperature range from -25°C to 85°C.
- Compact size dimensions of 12.8 x 6 x 8.5 mm save PCB space.
- Durable mechanical life of 1,000,000 operations for long service.
Product Description
Panasonic AH18829-A is an ultra miniature hinge lever micro switch featuring left angle PCB terminal connections. This compact switch is designed for precise, reliable switching in confined spaces with overall dimensions of 12.8 mm (width) x 6 mm (depth) x 8.5 mm (length).
Engineered for electrical applications requiring a switch contact current of 1 ampere, it supports contact voltages up to 125 V AC and 30 V DC. The SPDT (Single Pole Double Throw) contact configuration enables versatile circuit control. Operating force is a low 0.25 newtons, allowing sensitive actuation.
The device operates reliably across a temperature range of -25°C to 85°C, making it suitable for industrial, consumer electronics, automotive, and HVAC systems. The ultra miniature series AH1 assures long mechanical life with tested durability for 1,000,000 operations.
The integrally moulded terminal block prevents soldering flux ingress, and the flat terminal design facilitates easy soldering onto PCB surfaces. The switch meets CSA, UR safety standards and is compliant with RoHS environmental directives, ensuring quality and regulatory conformance.
Typical use cases include compact electronic equipment such as computer mice, mobile phone charger units, automotive key position detectors, and other applications requiring miniature, high precision micro switches.
Ultra miniature size optimized for space-saving designs. Hinge lever actuator type for precise control. Left angle PCB terminals for straightforward soldering. SPDT contacts provide flexible circuit switching. 1A maximum contact current rating.
Wide operating temperature range supporting tough environments. Mechanical durability of one million cycles. Certifications include CSA, UR and RoHS. Ideal for industrial, automotive, and consumer electronics applications.
Compact dimensions allow integration on dense PCB assemblies. Explore Panasonic Micro Switches in the Electronics & Electricals category at EnvMart for quality switches suited to your industrial and consumer needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating of this micro switch is 1 ampere.
This model has dimensions of 12.8 mm in width, 6 mm in depth, and 8.5 mm in length.
It operates reliably within a temperature range of -25°C to 85°C.
This micro switch features a hinge lever actuator type for precise control.
The contact configuration of this switch is SPDT (Single Pole Double Throw).
It supports contact voltages up to 125 V AC and 30 V DC.
The mechanical life of this switch is rated for 1,000,000 operations.
It features left angle PCB terminals, which facilitate easy soldering.
This micro switch meets CSA, UR safety standards and is compliant with RoHS environmental directives.
The operating force required for actuation is 0.25 newtons.
Typical applications include compact electronic equipment such as computer mice, mobile phone chargers, and automotive key position detectors.
This model belongs to the ultra miniature series AH1.
