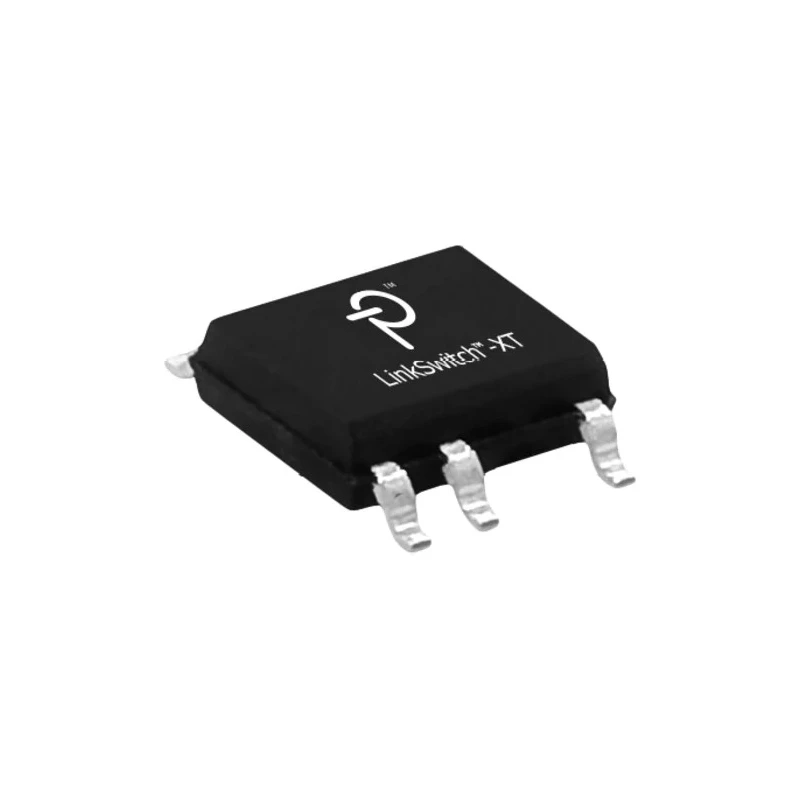

Power Integrations High Side 1 Off Liner Power Switch IC 8-Pin Surface Mount LNK364GN

Power Integrations LNK364GN is a high side, off liner power switch integrated circuit designed for efficient power management applications. The device incorporates a 700 V power MOSFET, an oscillator, a simple ON/OFF control scheme, and additional protective features such as cycle-by-cycle current limit and thermal shutdown circuitry all integrated onto a monolithic IC.

This 8-pin surface mount power switch IC offers a compact footprint with dimensions of 9.83mm length, 6.6mm width, and 3.68mm height. It supports a power rating of 6 watts and operates with an operating current of 750 mA. The device features a low switch on resistance (RdsOn) of 45 ohms, contributing to high efficiency and reduced power loss.

The LNK364GN includes fully integrated auto-restart for short circuit and open loop protection, ensuring reliable operation in safety-critical industrial and electronic applications. Frequency jittering reduces electromagnetic interference, and the device meets high-voltage creepage requirements between the drain and all other pins, both on the PCB and within the package.

Its universal input range capability allows it to function in worldwide power environments without the need for loop compensation, simplifying design and improving versatility. Integrates a 700 V MOSFET and oscillator for streamlined power switching.

Automatic restart protects against short circuits and open loop faults. Simple ON/OFF control eliminates the need for complex compensation. Compact 8-pin surface mount outline for space-efficient PCB design. Wide operating temperature range from -40°C to 150°C for diverse environments.

Low RdsOn of 45Ω minimizes conduction losses. Frequency jittering reduces EMI for compliance with emission standards. Designed for industrial, laboratory, and power management applications.

The LNK364GN is suitable for use in power supply systems, industrial automation, and electronic control devices, offering a robust and efficient switching solution. It is ideal for applications requiring reliable power conversion and protection mechanisms under demanding conditions.

Country of Origin: China. Explore the extensive range of power management integrated circuits in EnvMart to find solutions best suited for your electronic design and industrial requirements.
