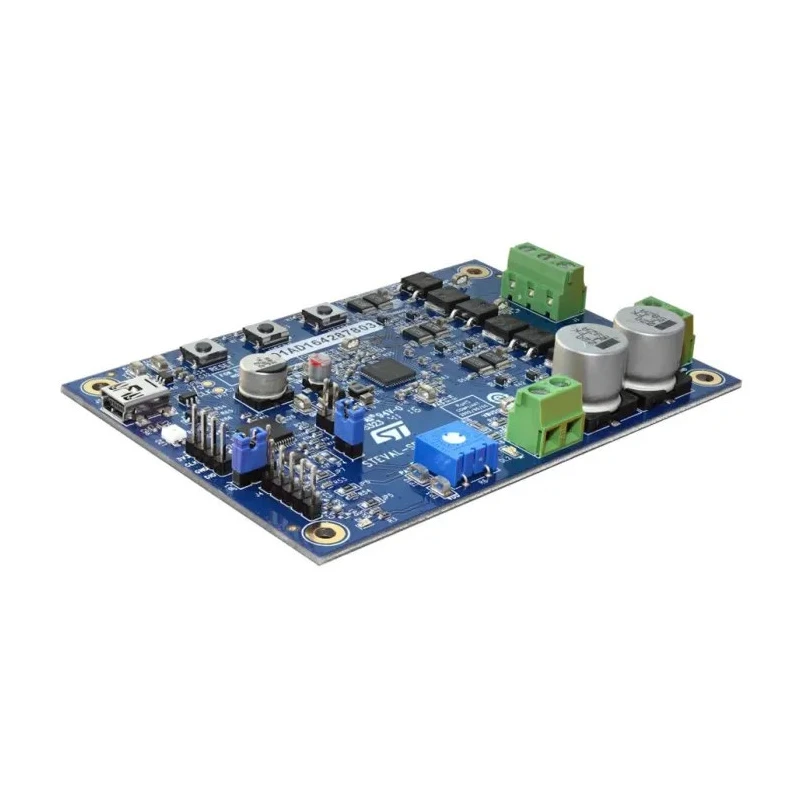

STMicroelectronics Advanced BLDC Controller Evaluation Board for STSPIN32F0, 48MHz MCU, 14Arms Max Motor STEVAL-SPIN3201

STMicroelectronics STEVAL-SPIN3201 is a highly advanced Brushless DC (BLDC) Motor Driver Evaluation Board specifically designed for motor control engineers and developers seeking a robust platform for STSPIN32F0-based motor applications. This board integrates the powerful STSPIN32F0 motor controller with embedded STM32F0 MCU, offering a versatile solution for both sensored and sensorless vector control including field-oriented control (FOC) algorithms and 3-shunt sensing configurations.

On the technical front, the STEVAL-SPIN3201 features a 48MHz STM32 Cortex-M0 microcontroller with 32KB Flash memory and 4KB SRAM, providing high-performance operations and swift processing for demanding motor control tasks. The board incorporates 3 x High/Low-Side 600mA MOSFET gate drivers with bootstrap diodes and cross-conduction prevention mechanisms, ensuring efficient and safe switching of MOSFETs.

Power management on the board is addressed with a +3.3V DC-DC buck converter regulator and a +12V LDO linear regulator, making it suitable for diverse industrial and laboratory motor experimentation. For signal conditioning, four integrated operational amplifiers ensure accurate feedback processing. The hardware supports both digital and Hall Encoder input circuits, enabling flexible feedback and precision control. Overcurrent protection is delivered via a programmable comparator, further improving system safety.

The maximum motor output current is 14Arms, courtesy of 6 x STD140N6F7 60V 80A MOSFET devices arranged as three half-bridges, making it reliable for high-power applications. On-board ST-LINK/V2-1 debug features based on STM32F103CB MCU allow seamless development and troubleshooting. Current sensing is accomplished through a 3-shunt circuit, supporting advanced vector control methodologies.

User interaction is facilitated by a 100kΩ potentiometer for manual speed adjustment, two pushbuttons with LEDs for operation modes, a reset pushbutton, and indicator LEDs for power and ST-LINK status. The USB mini-B connector enables host PC connection for programming and monitoring.

Compatible with STM32 PMSM FOC Software Development Kit (STSW-STM32100), the STEVAL-SPIN3201 is ideal for motor controller research, robotics, industrial automation, laboratory test rigs, and educational development platforms. Screw connectors are provided for motor windings and +8 to +45V DC motor power supply connections, making board installation straightforward in prototype and test environments.

Features 48MHz STM32 Cortex-M0 MCU with 32KB Flash memory and 4KB SRAM. Supports sensored or sensorless vector control and FOC algorithms. 3 x High/Low-Side 600mA MOSFET gate drivers & cross-conduction prevention. 14Arms max motor current with robust MOSFET design.

Built-in ST-LINK debug interface for development and diagnostics. Digital and Hall Encoder input for flexible motor feedback. Manual speed control via potentiometer and pushbutton/LED interface. USB mini-B port for PC connection and programming.

STM32 PMSM FOC Software Development Kit compatibility. Screw connectors for motor windings and power supply (+8 to +45VDC).
