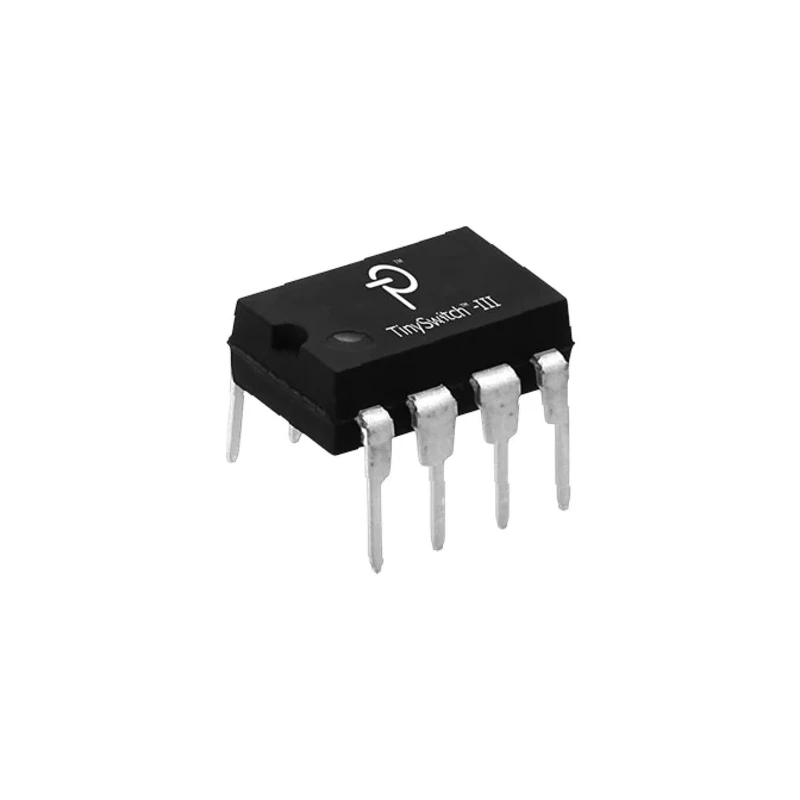

Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-C 11.5W 560mA TNY275PN
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Power Integrations |
| Height | 3.68mm |
| Length | 9.83mm |
| Model | TNY275PN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Number of inputs | 1 |
| Series | TNY275 |
| Power Rating | 11.5W |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP-C |
| Minimum Operating Temperature | -40°C |
| Operating Current | 560mA |
| Number of outputs | 5 |
| Pin Count | 8 |
| Switch On Resistance RdsOn | 33Ω |
| Self-biased | no bias winding or bias components |
Key Features
- Incorporates a 700 V power MOSFET and oscillator for efficient power switching.
- Simple ON/OFF control scheme requiring no loop compensation.
- Selectable current limit enhances power delivery and overload protection.
- Self-biased design eliminates the need for bias winding or components.
- Compact through-hole DIP-C package ensures easy mounting and integration.
- Wide operating temperature range from -40°C to 150°C for reliable performance.
- Pin out configuration simplifies heatsinking and PCB design.
- Designed for industrial electronic power management applications.
Product Description
Power Integrations TNY275PN is a high side off liner power switch integrated circuit housed in an 8-pin DIP-C package. It delivers a power rating of 11.5 watts and operates at a current of 560mA. This IC incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit selectable by BP/M capacitor value, and thermal shutdown circuitry. It uses a simple ON/OFF control scheme eliminating the need for loop compensation, providing a flexible design solution with reduced system cost and enhanced power capability.
The device's self-biased architecture requires no bias winding or external bias components, simplifying the overall circuit design. Its frequency jittering feature helps reduce electromagnetic interference (EMI) filter costs, while the selectable current limit maximizes MOSFET and magnetics power delivery and minimizes overload power. The compact 8-pin DIP-C through-hole package facilitates mounting and effective heatsinking on printed circuit boards. The unit operates reliably across a wide temperature range from -40°C to +150°C, making it suitable for a range of industrial electronic power management systems.
Power Integrations TNY275PN finds applications in power supplies, industrial automation, and other electronic devices requiring robust, efficient power switching. It supports up to 5 output connections with a single input, making it versatile for varied power switching needs.
Incorporates 700 V power MOSFET and oscillator for efficient switching. Simple ON/OFF control with no loop compensation required. Selectable current limit for optimal power delivery and protection. Self-biased design with no bias winding or components needed.
Frequency jittering reduces electromagnetic interference filter costs. Compact 8-pin DIP-C through-hole package for easy mounting. Wide operating temperature range of -40°C to 150°C for reliability. Pin configuration optimized for simplified heatsinking and PCB design.
Suitable for industrial, power management, and switching power supply applications. It provides an effective, reliable solution for modern power switch design challenges. Explore more Power Switch ICs and related power management components at EnvMart for industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TNY275PN has a power rating of 11.5 watts.
The maximum operating temperature for this model is 150°C.
This power switch IC supports up to 5 output connections with a single input.
The operating current of this unit is 560mA.
The TNY275PN is housed in a DIP-C package type.
This model has a pin count of 8.
The switch on resistance (RdsOn) for the TNY275PN is 33Ω.
The height of this unit is 3.68mm and the width is 6.6mm.
This model uses a through-hole mounting type.
No, the TNY275PN features a self-biased design that eliminates the need for bias winding or external bias components.
The minimum operating temperature for the TNY275PN is -40°C.
The TNY275PN is suitable for power supplies, industrial automation, and other electronic devices requiring efficient power switching.
