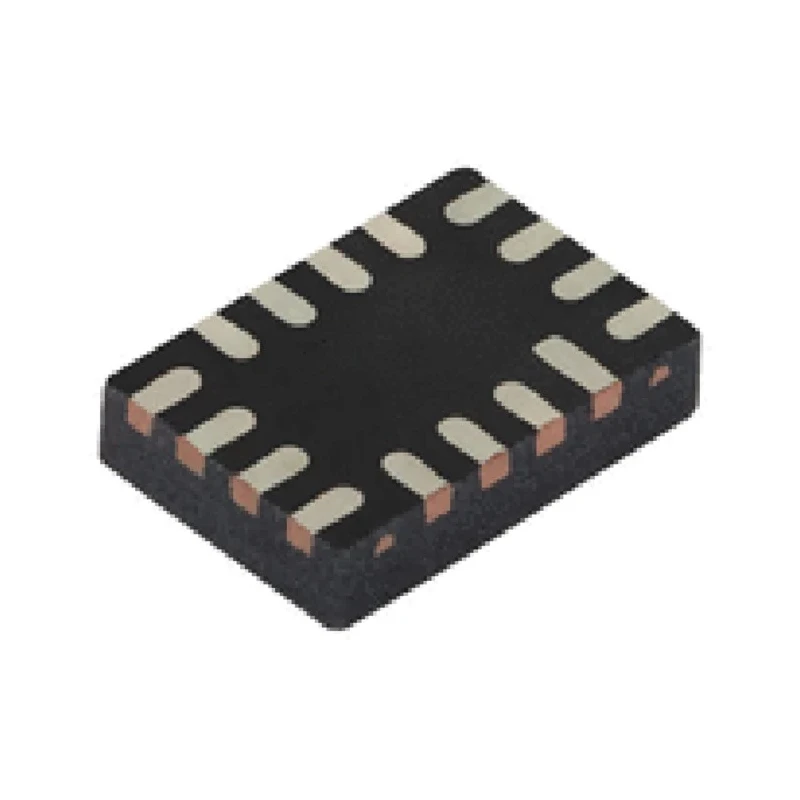

Vishay Analogue Switch 4 DPDT Multiplexer Demultiplexer 16-Pin QFN DG2788ADN-T1-GE4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 550μm |
| Length | 2.7mm |
| Model | DG2788ADN-T1-GE4 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | DG2788A |
| Configuration | DPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 0.6Ω |
| High bandwidth | 338 MHz |
Key Features
- Operates from a single 1.8 V to 5.5 V power supply.
- Switches conduct equally well in both directions, supporting rail-to-rail signal switching.
- Low on-state resistance of 0.6 Ω ensures minimal signal loss.
- Break-before-make switching prevents signal clashes during channel transition.
- High bandwidth performance up to 338 MHz enables high-frequency applications.
- Low parasitic capacitance and highly matched switch resistance maintain signal integrity.
- Surface mount QFN package measures 2.7 mm length, 1.9 mm width, and 550 μm height.
- Operating temperature range from -40°C to 85°C.
Product Description
The Vishay DG2788ADN-T1-GE4 Analogue Switch is a highly efficient 4-channel double-pole double-throw (DPDT) switch designed for multiplexer and demultiplexer applications. Packaged in a compact 16-pin QFN, it operates reliably across a single power supply range of 1.8 V to 5.5 V, suitable for a variety of electronic circuit designs.
The device features switches that conduct with equal efficiency bidirectionally, allowing seamless signal routing from rail to rail. Its low and flat on resistance of 0.6 Ω minimizes signal distortion and power loss, critical for maintaining signal integrity in high-performance circuits. Break-before-make switching design ensures that switches do not short-circuit during channel changeover, protecting sensitive components.
With a high bandwidth of 338 MHz and low parasitic capacitance, the DG2788ADN-T1-GE4 supports high-frequency analog signals, making it ideal for telecommunications, signal processing, and instrumentation applications in industrial, laboratory, and commercial electronic systems. It also features low control logic threshold voltages for reliable digital interfacing.
The device body measures just 2.7 mm in length, 1.9 mm in width, and 550 μm in height, enabling space savings on dense printed circuit boards. It is rated for operating temperatures from -40°C to 85°C, suitable for use in demanding environmental conditions. The switch complies with RoHS and Pb-Free standards, affirming its environmental safety.
Operates across a 1.8 V to 5.5 V single power supply. Uniform bidirectional conduction for versatile signal routing. Low on-state resistance of 0.6 Ω for high fidelity signal handling. Break-before-make switching avoids signal conflicts.
High-frequency bandwidth of 338 MHz for advanced analog circuits. Compact 16-pin QFN surface mount package. Wide operating temperature range from -40°C to +85°C. RoHS and Pb-Free compliant for environmental safety. Ideal for multiplexing, demultiplexing, and analog signal switching.
Explore the Vishay range in analogue and multiplexer ICs at EnvMart for advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates from a single power supply range of 1.8 V to 5.5 V.
The maximum on-state resistance is 0.6 Ω, which helps minimize signal loss.
It has a high bandwidth performance of up to 338 MHz, suitable for high-frequency applications.
The package measures 2.7 mm in length, 1.9 mm in width, and 550 μm in height.
It features break-before-make switching, which prevents signal clashes during channel transitions.
The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.
Yes, it complies with RoHS and Pb-Free standards, affirming its environmental safety.
It supports 4 channels, configured as a double-pole double-throw (DPDT) switch.
The configuration type is DPDT, which stands for double-pole double-throw.
The pin count for this model is 16 pins.
It is suitable for multiplexing, demultiplexing, and analog signal switching in various electronic systems.
It uses surface mount technology, allowing for compact integration on circuit boards.
