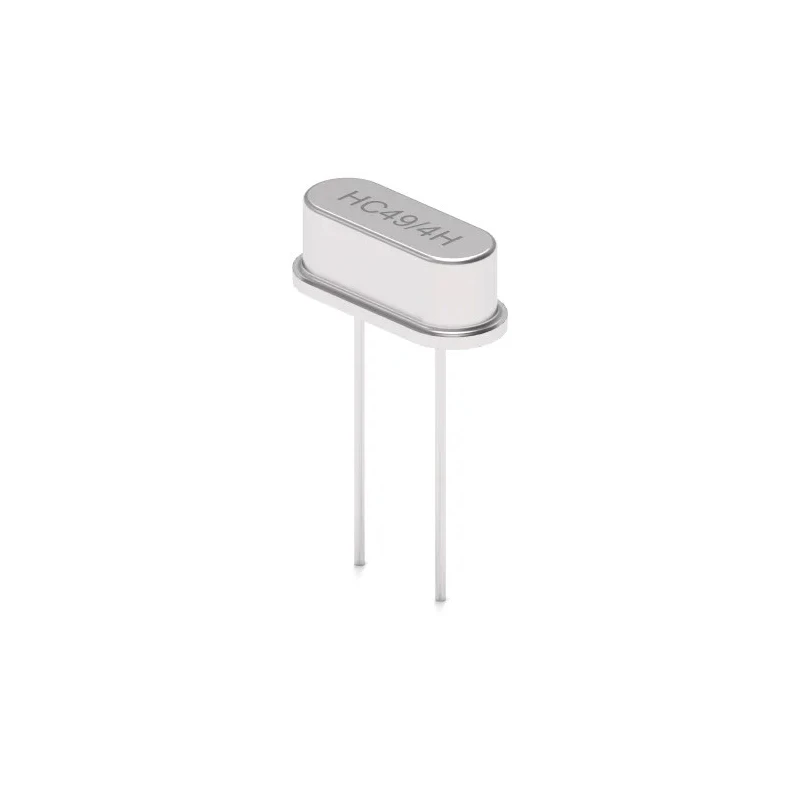

IQD 6 MHz Crystal Unit ±30 ppm HC-49 Through Hole 2-Pin 11.05 x 4.7 x 4.1 mm LFXTAL003132B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.1mm |
| Length | 11.05mm |
| Model | LFXTAL003132B |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 6MHz |
| Load Capacitance | 30pF |
| Series Resistance | 60Ω |
Key Features
- Operates at a standard frequency of 6 MHz with a tolerance of ±30 ppm.
- Features a hermetically sealed HC-49 package with resistance welded glass-to-metal seals.
- Designed for through-hole mounting with 2 pins for secure PCB integration.
- Load capacitance is 30 pF, ensuring stable oscillator performance.
- Operates reliably within temperature range from -10°C to 60°C.
- Series resistance is rated at 60 Ω for optimal signal integrity.
- RoHS compliant ensuring environmental safety and industrial standards adherence.
- Suitable for automotive and industrial electronic applications requiring frequency precision.
Product Description
IQD LFXTAL003132B 6 MHz Crystal Unit is a high-precision frequency control component designed for electronic circuits requiring stable oscillation. This model features a hermetically sealed HC-49 package, ensuring protection against environmental factors and maintaining performance integrity over time.
The crystal unit operates at a standard frequency of 6 MHz with a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, making it suitable for sensitive electronic applications. Its through-hole mounting type with 2 pins simplifies integration into printed circuit boards.
The device measures 11.05 mm in length, 4.7 mm width, and 4.1 mm height, making it compact and ideal for space-constrained designs. It has a load capacitance of 30 pF and a series resistance of 60 Ω, parameters critical for ensuring consistent oscillator output.
This crystal unit operates reliably within a temperature range of -10°C to 60°C and is RoHS compliant, thereby meeting key environmental and safety standards. It is not rated for automotive standards but is effective for a broad range of industrial electronic applications.
Operates at a standard frequency of 6 MHz with ±30 ppm tolerance. Hermetically sealed HC-49 package with glass-to-metal seals. Through-hole mount with 2 pin configuration. Compact dimensions suitable for PCB installation.
Load capacitance of 30 pF for stable oscillation. Operational temperature range from -10°C to 60°C. Series resistance rated at 60 Ω. RoHS certified for environmental compliance. Suitable for various industrial electronic applications.
This IQD Crystal Unit is ideal for precision frequency generation in industrial, electronic manufacturing, and laboratory instrumentation environments. Its reliable performance and robust packaging make it a trusted choice for engineers designing oscillator circuits. Discover more products like this in our Electronics Components catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal unit operates at a standard frequency of 6 MHz.
It has a frequency tolerance of ±30 ppm.
The load capacitance is 30 pF, which is essential for stable oscillator performance.
This model measures 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height.
It is designed for through-hole mounting with a 2-pin configuration for secure PCB integration.
The series resistance is rated at 60 Ω, which helps maintain optimal signal integrity.
It operates reliably within a temperature range of -10°C to 60°C.
Yes, it is RoHS compliant, ensuring it meets environmental safety and industrial standards.
The package type is HC-49, which features hermetically sealed glass-to-metal seals.
It is suitable for various industrial electronic applications requiring frequency precision.
The country of origin for this crystal unit is India.
The frequency stability is rated at ±50 ppm, making it suitable for sensitive electronic applications.
