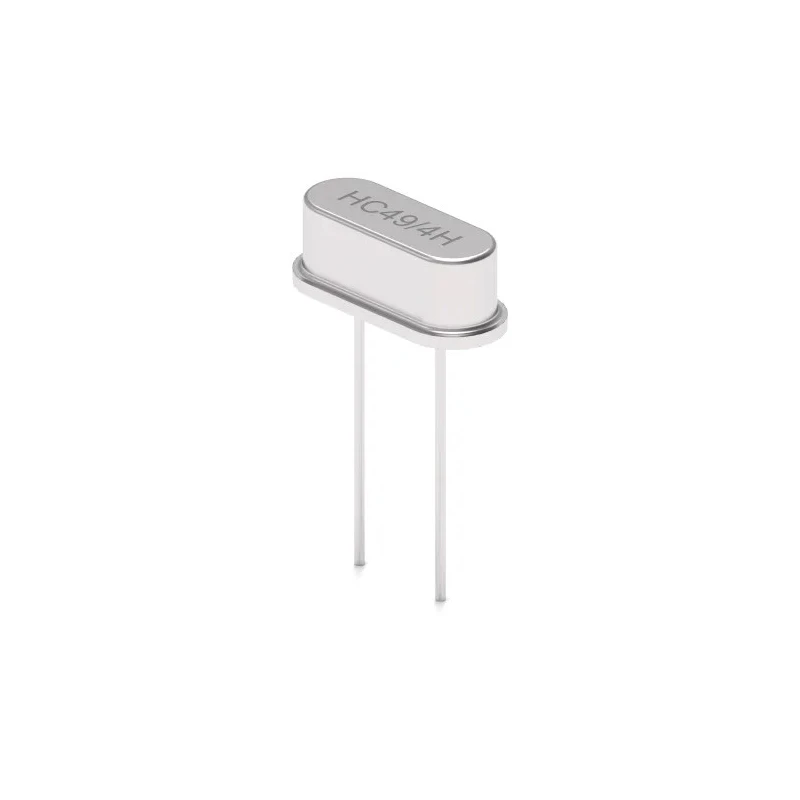

IQD 14.7456 MHz Crystal Unit ±30 ppm Load Capacitance 30pF HC-49 Through Hole Mount 2-Pin LFXTAL003224B

The IQD LFXTAL003224B 14.7456 MHz Crystal Unit is designed for precise frequency generation in electronic circuits, ideal for applications requiring stable oscillation with a frequency tolerance of ±30 ppm.

This crystal unit features a standard HC-49 package and through-hole mount with two pins, making it suitable for various industrial and electronic component applications. Its compact size with dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height allows for efficient circuit board space utilization.

Designed to operate in a temperature range from -10°C to 60°C, it offers consistent performance with a series resistance of 40 Ω. The 30pF load capacitance optimizes the resonant frequency for typical electronics usage.

Manufactured with industry-standard resistance welding and hermetic sealing in an inert atmosphere using glass-to-metal seals, this unit ensures reliability and longevity in demanding environments. It complies with RoHS standards, making it environmentally compliant.

The HC-49 package provides mechanical strength and robust housing. Two-pin through-hole configuration allows straightforward PCB assembly. Hermetically sealed design protects the crystal element from contamination and damage.

Frequency stability of ±50 ppm over operating conditions supports precision timing applications. Suitable for applications in industrial, laboratory, consumer electronics, and telecommunications sectors. Ideal for frequency control, timing circuits, and oscillator designs in electronic devices.

Reliable operation supports designSpark and other PCB design tools compatibility.

This IQD crystal unit balances performance and industry standards, serving as a critical component in oscillators and frequency control systems. For more detailed technical documents and CAD models, refer to authorized component libraries and technical resources.
